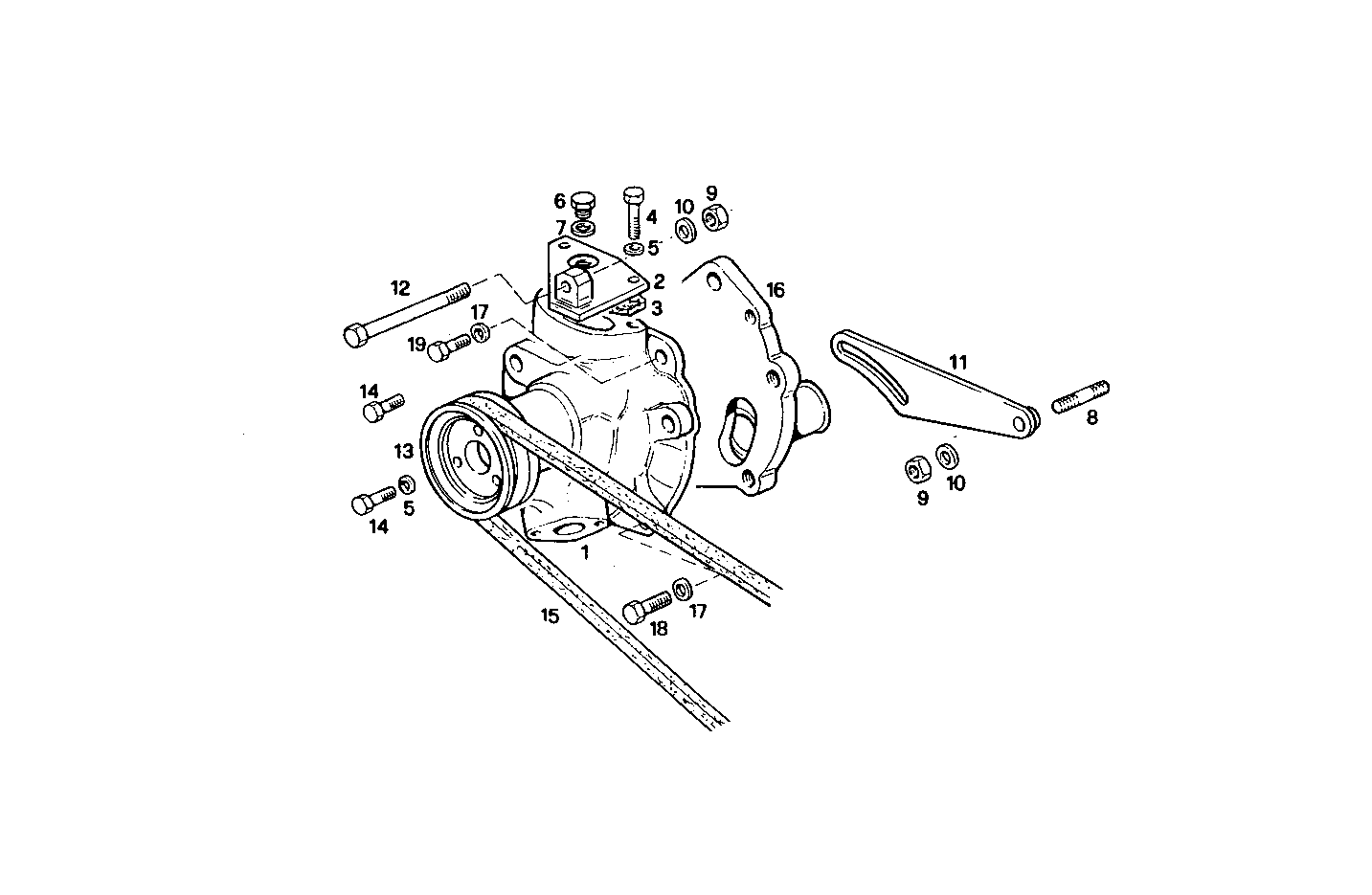

AUXILIARY WATER PUMP
8460SRi11.00A004 — 8460SRi11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108385 | WATER PUMP WATER PUMP | 1 | |
| 2 | 8018264 | COVER COVER | 1 | |
| 3 | 4767560 | GASKET GASKET | 1 | |
| 4 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 6 | 11903111 | LOCK PLUG LOCK PLUG | 1 | |
| 7 | 4858606 | GASKET GASKET | 1 | |
| 8 | 13449721 | STUD STUD | 1 | |
| 9 | 17157221 | NUT NUT | 2 | |
| 10 | 4513436 | SUPPORT RING SUPPORT RING | 2 | |
| 11 | 8018265 | BELT TENSIONER BELT TENSIONER | 1 | |
| 12 | 15972621 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 8018263 | PULLEY PULLEY | 1 | |
| 14 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 15 | 500385852 | ALTERNATOR BELT ALTERNATOR BELT | 1 | |
| 16 | 8100617 | COVER COVER | 1 | |
| 17 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 18 | 11343824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 19 | 11227924 | SCREW SCREW | 1 |
