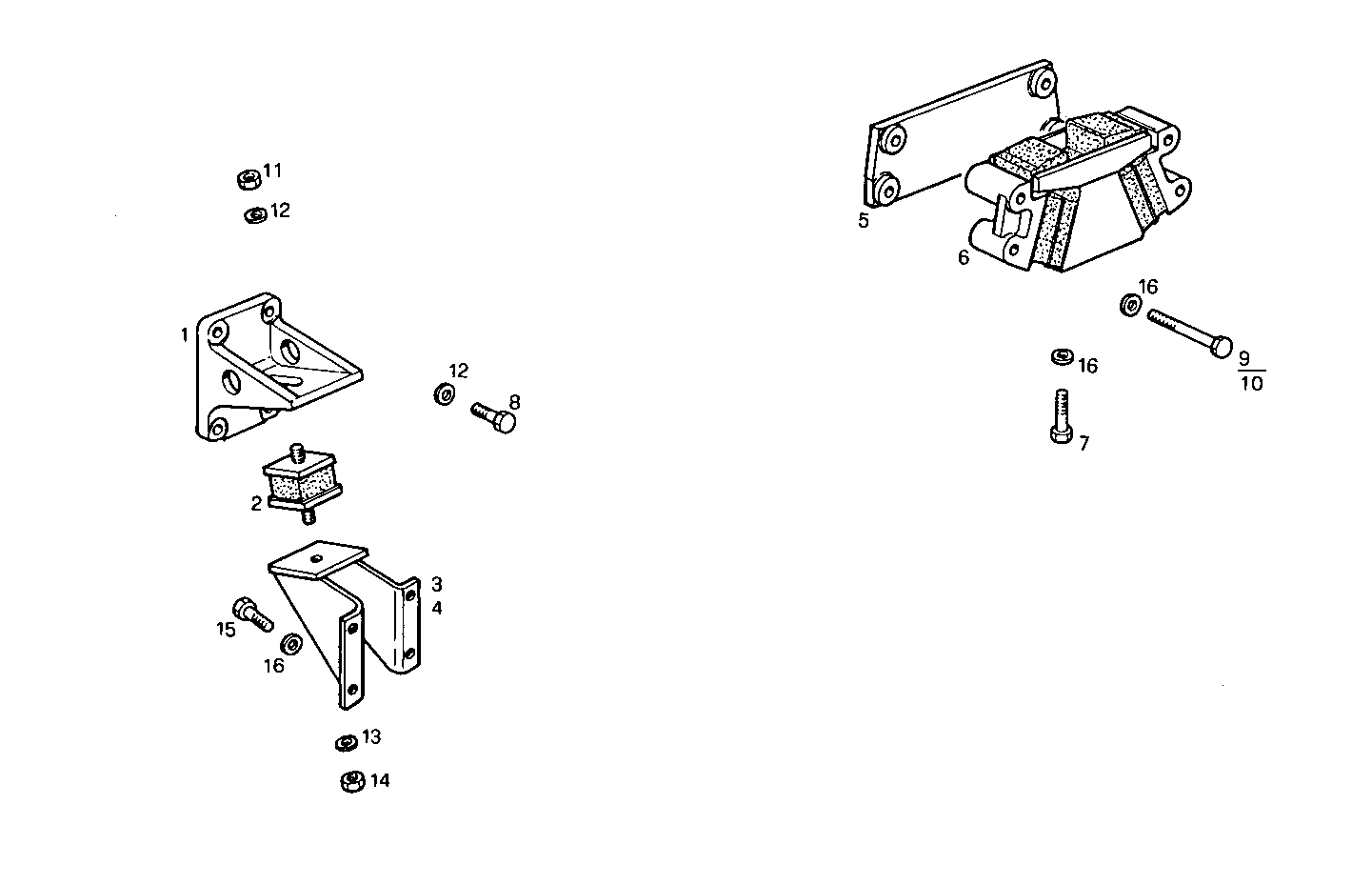

ENGINE SUSPENSION
8460SRi11.00A004 — 8460SRi11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98159388 | ENGINE SUSPENSION ENGINE SUSPENSION | 2 | |
| 2 | 61594486 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 3 | 98159453 | SUPPORT SUPPORT | 1 | |
| 4 | 98159452 | SUPPORT SUPPORT | 1 | |
| 5 | 98167204 | SHIM SHIM | 2 | |
| 6 | 98167070 | RUBBER PAD RUBBER PAD | 2 | |
| 7 | 98206132 | SCREW SCREW | 4 | |
| 8 | 98225500 | SCREW SCREW | 16 | |
| 9 | 98169290 | SCREW SCREW | 4 | |
| 10 | 98169291 | SCREW SCREW | 4 | |
| 11 | 98255342 | NUT NUT | 8 | |
| 12 | 98159457 | WASHER WASHER | 16 | |
| 13 | 98201398 | WASHER WASHER | 2 | |
| 14 | 98104955 | NUT NUT | 4 | |
| 15 | 98255697 | SCREW SCREW | 8 | |
| 16 | 98156986 | WASHER WASHER | 12 |
