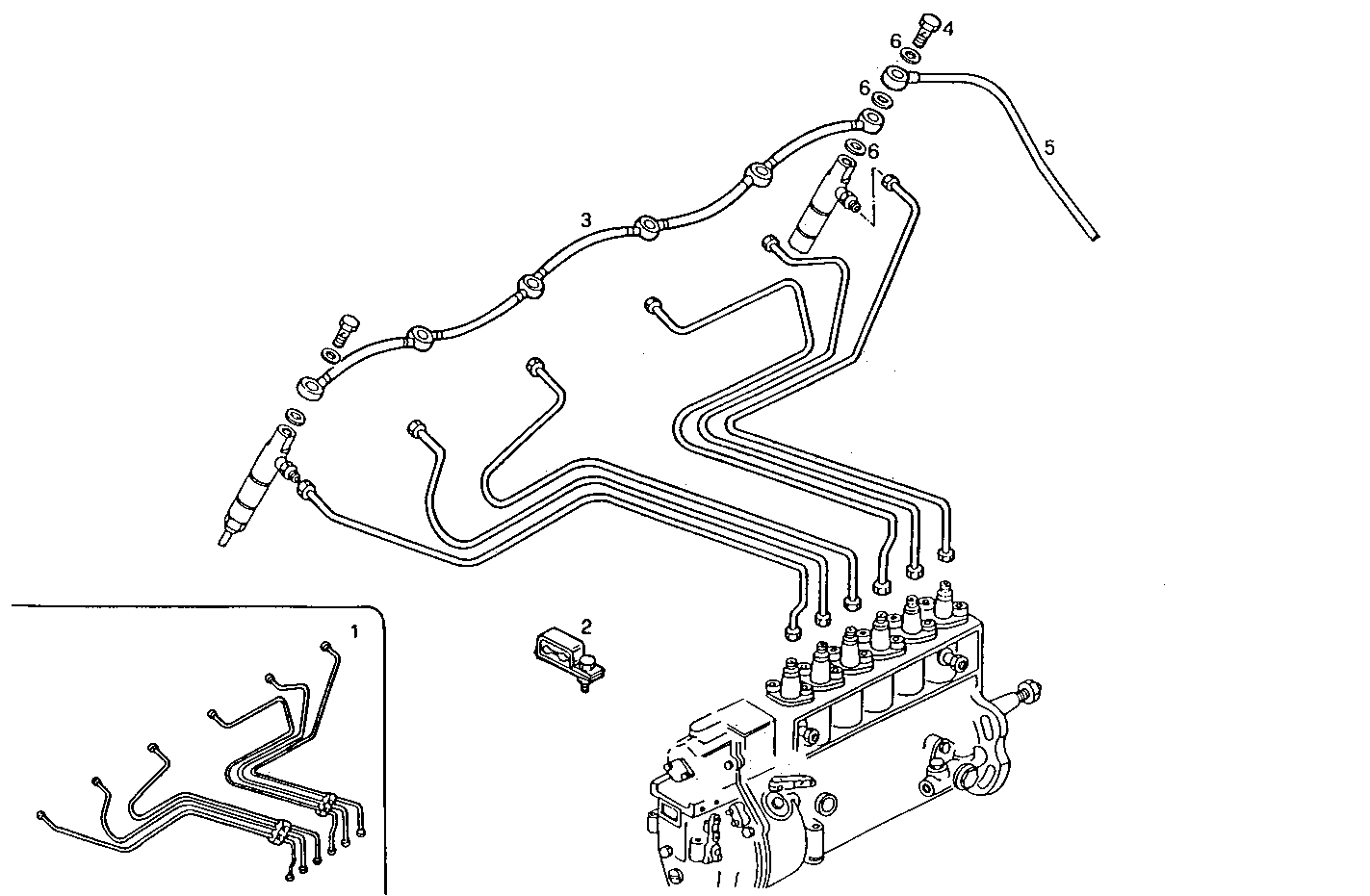

INJECTION PIPES
8460SRM28.12 — 8460SRM28
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009618 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 8010368 | RETAINER RETAINER | 2 | |
| 3 | 61317897 | FUEL LINE FUEL LINE | 1 | |
| 4 | 61316009 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 5 | 8010728 | FUEL LINE FUEL LINE | 1 | |
| 6 | 4858605 | WASHER WASHER | 3 |
