TURBOCHARGER
8460SRM28.12 — 8460SRM28

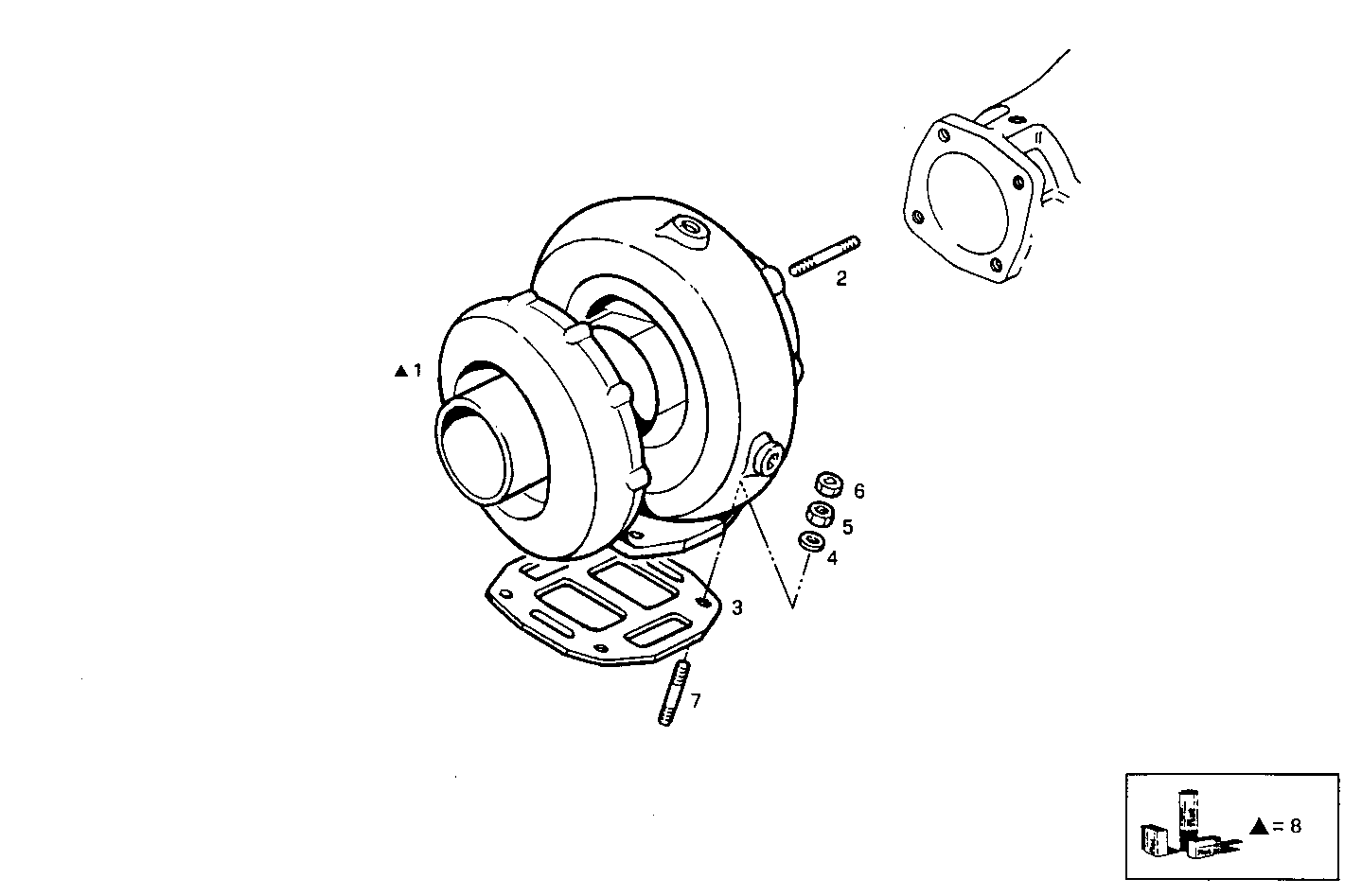

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110129 | WATER COOL.TURBOCHARGER WATER COOL.TURBOCHARGER | 1 | |
| 2 | 16729424 | STUD STUD | 4 | |
| 3 | 8008697 | GASKET GASKET | 1 | |
| 4 | 17095104 | WASHER WASHER | 4 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 6 | 16979731 | NUT NUT | 4 | |
| 7 | 13449824 | STUD STUD | 4 | |
| 8 | 8009770 | OIL LINE OIL LINE | 1 |
