MARINE GEAR TWIN DISC MG 507 A2
8460SRM28.13 — 8460SRM28

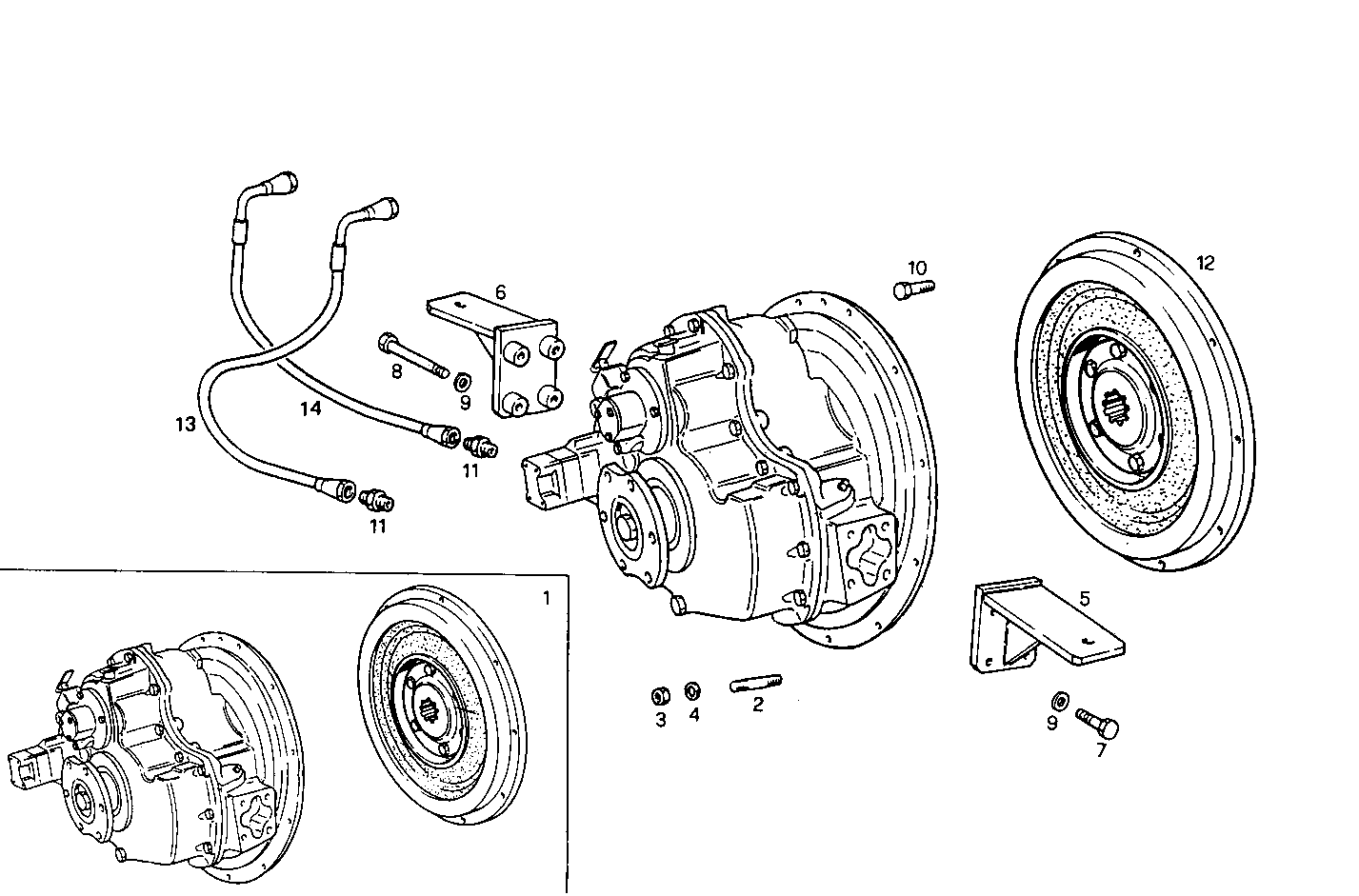

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023578 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 13543721 | STUD STUD | 12 | |
| 3 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 8010916 | SUPPORT SUPPORT | 1 | |
| 6 | 8010917 | SUPPORT SUPPORT | 1 | |
| 7 | 11127521 | SCREW SCREW | 4 | |
| 8 | 15219921 | SCREW SCREW | 4 | |
| 9 | 17092171 | WASHER WASHER | 8 | |
| 10 | 14274421 | LOCKING SCREW LOCKING SCREW | 8 | |
| 11 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 12 | 8023601 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 13 | 4936603 | OIL HOSE OIL HOSE | 1 | |
| 14 | 4935779 | HOSE HOSE | 1 |
