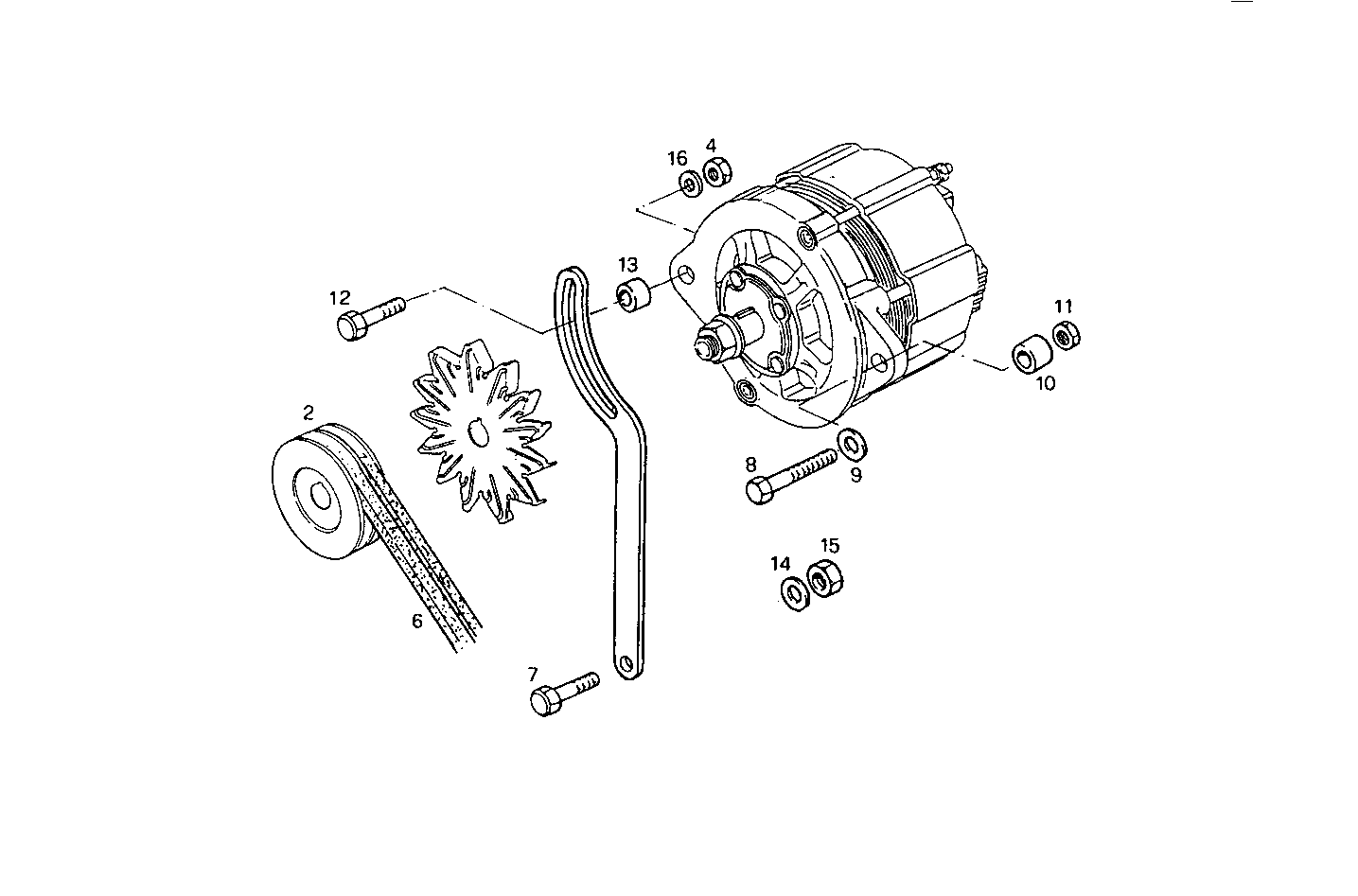

SELF-REGULATED ALTERNATOR
8460SRM28.13 — 8460SRM28
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98424453 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 98475244 | PULLEY PULLEY | 1 | |
| 3 | 8020683 | ALTERNATOR ALTERNATOR | 1 | |
| 4 | 17157221 | NUT NUT | 1 | |
| 5 | 8019531 | WIRE/CABLE WIRE/CABLE | 1 | |
| 6 | 8015777 | V-BELT V-BELT | 1 | |
| 7 | 15540921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16609124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17095104 | WASHER WASHER | 1 | |
| 10 | 8015577 | SPACING BAR SPACING BAR | 1 | |
| 11 | 17157121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 4934572 | SPACING BAR SPACING BAR | 1 | |
| 14 | 17091074 | WASHER WASHER | 1 | |
| 15 | 17038621 | NUT NUT | 1 | |
| 16 | 17095104 | WASHER WASHER | 1 |
