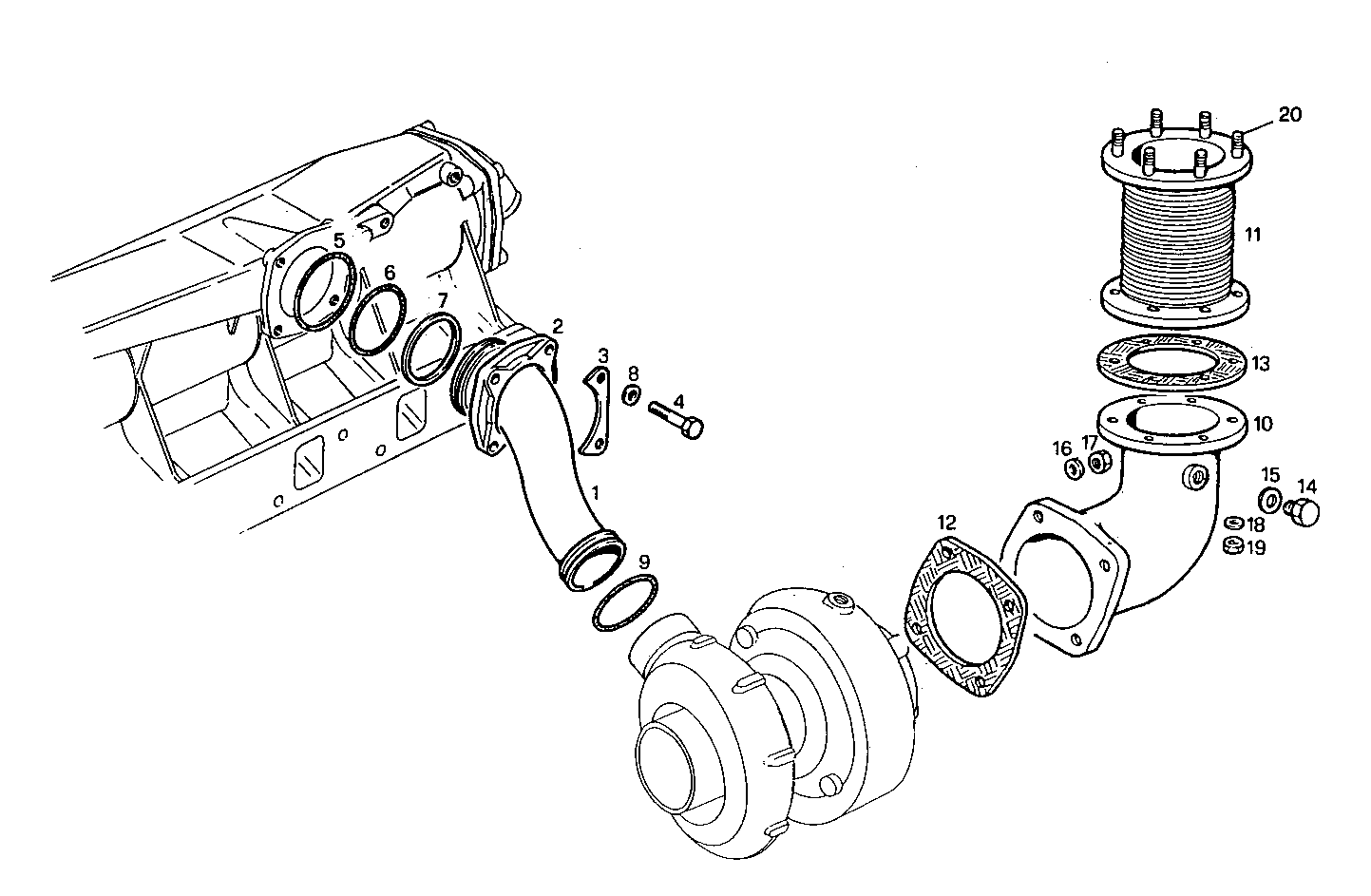

SUPERCHARGING LINES
8460SRM28.13 — 8460SRM28
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008974 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 8105950 | FLANGE FLANGE | 1 | |
| 3 | 8105952 | PLATE PLATE | 2 | |
| 4 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 17291281 | O-RING O-RING | 1 | |
| 6 | 17290781 | O-RING O-RING | 1 | |
| 7 | 8105951 | CIRCLIP CIRCLIP | 1 | |
| 8 | 17089471 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 14471581 | O-RING O-RING | 1 | |
| 10 | 8013472 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 11 | 8101671 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 12 | 8111833 | GASKET GASKET | 1 | |
| 13 | 8009600 | GASKET GASKET | 1 | |
| 14 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 4858607 | WASHER WASHER | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 19 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 | |
| 20 | 13449524 | STUD STUD | 12 |
