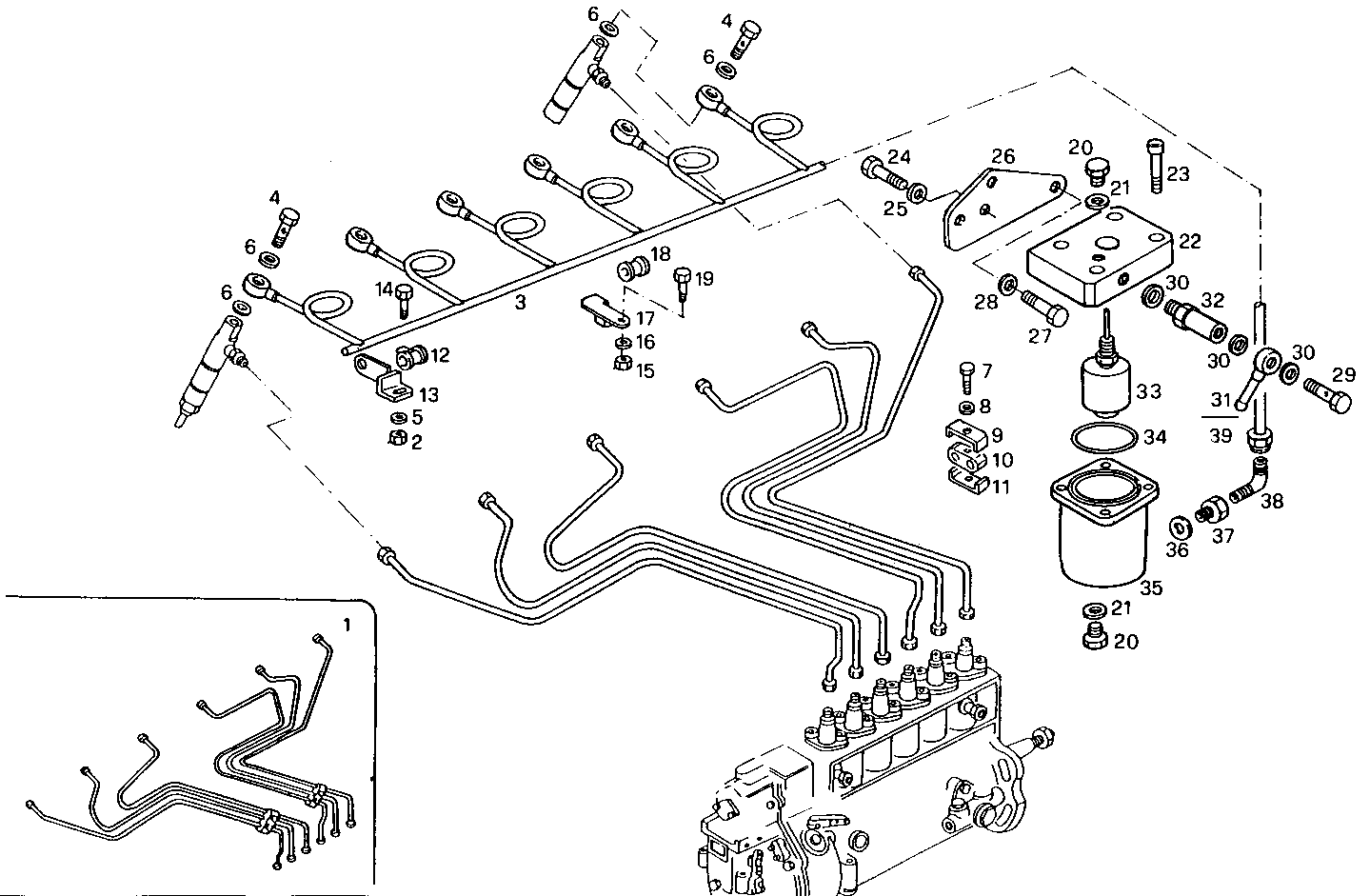

DOUBLE WALL INJECTION PIPES
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023432 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 3 | 8023485 | FUEL LINE FUEL LINE | 1 | |
| 4 | 4864078 | BANJO BOLT BANJO BOLT | 6 | |
| 5 | 17088474 | WASHER WASHER | 1 | |
| 6 | 98474303 | WASHER WASHER | 12 | |
| 7 | 16602224 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 17496434 | WASHER WASHER | 4 | |
| 9 | 4659218 | CLIP CLIP | 4 | |
| 10 | 4659217 | DOWEL DOWEL | 4 | |
| 11 | 4659219 | PLATE PLATE | 4 | |
| 12 | 17316590 | PIPE CLIP PIPE CLIP | 1 | |
| 13 | 8026421 | RETAINER RETAINER | 1 | |
| 14 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 8026427 | RETAINER RETAINER | 1 | |
| 18 | 17316390 | CLIP CLIP | 1 | |
| 19 | 16605424 | SCREW SCREW | 1 | |
| 20 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 21 | 4858607 | WASHER WASHER | 2 | |
| 22 | 8020291 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 23 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 24 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 25 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 26 | 8026426 | RETAINER RETAINER | 1 | |
| 27 | 15540421 | SCREW SCREW | 2 | |
| 28 | 17091074 | WASHER WASHER | 2 | |
| 29 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 30 | 4858608 | SEAL GASKET SEAL GASKET | 3 | |
| 31 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 32 | 8102465 | VALVE VALVE | 1 | |
| 33 | 8102285 | INDICATOR INDICATOR | 1 | |
| 34 | 17290081 | O-RING O-RING | 1 | |
| 35 | 8026365 | TANK TANK | 1 | |
| 36 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 37 | 16508711 | NUT NUT | 1 | |
| 38 | 8006222 | PIPE SOCKET PIPE SOCKET | 1 | |
| 39 | 8029491 | PIPE SOCKET PIPE SOCKET | 1 |
