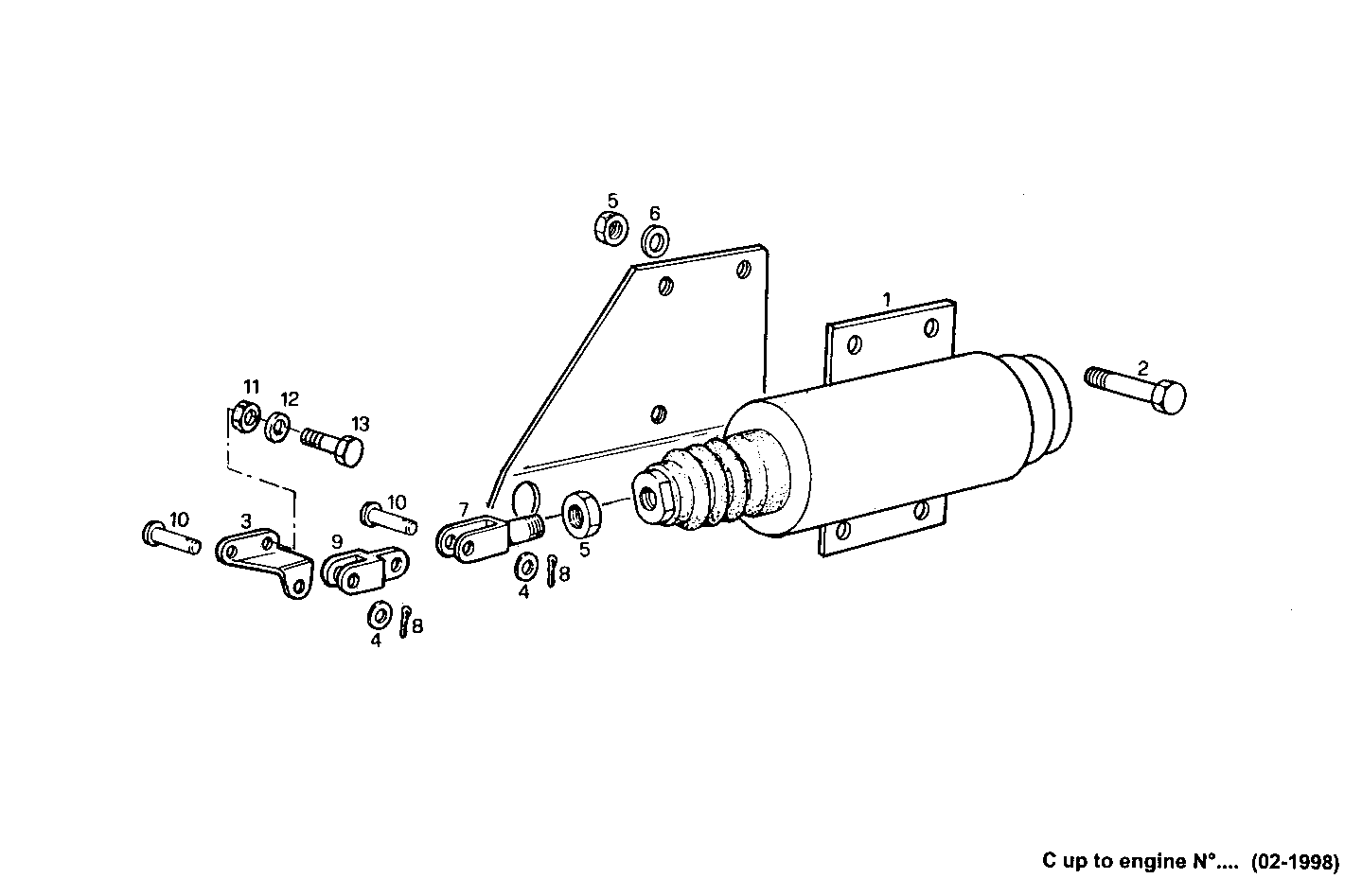

ELECTRIC STOP ENGINE
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017206 | SOLENOID SOLENOID | 1 | |
| 2 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 8018543 | LEVER LEVER | 1 | |
| 4 | 17094504 | WASHER WASHER | 2 | |
| 5 | 17037821 | HEXAGON NUT HEXAGON NUT | 5 | |
| 6 | 17088974 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 8108834 | CLEVIS CLEVIS | 1 | |
| 8 | 16851301 | SPLIT PIN SPLIT PIN | 2 | |
| 9 | 8108833 | CLEVIS CLEVIS | 1 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 17088474 | WASHER WASHER | 2 | |
| 13 | 16603524 | SCREW SCREW | 2 |
