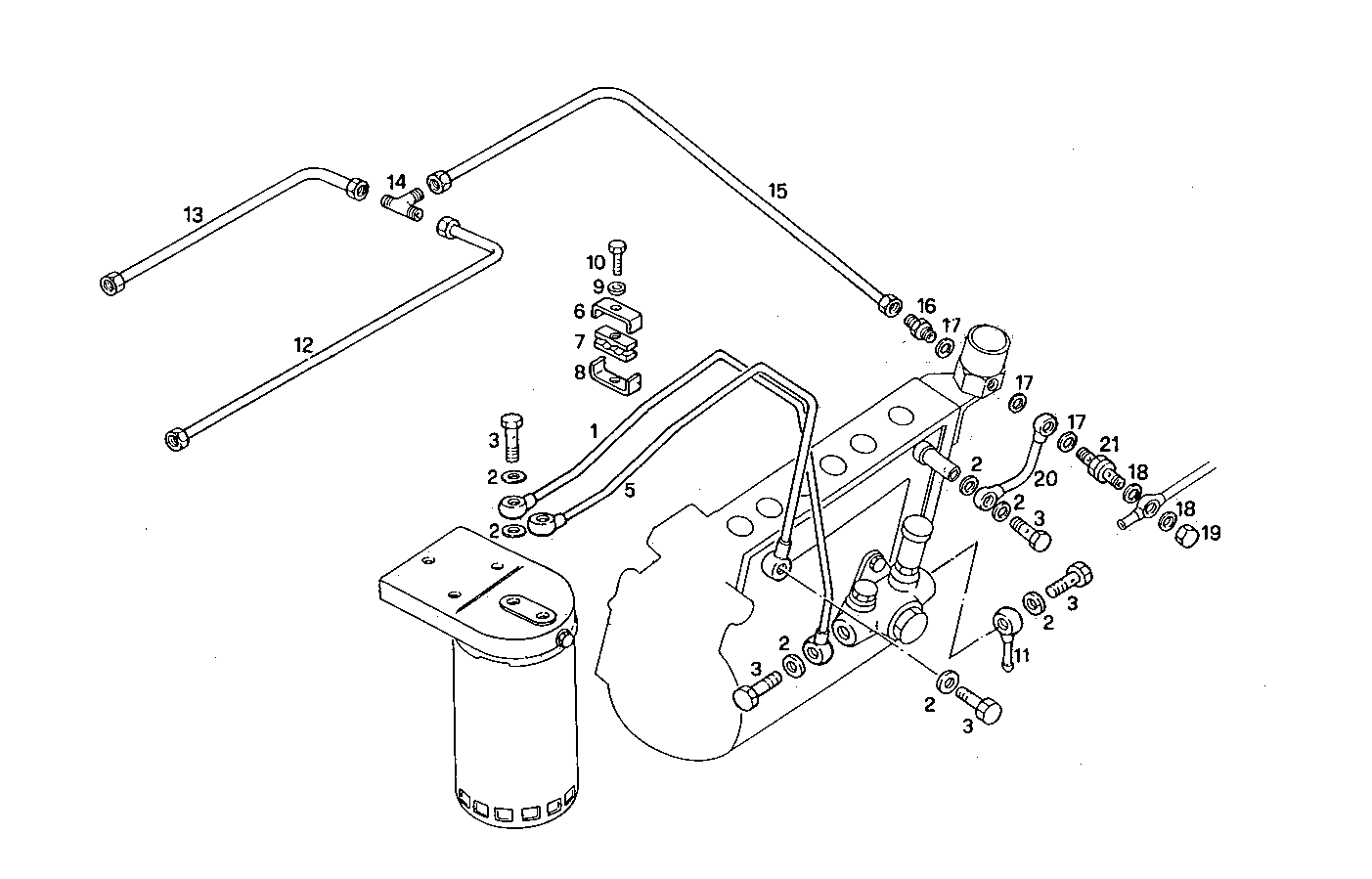

FUEL LINES
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009125 | FUEL LINE FUEL LINE | 1 | |
| 2 | 98474308 | SEAL GASKET SEAL GASKET | 12 | |
| 3 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 5 | 8009126 | FUEL LINE FUEL LINE | 1 | |
| 6 | 4644288 | CLIP CLIP | 1 | |
| 7 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 8 | 4644289 | CLIP CLIP | 1 | |
| 9 | 17088474 | WASHER WASHER | 1 | |
| 10 | 16603824 | SCREW SCREW | 1 | |
| 11 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8017491 | FUEL LINE FUEL LINE | 1 | |
| 13 | 8017492 | FUEL LINE FUEL LINE | 1 | |
| 14 | 16505011 | T-COUPLING T-COUPLING | 1 | |
| 15 | 8017490 | FUEL LINE FUEL LINE | 1 | |
| 16 | 16500011 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 98474305 | WASHER WASHER | 3 | |
| 18 | 98474306 | WASHER WASHER | 2 | |
| 19 | 98469675 | THREADED PLUG THREADED PLUG | 1 | |
| 20 | 8017849 | FUEL LINE FUEL LINE | 1 | |
| 21 | 98469450 | BYPASS VALVE BYPASS VALVE | 1 |
