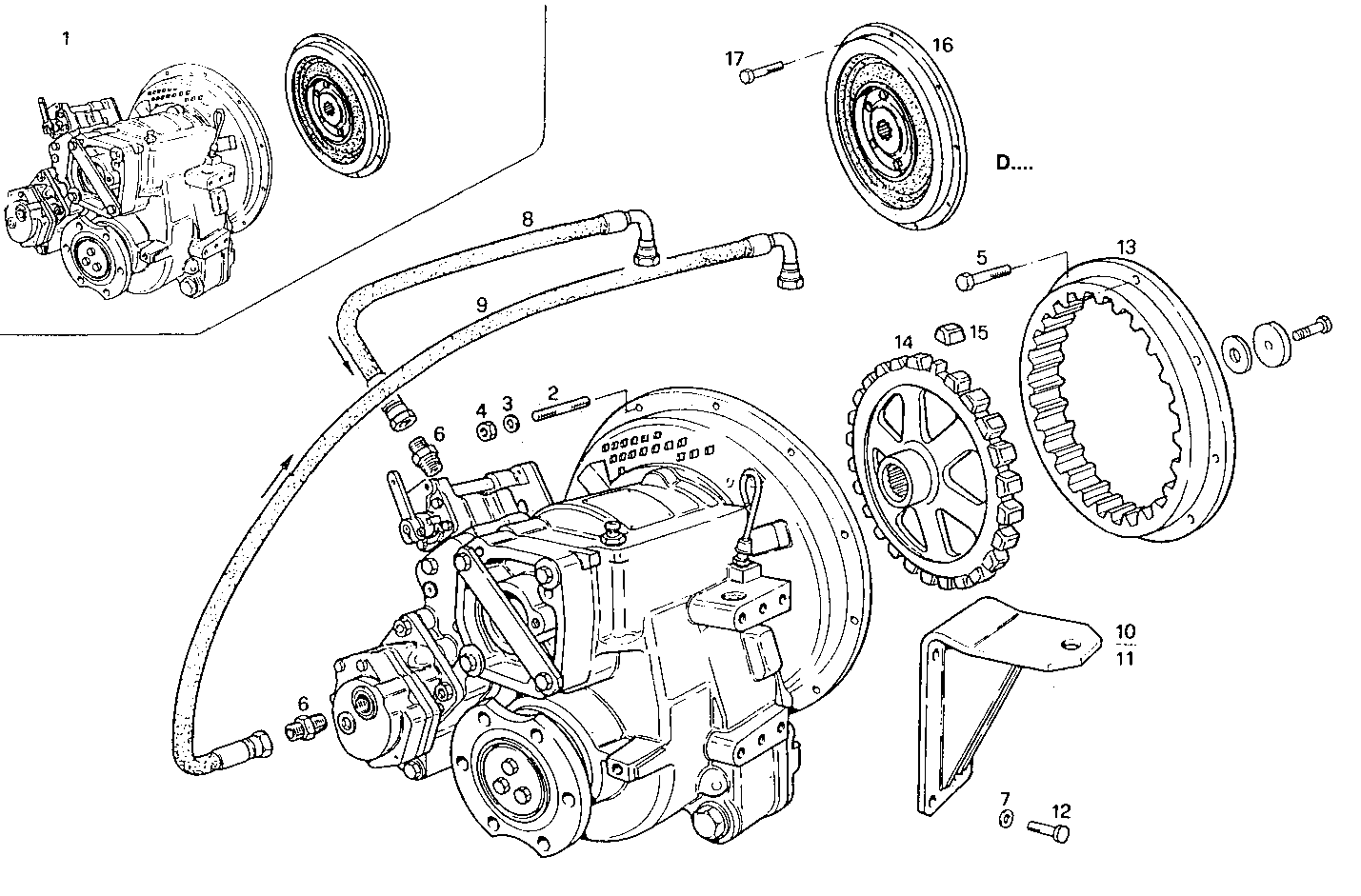

MARINE GEAR TWIN DISC MG 5090 A
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023582 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 13543721 | STUD STUD | 12 | |
| 3 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 14274621 | LOCKING SCREW LOCKING SCREW | 8 | |
| 6 | 8113742 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 17092671 | WASHER WASHER | 12 | |
| 8 | 8105226 | HOSE HOSE | 1 | |
| 9 | 8105620 | HOSE HOSE | 1 | |
| 10 | 8009658 | SUPPORT SUPPORT | 1 | |
| 11 | 8009659 | SUPPORT SUPPORT | 1 | |
| 12 | 4933197 | SCREW SCREW | 12 | |
| 13 | 8007793 | FLANGE FLANGE | 1 | |
| 14 | 8007792 | FLEXPLATE FLEXPLATE | 1 | |
| 15 | 4932462 | DOWEL DOWEL | 26 | |
| 16 | 8023601 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 17 | 14274421 | LOCKING SCREW LOCKING SCREW | 1 |
