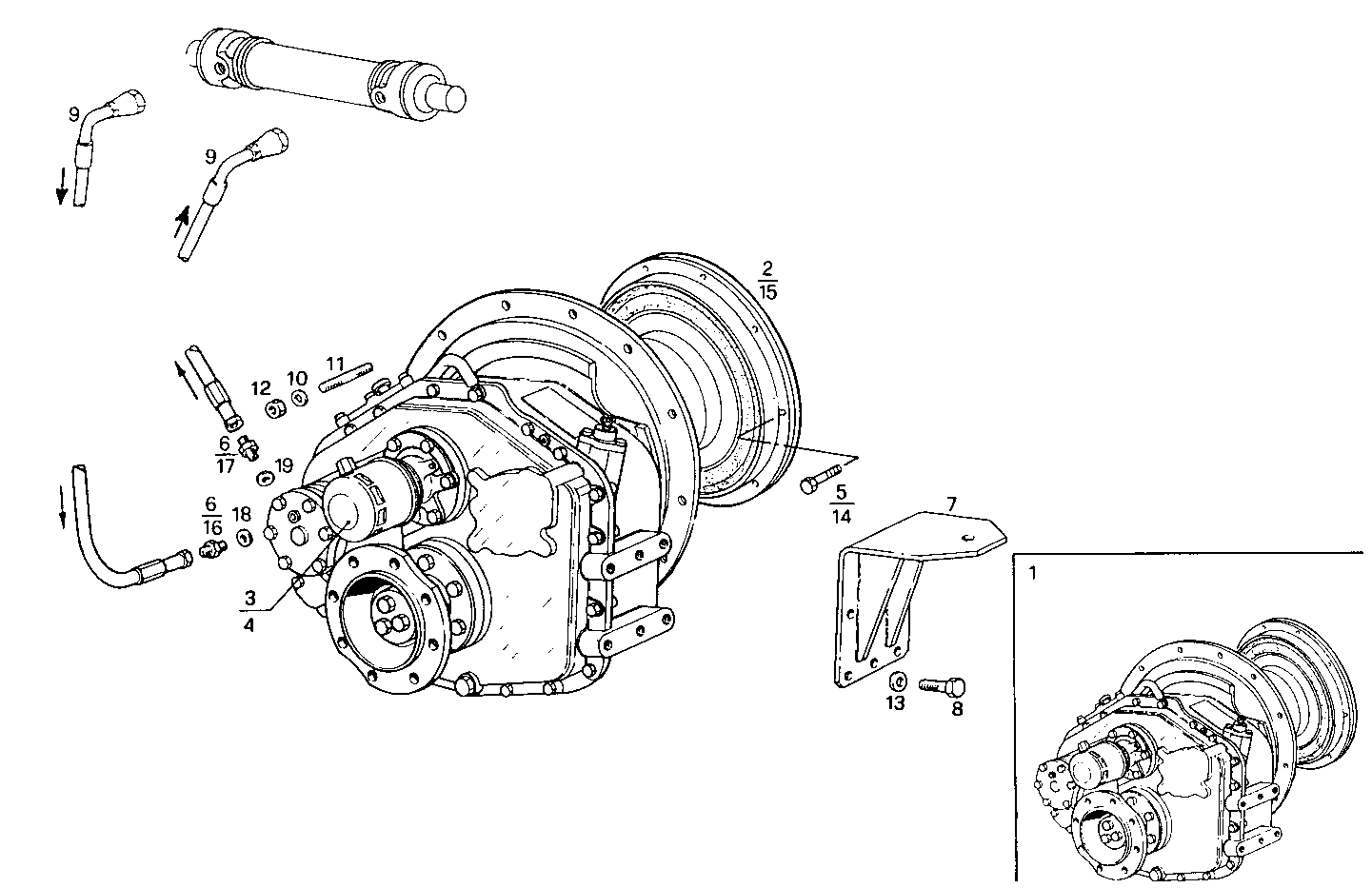

MARINE GEAR ZF-MPM IRM 320 PL-1
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022928 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8010445 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 3 | 8111320 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 4 | 8111321 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 5 | 14274621 | LOCKING SCREW LOCKING SCREW | 8 | |
| 6 | 8021737 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 8008418 | SUPPORT SUPPORT | 2 | |
| 8 | 4932875 | SCREW SCREW | 8 | |
| 9 | 8105619 | HOSE HOSE | 2 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 11 | 13453721 | STUD STUD | 12 | |
| 12 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 13 | 17092171 | WASHER WASHER | 8 | |
| 14 | 14274421 | LOCKING SCREW LOCKING SCREW | 8 | |
| 15 | 8023060 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 16 | 8100897 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 8023701 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 19 | 11270460 | GASKET GASKET | 1 |
