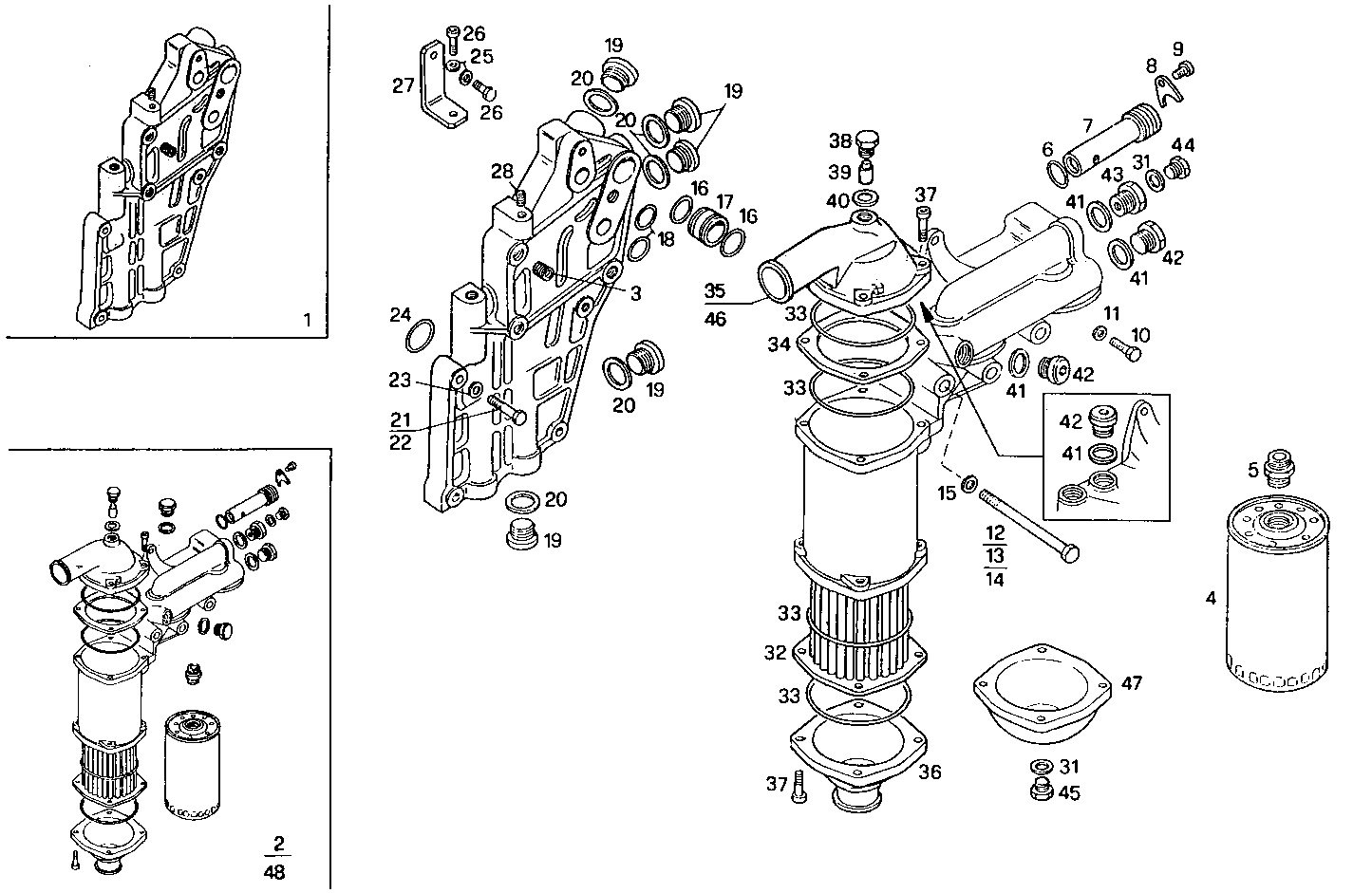

OIL - WATER HEAT EXCHANGER
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017402 | SPACING BAR SPACING BAR | 1 | |
| 2 | 8017246 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 3 | 17873671 | THREADED INSERT THREADED INSERT | 4 | |
| 4 | 1907584 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 2 | |
| 5 | 4741301 | THREADED UNION THREADED UNION | 2 | |
| 6 | 17288881 | O-RING O-RING | 1 | |
| 7 | 98435128 | VALVE VALVE | 1 | |
| 8 | 4846397 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 9 | 16990524 | SCREW SCREW | 1 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17094914 | WASHER WASHER | 1 | |
| 12 | 15542121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 15541721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17095304 | WASHER WASHER | 4 | |
| 16 | 17278981 | O-RING O-RING | 2 | |
| 17 | 4853307 | CENTERING BUSH CENTERING BUSH | 1 | |
| 18 | 17282581 | O-RING O-RING | 2 | |
| 19 | 16993511 | LOCK PLUG LOCK PLUG | 6 | |
| 20 | 10296260 | SEAL GASKET SEAL GASKET | 6 | |
| 21 | 11343821 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 22 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 23 | 17095104 | WASHER WASHER | 4 | |
| 24 | 17289281 | O-RING O-RING | 4 | |
| 25 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 26 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 8017335 | RETAINER RETAINER | 1 | |
| 28 | 17873271 | THREADED INSERT THREADED INSERT | 2 | |
| 31 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 32 | 8017399 | TUBE STACK TUBE STACK | 1 | |
| 33 | 99431653 | O-RING O-RING | 4 | |
| 34 | 8017862 | SPACING BAR SPACING BAR | 1 | |
| 35 | 8017243 | COVER COVER | 1 | |
| 36 | 8017244 | COVER COVER | 1 | |
| 37 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 38 | 4917793 | PLUG PLUG | 1 | |
| 39 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 40 | 4858610 | WASHER WASHER | 1 | |
| 41 | 98429281 | SEAL GASKET SEAL GASKET | 6 | |
| 42 | 16994040 | PLUG PLUG | 5 | |
| 43 | 8005151 | PIPE SOCKET PIPE SOCKET | 1 | |
| 44 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 45 | 10263460 | WASHER WASHER | 1 | |
| 46 | 8020029 | COVER COVER | 1 | |
| 47 | 8017606 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 48 | 8020092 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 |
