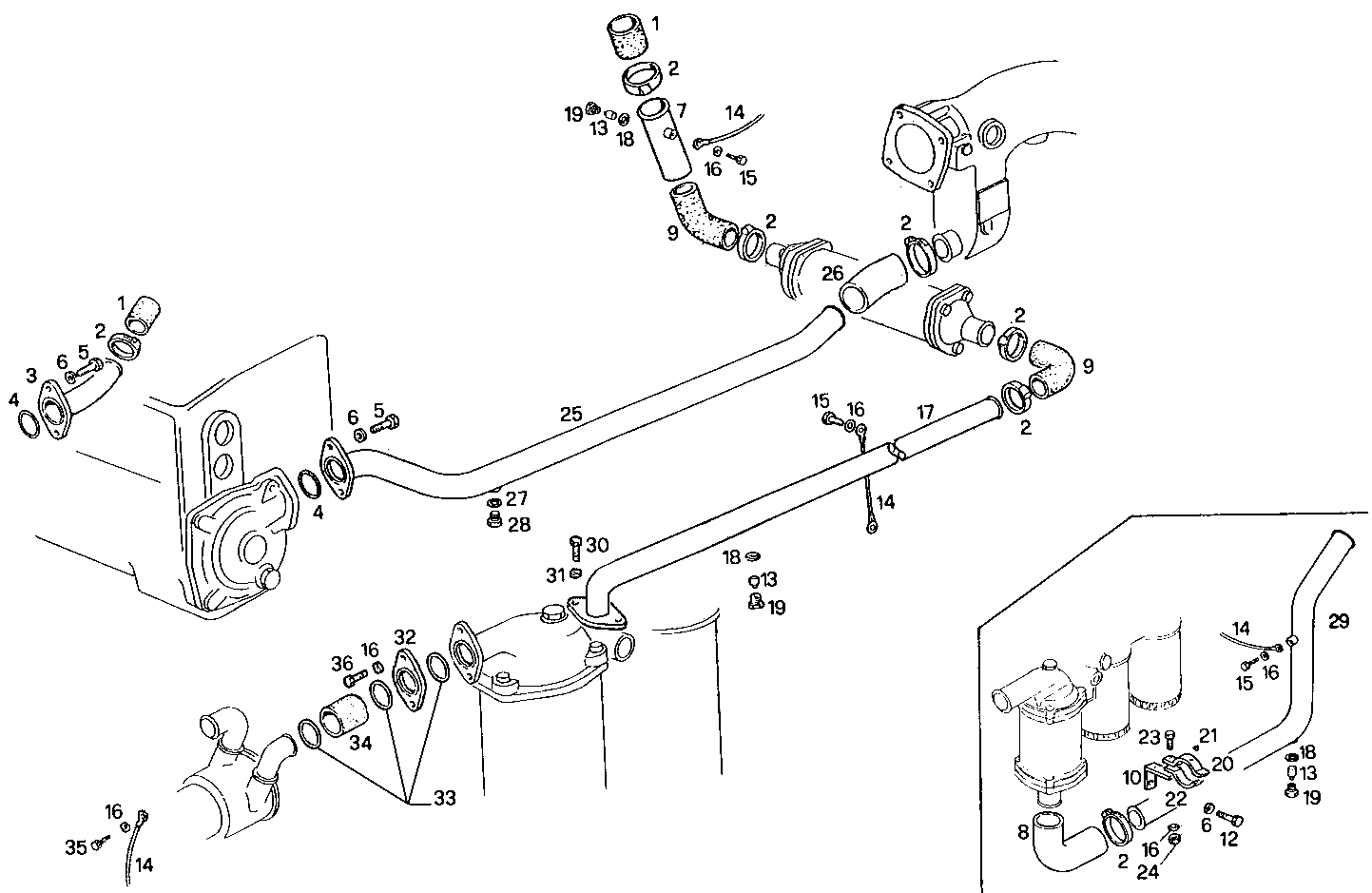

SEA WATER LINES
8460SRM50.10 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 2 | 17764993 | CLIP CLIP | 14 | |
| 3 | 8009636 | WATER PIPE WATER PIPE | 1 | |
| 4 | 17289981 | O-RING O-RING | 2 | |
| 5 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 6 | 17091074 | WASHER WASHER | 4 | |
| 7 | 8017447 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8009940 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 8110487 | WATER HOSE WATER HOSE | 2 | |
| 10 | 8007981 | RETAINER RETAINER | 1 | |
| 12 | 15540221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 14 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 2 | |
| 15 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 8020051 | WATER PIPE WATER PIPE | 1 | |
| 18 | 4858610 | WASHER WASHER | 2 | |
| 19 | 4917793 | PLUG PLUG | 2 | |
| 20 | 8113296 | CLAMP CLAMP | 1 | |
| 21 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 22 | 8113295 | CLAMP CLAMP | 1 | |
| 23 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 25 | 8017448 | WATER PIPE WATER PIPE | 1 | |
| 26 | 8010366 | WATER HOSE WATER HOSE | 1 | |
| 27 | 4858606 | GASKET GASKET | 1 | |
| 28 | 11903140 | PLUG PLUG | 1 | |
| 29 | 8017446 | WATER PIPE WATER PIPE | 1 | |
| 30 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 31 | 17101534 | SPRING WASHER SPRING WASHER | 2 | |
| 32 | 8020066 | FLANGE FLANGE | 1 | |
| 33 | 17289881 | O-RING O-RING | 3 | |
| 34 | 8112496 | CONNECTION CONNECTION | 1 | |
| 35 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 36 | 16606024 | SCREW SCREW | 2 |
