SEA WATER PUMP
8460SRM50.10 — 8460SRM50

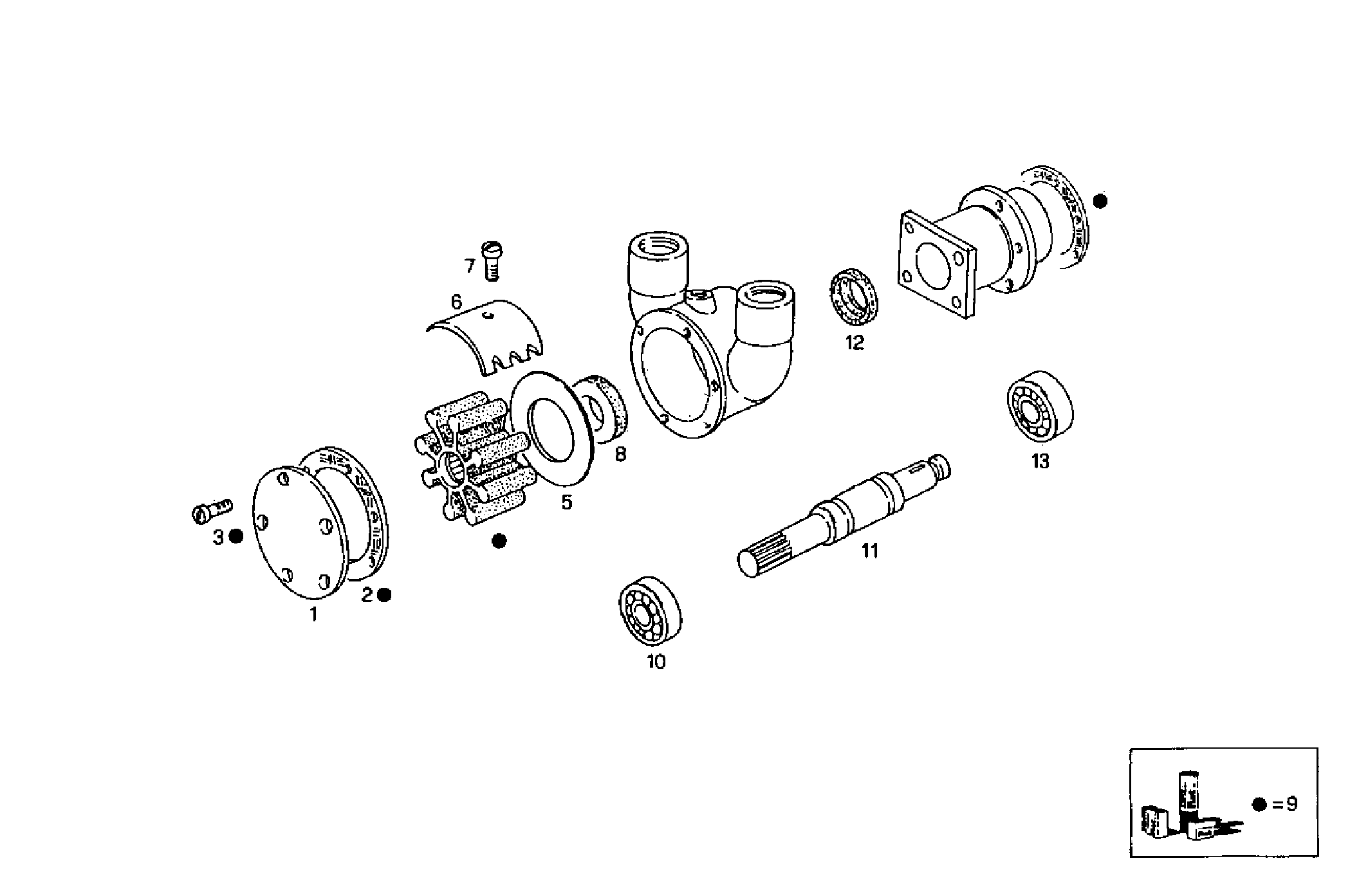

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105732 | COVER COVER | 1 | |
| 2 | 8093355 | GASKET GASKET | 1 | |
| 3 | 8105734 | SCREW SCREW | 5 | |
| 5 | 8105724 | WASHER WASHER | 1 | |
| 6 | 8105726 | RETAINING CAM RETAINING CAM | 1 | |
| 7 | 8105727 | SCREW SCREW | 1 | |
| 8 | 8093340 | WASHER WASHER | 1 | |
| 9 | 8094666 | SEA-WATER PUMP IMPELL.KIT SEA-WATER PUMP IMPELL.KIT | 1 | |
| 10 | 8105719 | DRIVE BEARING DRIVE BEARING | 1 | |
| 11 | 8093361 | SHAFT SHAFT | 1 | |
| 12 | 8105717 | WASHER WASHER | 1 | |
| 13 | 8106282 | DRIVE BEARING DRIVE BEARING | 1 |
