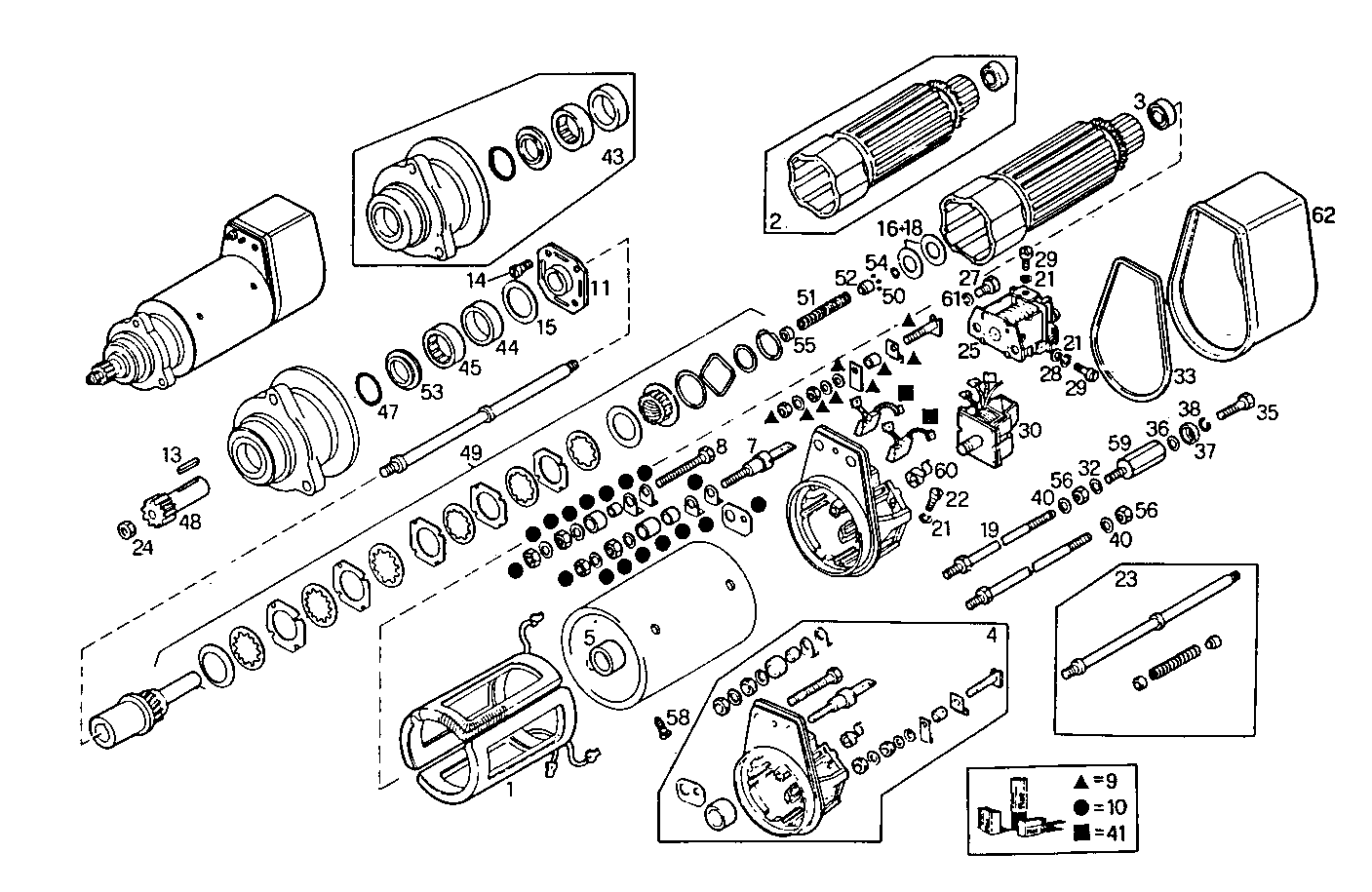

8460SRM50/8460SRM50.10/STARTER MOTOR (COMPONENTS)

STARTER MOTOR (COMPONENTS)

8460SRM50.10 — 8460SRM50

Parts List

#	Part No	Name / Description	Qty
1	8122371	STARTER WINDING STARTER WINDING	1
2	8122372	STARTER ARMATURE STARTER ARMATURE	1
3	1905092	ENGINE BEARINGS ENGINE BEARINGS	1
4	9934328	STARTER SUPPORT STARTER SUPPORT	1
5	79052278	BUSH BUSH	1
7	1290021	SCREW SCREW	1
8	9928976	SCREW SCREW	1
9	1306445	KIT-STARTER KIT-STARTER	1
10	8124103	KIT-STARTER KIT-STARTER	2
11	9920338	FLANGE FLANGE	1
13	1117970	KEY KEY	1
14	79052237	SCREW SCREW	4
15	79052239	RING RING	1
16	79052250	SHIM SHIM	1
17	1289919	SHIM SHIM	1
18	1289920	WASHER WASHER	1
19	42485205	TIE ROD TIE ROD	1
21	17494634	SPRING WASHER SPRING WASHER	8
22	79052258	CUTTING SCREW CUTTING SCREW	2
23	42485204	STUD STUD	1
24	8121271	NUT NUT	1
25	79052269	STARTER SOLENOID STARTER SOLENOID	1
26	9916099	WASHER WASHER	2
27	9920400	SCREW SCREW	2
28	93159935	WASHER WASHER	3
29	79028449	SCREW SCREW	6
30	79052266	STARTER SOLENOID STARTER SOLENOID	1
32	9920379	WASHER WASHER	2
33	9920382	GASKET GASKET	1
34	1306477	COVER COVER	1
35	9922944	SCREW SCREW	2
36	9933672	GASKET GASKET	2
37	79052265	BUSH BUSH	2
38	9929741	WASHER WASHER	2
40	9009583	WASHER WASHER	4
41	79052257	KIT-STARTER KIT-STARTER	1
43	9984245	STARTER SUPPORT STARTER SUPPORT	1
44	79052271	BUSH BUSH	1
45	1905095	ENGINE BEARINGS ENGINE BEARINGS	1
47	9920383	WASHER WASHER	1
48	9984246	STARTER PINION STARTER PINION	1
49	79052241	SHAFT SHAFT	1
50	1289875	BALL BALL	1
51	8121269	SPRING SPRING	1
52	79052246	RING RING	1
53	9920332	RING RING	1
54	9920367	CIRCLIP CIRCLIP	1
55	9927316	BUSH BUSH	1
56	15896221	HEXAGON NUT HEXAGON NUT	1
57	42485206	TIE ROD TIE ROD	3
58	42489183	SCREW SCREW	8
59	1290074	PIN PIN	2
60	1290139	SPRING SPRING	4
61	10516673	SPRING WASHER SPRING WASHER	2
62	79076024	COVER COVER	1
