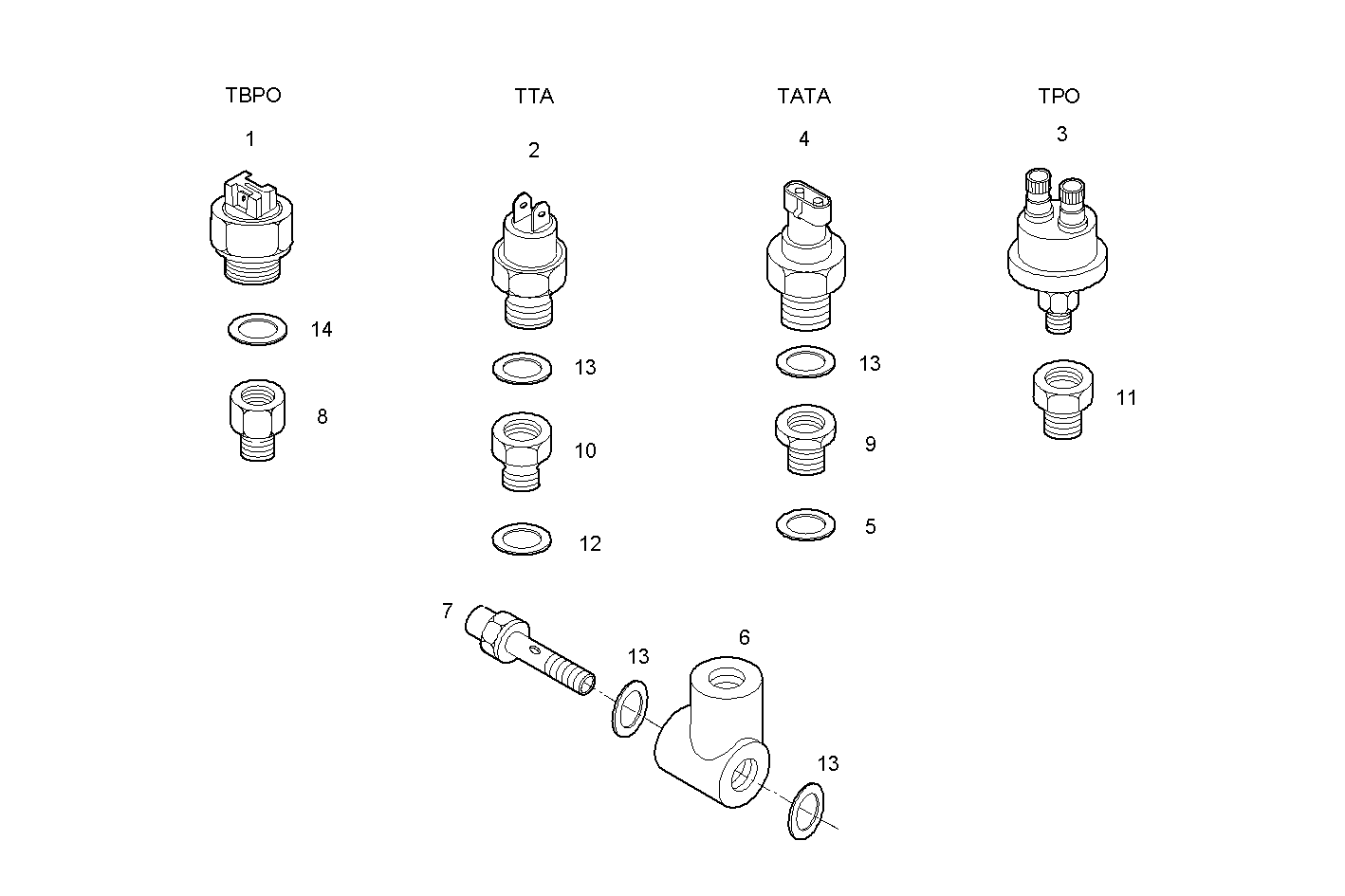

INSULATED POLES VDO TRANSMITTER
8460SRM50.10A002 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8114030 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8100418 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8100417 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8019334 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 61319226 | BANJO COUPLING BANJO COUPLING | 1 | |
| 7 | 61319225 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 4935560 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 4930370 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4928113 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 4858609 | WASHER WASHER | 1 | |
| 13 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 14 | 4858607 | WASHER WASHER | 1 |
