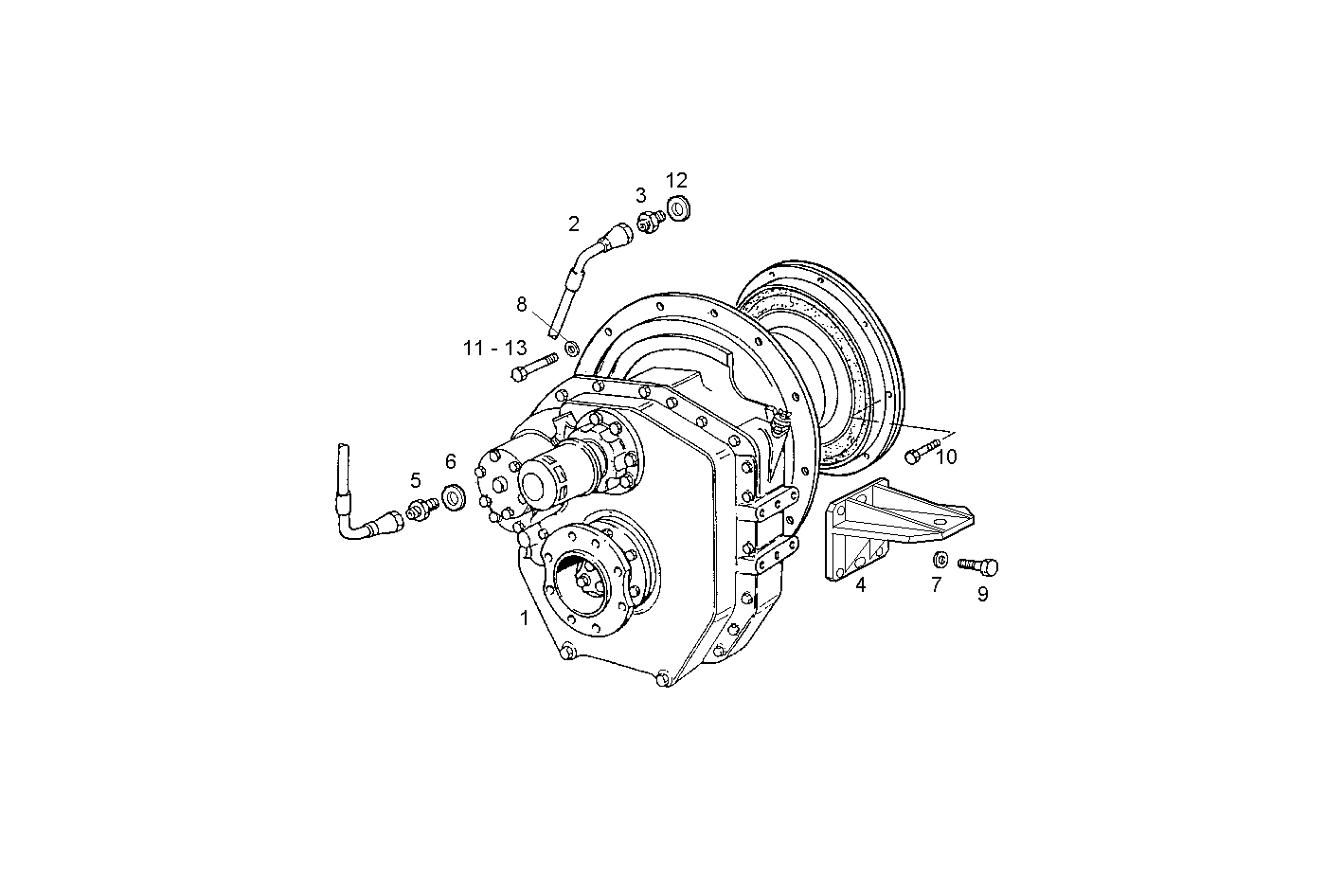

MARINE GEAR ZF 325-1A
8460SRM50.10A002 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037384 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8105619 | HOSE HOSE | 2 | |
| 3 | 8100897 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8038088 | SUPPORT SUPPORT | 2 | |
| 5 | 8023701 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 4858609 | WASHER WASHER | 1 | |
| 7 | 17092174 | SPRING WASHER SPRING WASHER | 12 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 9 | 16614524 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 10 | 16326033 | LOCKING SCREW LOCKING SCREW | 8 | |
| 11 | 11306921 | SCREW SCREW | 10 | |
| 12 | 11270460 | GASKET GASKET | 1 | |
| 13 | 10923621 | HEXAGON BOLT HEXAGON BOLT | 2 |
