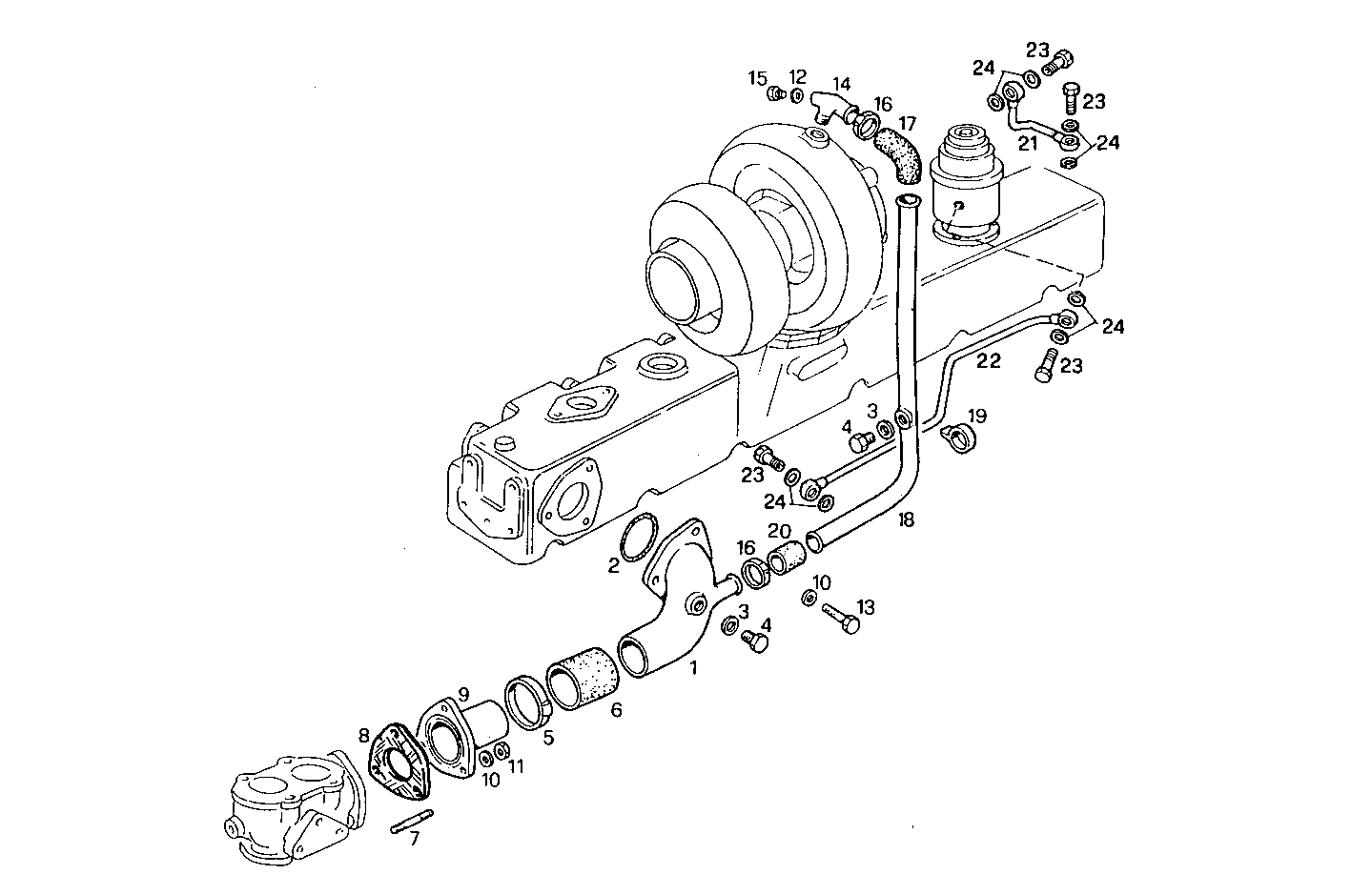

WATER LINES
8460SRM50.10A002 — 8460SRM50
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007802 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17290281 | O-RING O-RING | 1 | |
| 3 | 4858609 | WASHER WASHER | 2 | |
| 4 | 16992411 | THREADED PLUG THREADED PLUG | 2 | |
| 5 | 17765093 | CLIP CLIP | 2 | |
| 6 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 16746624 | STUD STUD | 3 | |
| 8 | 4862977 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 8007801 | WATER PIPE WATER PIPE | 1 | |
| 10 | 17089471 | SPRING WASHER SPRING WASHER | 6 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 12 | 4858606 | GASKET GASKET | 1 | |
| 13 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 8008297 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 11903140 | PLUG PLUG | 1 | |
| 16 | 17764793 | CLIP CLIP | 4 | |
| 17 | 8008790 | WATER HOSE WATER HOSE | 1 | |
| 18 | 8014214 | WATER PIPE WATER PIPE | 1 | |
| 19 | 4621091 | CLIP CLIP | 1 | |
| 20 | 8007804 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 21 | 8013372 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8013373 | WATER PIPE WATER PIPE | 1 | |
| 23 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 24 | 4858608 | SEAL GASKET SEAL GASKET | 8 |
