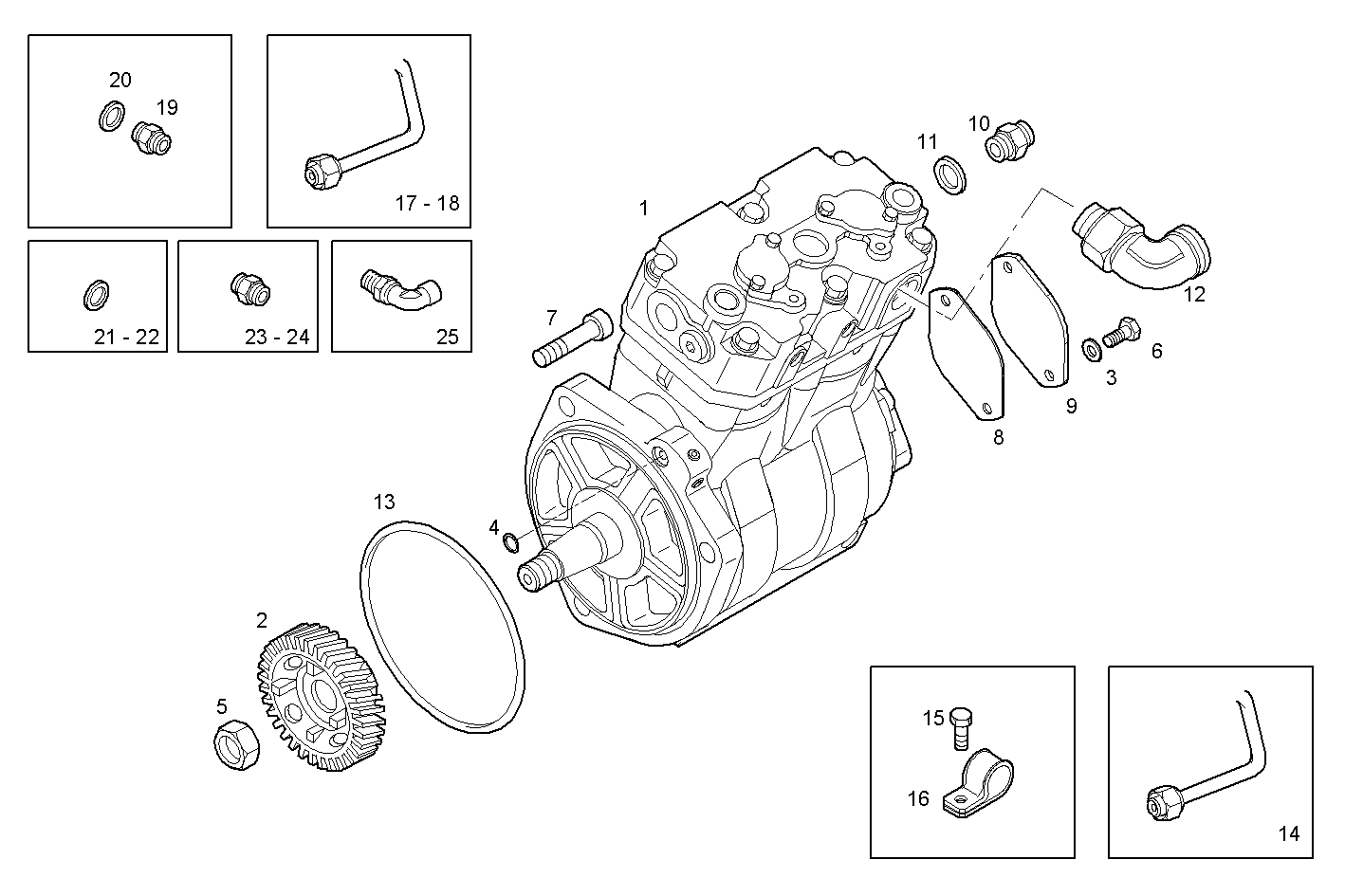

AIR COMPRESSOR
C10ENTC23.00A004 — CURSOR 10 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41211340 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 99437433 | DRIVE GEAR DRIVE GEAR | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 17281381 | O-RING O-RING | 1 | |
| 5 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 16693924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 8 | 8025370 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 8025369 | PTO COVER PTO COVER | 1 | |
| 10 | 61599713 | THREADED UNION THREADED UNION | 1 | |
| 11 | 16508560 | WASHER WASHER | 1 | |
| 12 | 99456380 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 13 | 17292281 | O-RING O-RING | 1 | |
| 14 | 41218732 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 15 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17317390 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 17 | 500354898 | WATER PIPE WATER PIPE | 1 | |
| 18 | 500354904 | WATER PIPE WATER PIPE | 1 | |
| 19 | 16500415 | PIPE SOCKET PIPE SOCKET | 6 | |
| 20 | 99489020 | SEAL GASKET SEAL GASKET | 6 | |
| 21 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 22 | 16508060 | SEAL GASKET SEAL GASKET | 1 | |
| 23 | 42087093 | PIPE SOCKET PIPE SOCKET | 2 | |
| 24 | 99476542 | THREADED UNION THREADED UNION | 1 | |
| 25 | 98427977 | ELBOW COUPLING ELBOW COUPLING | 1 |
