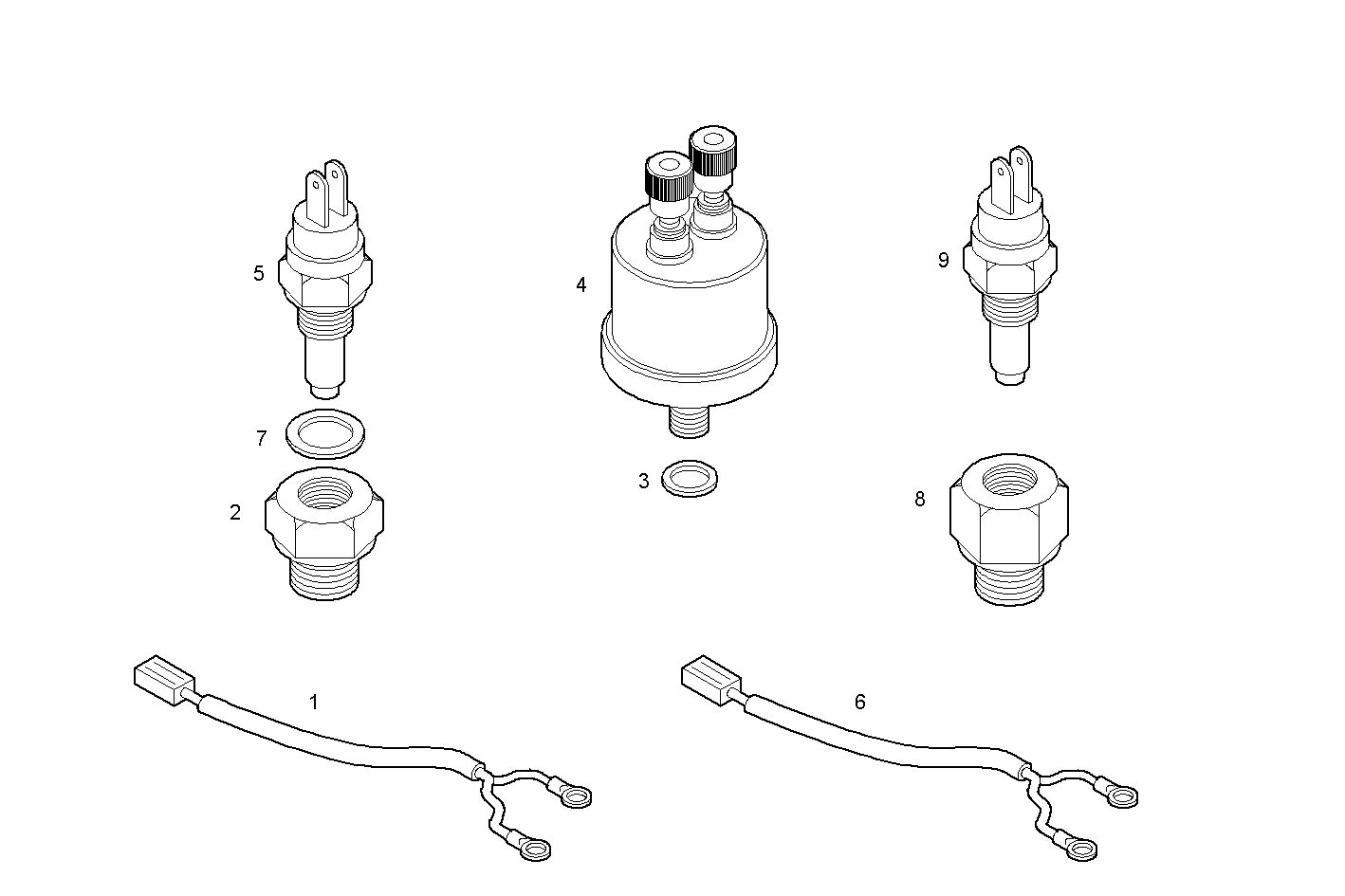

ELECTRONIC CONTROL UNIT
C10ENTC23.00A004 — CURSOR 10 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031966 | WIRE/CABLE WIRE/CABLE | 1 | |
| 2 | 4928113 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 4858609 | WASHER WASHER | 1 | |
| 4 | 8031697 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 8031692 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 6 | 8031965 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 98474308 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 8040190 | TRANSMITTER TRANSMITTER | 1 |
