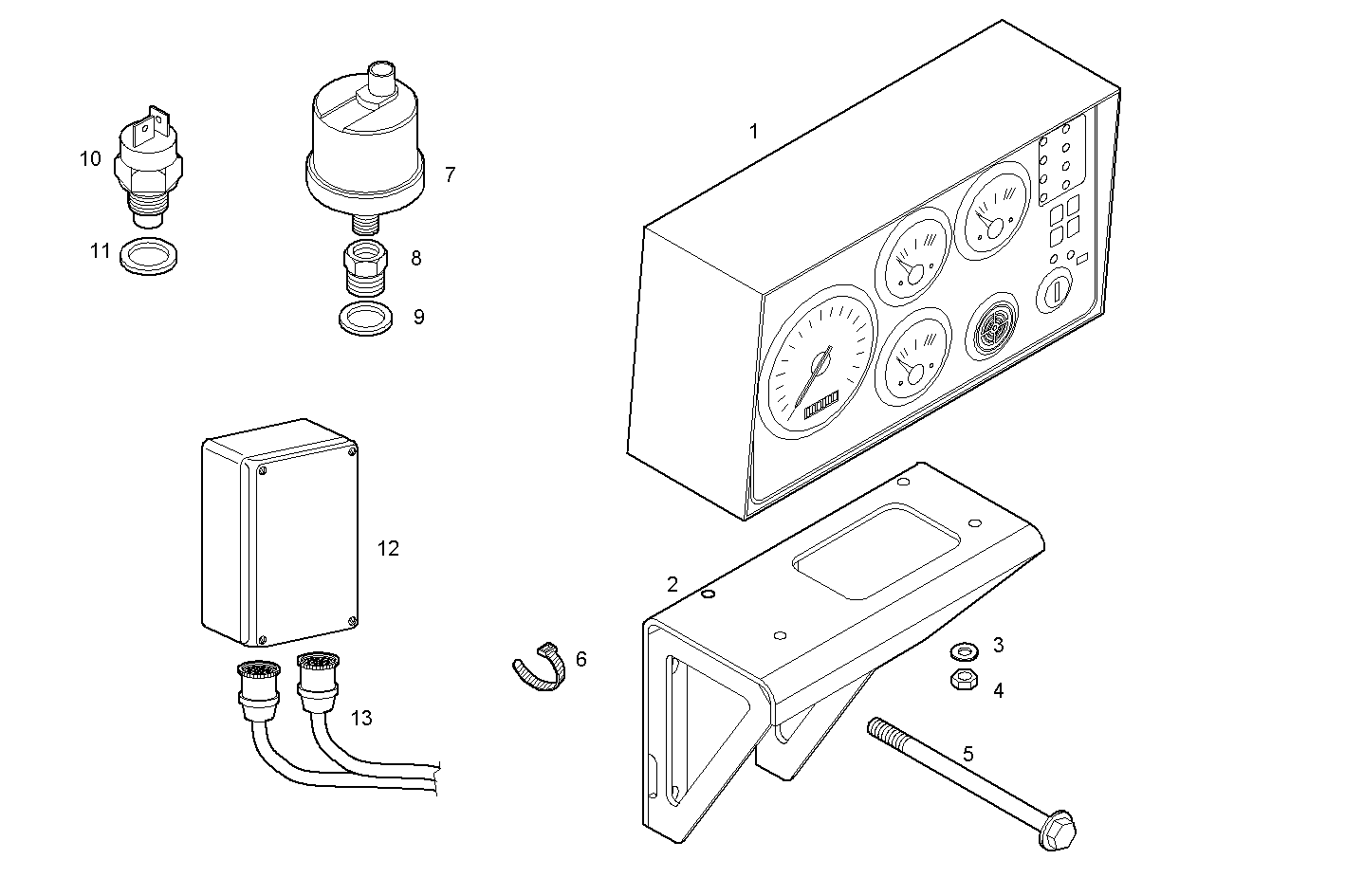

PANEL WITH ELECTRICAL INSTRUMENTS
C10ENTD20.00 — CURSOR 10 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8038059 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8043874 | SUPPORT SUPPORT | 1 | |
| 3 | 17088974 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 16599325 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 6 | 14560187 | CABLE STRAP CABLE STRAP | 20 | |
| 7 | 8036275 | TRANSMITTER TRANSMITTER | 1 | |
| 8 | 4928113 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 98474308 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 8042846 | TRANSMITTER TRANSMITTER | 1 | |
| 11 | 98474309 | WASHER WASHER | 1 | |
| 12 | 8040414 | SWITCHGEAR SWITCHGEAR | 1 | |
| 13 | 8040410 | ENGINE HARNESS ENGINE HARNESS | 1 |
