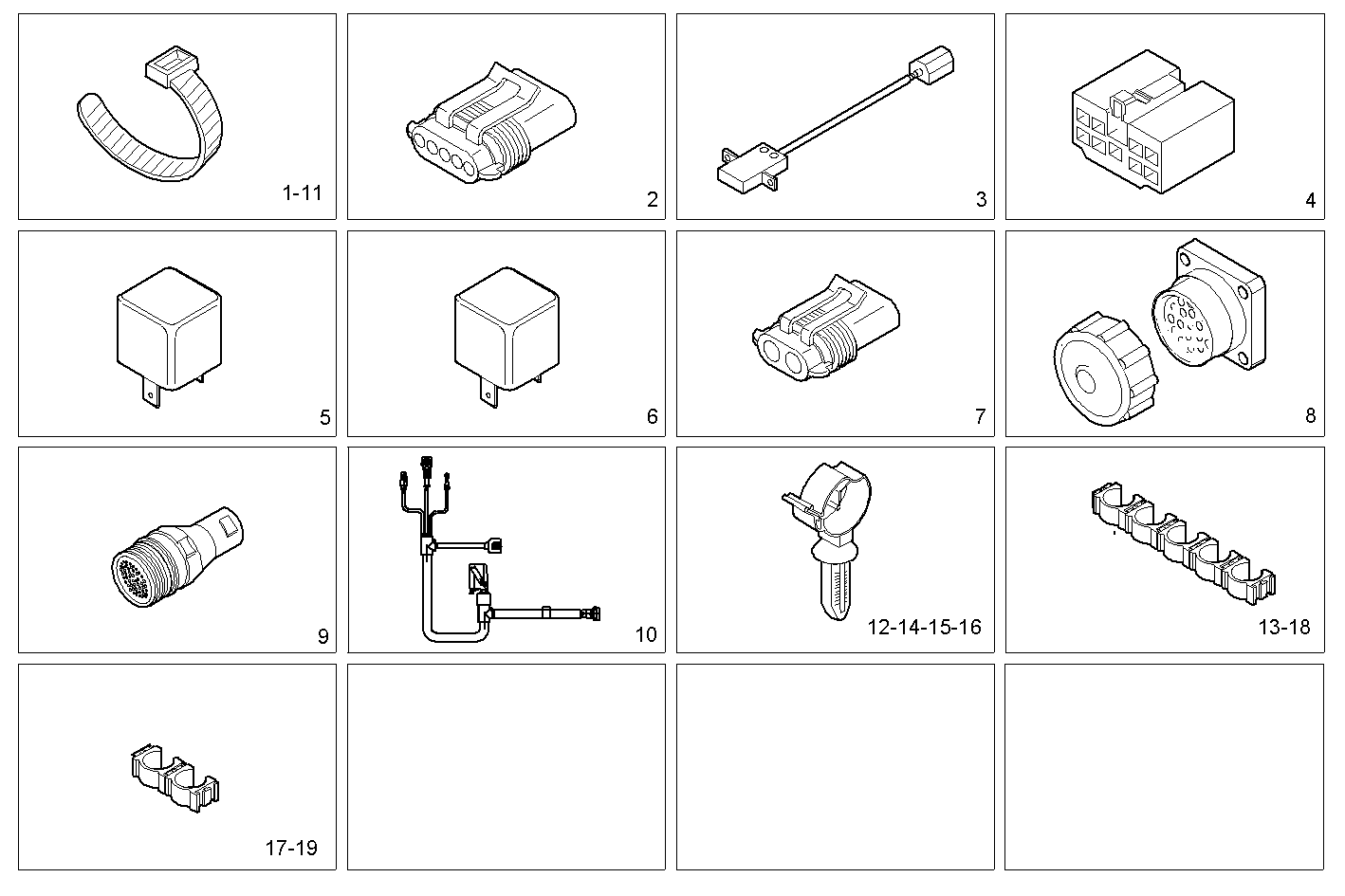

ACCESSORIES
C10ENTD20.00A800 — CURSOR 10 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504023286 | CABLE STRAP CABLE STRAP | 1 | |
| 2 | 8030573 | CONNECTION CONNECTION | 1 | |
| 3 | 99464594 | SWITCH SWITCH | 1 | |
| 4 | 8031431 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 5 | 41040442 | RELAY RELAY | 1 | |
| 6 | 500362250 | RELAY RELAY | 1 | |
| 7 | 8030575 | CONNECTION CONNECTION | 1 | |
| 8 | 8034787 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 9 | 8036545 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 10 | 8036518 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 11 | 42099097 | CABLE STRAP CABLE STRAP | 4 | |
| 12 | 99455033 | CLIP CLIP | 8 | |
| 13 | 500306941 | SPRING CLAMP SPRING CLAMP | 2 | |
| 14 | 504000058 | CLIP CLIP | 1 | |
| 15 | 504000061 | CLIP CLIP | 1 | |
| 16 | 504000063 | CLIP CLIP | 1 | |
| 17 | 504045710 | SPRING CLAMP SPRING CLAMP | 2 | |
| 18 | 504056785 | SPRING CLAMP SPRING CLAMP | 1 | |
| 19 | 504056810 | SPRING CLAMP SPRING CLAMP | 1 |
