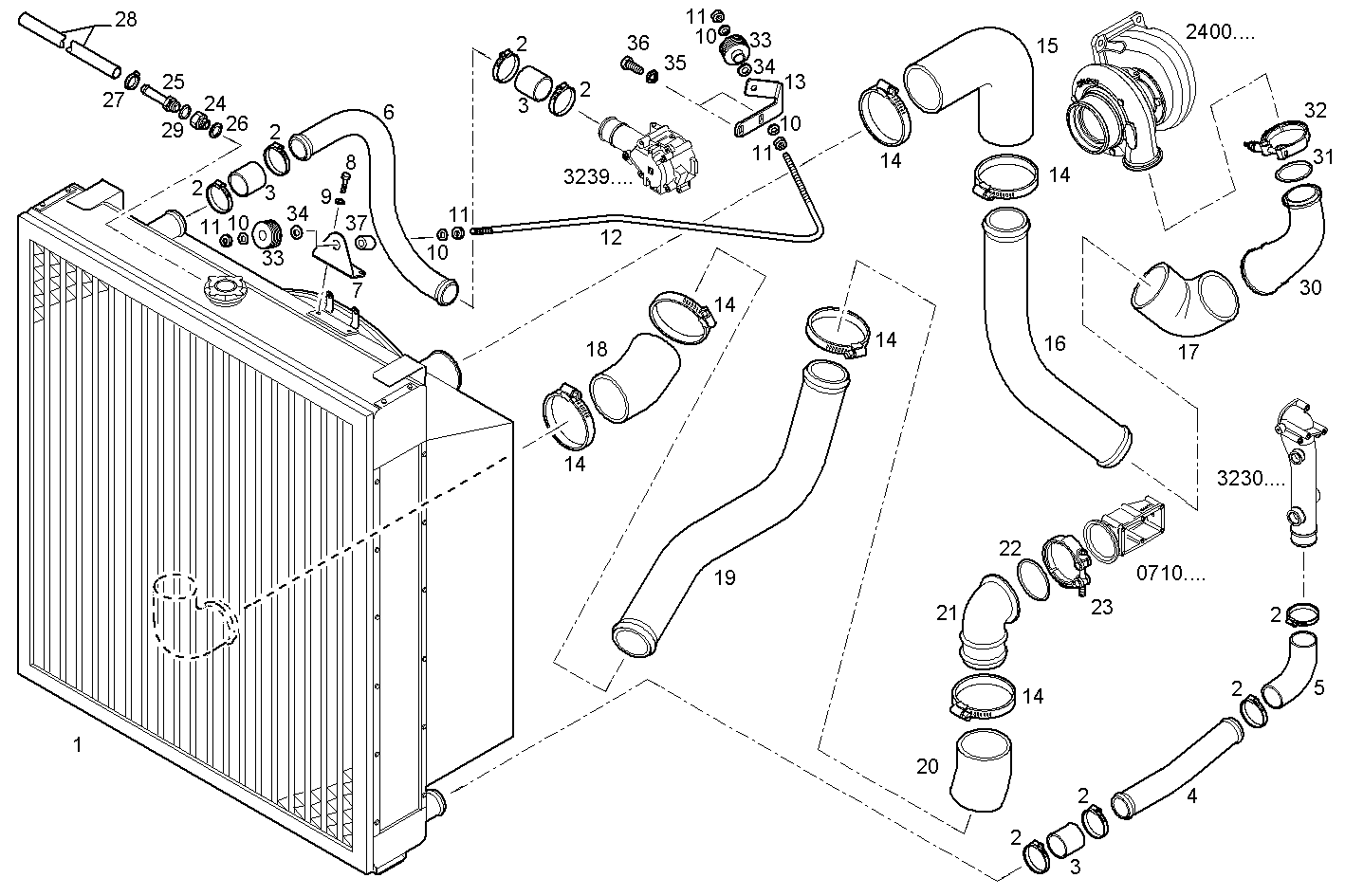

RADIATOR 2 CIRCUITS AIR/WATER
C10ENTX20.00A800 — CURSOR 10 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036038 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17765091 | CLIP CLIP | 8 | |
| 3 | 98421391 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 4 | 8042060 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8041922 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 8042565 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8019397 | RETAINER RETAINER | 1 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 17091074 | WASHER WASHER | 4 | |
| 11 | 17038425 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 8043420 | TIE ROD TIE ROD | 1 | |
| 13 | 8041985 | RETAINER RETAINER | 1 | |
| 14 | 4788410 | CLIP CLIP | 6 | |
| 15 | 8043728 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 8044489 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 17 | 8043612 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 18 | 8044863 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 8044864 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 8030531 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 21 | 8041915 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 22 | 17291281 | O-RING O-RING | 1 | |
| 23 | 99435103 | CLIP CLIP | 1 | |
| 24 | 4935727 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 4935134 | OIL LINE OIL LINE | 1 | |
| 26 | 4858607 | WASHER WASHER | 1 | |
| 27 | 18087993 | CLIP CLIP | 2 | |
| 28 | 8034635 | BREATHER PIPE BREATHER PIPE | 1 | |
| 29 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 30 | 61318365 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 31 | 17284681 | O-RING O-RING | 1 | |
| 32 | 4800661 | CLIP CLIP | 1 | |
| 33 | 741569 | RUBBER PAD RUBBER PAD | 2 | |
| 34 | 741570 | WASHER WASHER | 2 | |
| 35 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 36 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 37 | 741571 | SPACING BAR SPACING BAR | 1 |
