ACCESSORIES
C10ENTX20.00A801 — CURSOR 10 - TIER 3

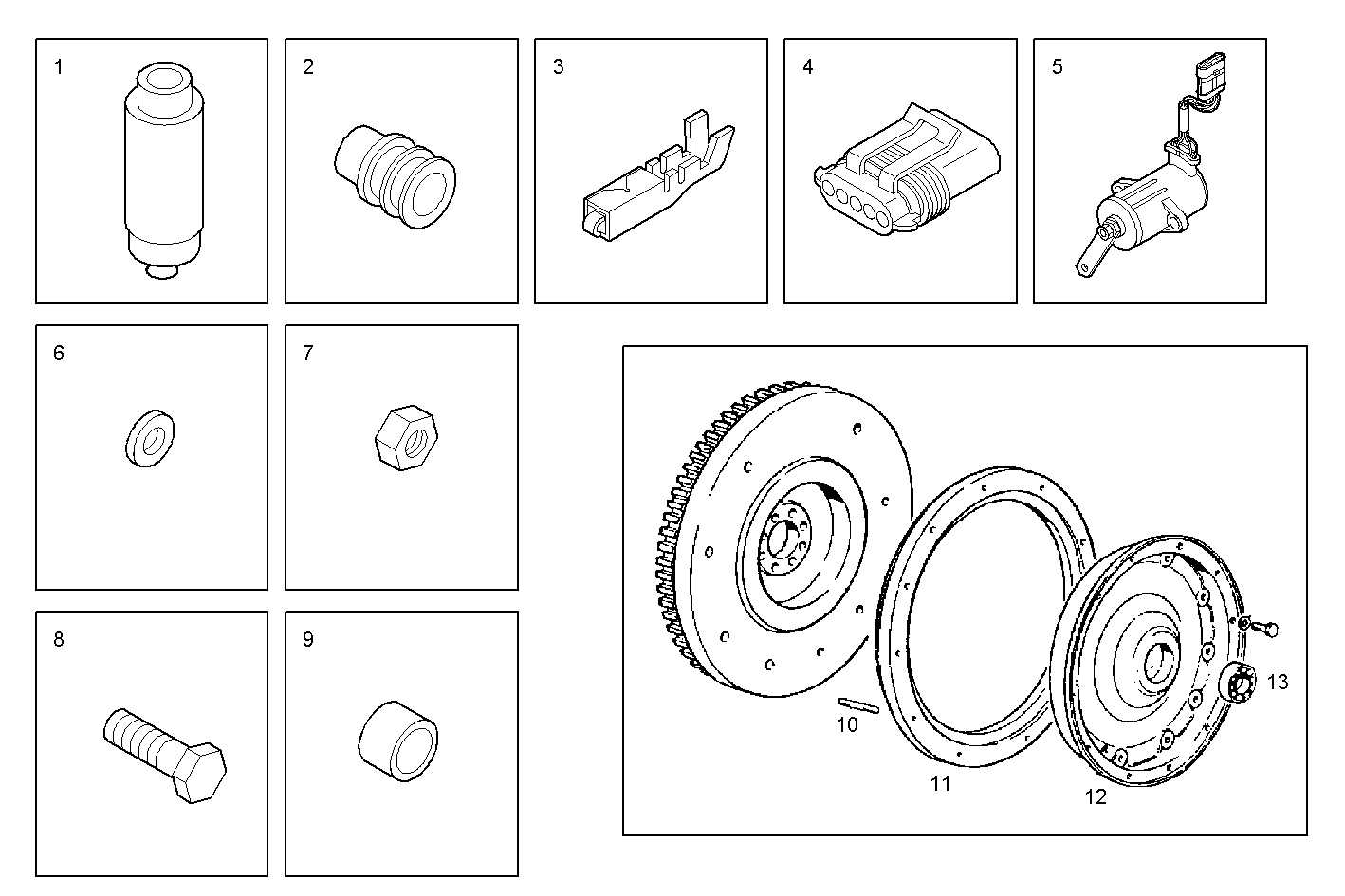

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 12332087 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 2 | 12332885 | GASKET GASKET | 5 | |
| 3 | 12331654 | TERMINAL TERMINAL | 5 | |
| 4 | 8031313 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 5 | 500388702 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 17038131 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 16693924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 9 | 8101556 | SPACING BAR SPACING BAR | 2 | |
| 10 | 17368924 | STUD STUD | 12 | |
| 11 | 4931829 | SPACING BAR SPACING BAR | 1 | |
| 12 | 8011762 | FLANGE FLANGE | 1 | |
| 13 | 8005041 | DRIVE BEARING DRIVE BEARING | 1 |
