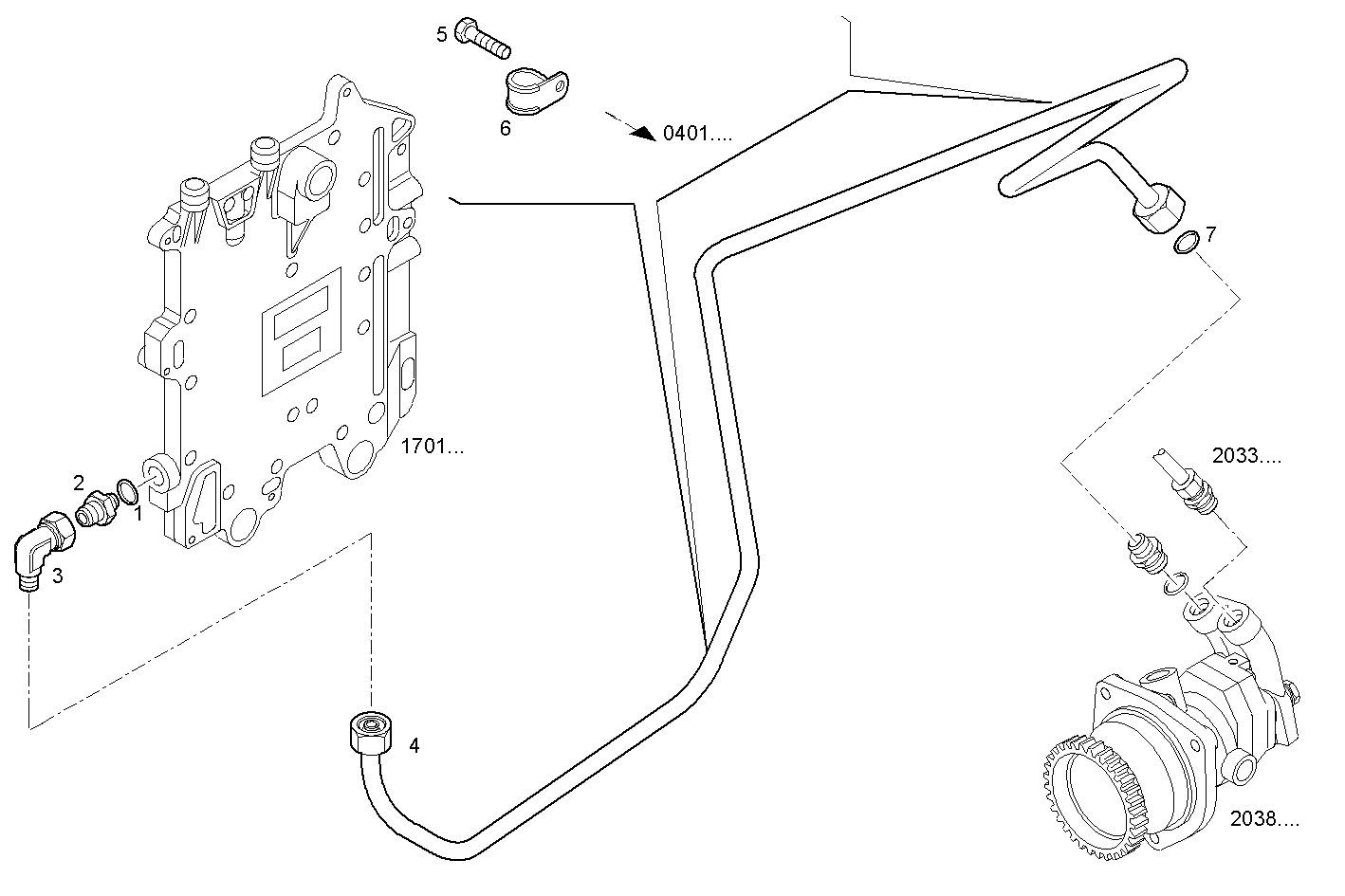

FUEL LINES - INLET TO FUEL PUMP
C10ENTX60.00 — CURSOR 10 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489019 | WASHER WASHER | 1 | |
| 2 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 3 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 4 | 504200500 | FUEL LINE FUEL LINE | 1 | |
| 5 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17316592 | PIPE CLIP PIPE CLIP | 2 | |
| 7 | 98474309 | WASHER WASHER | 1 |
