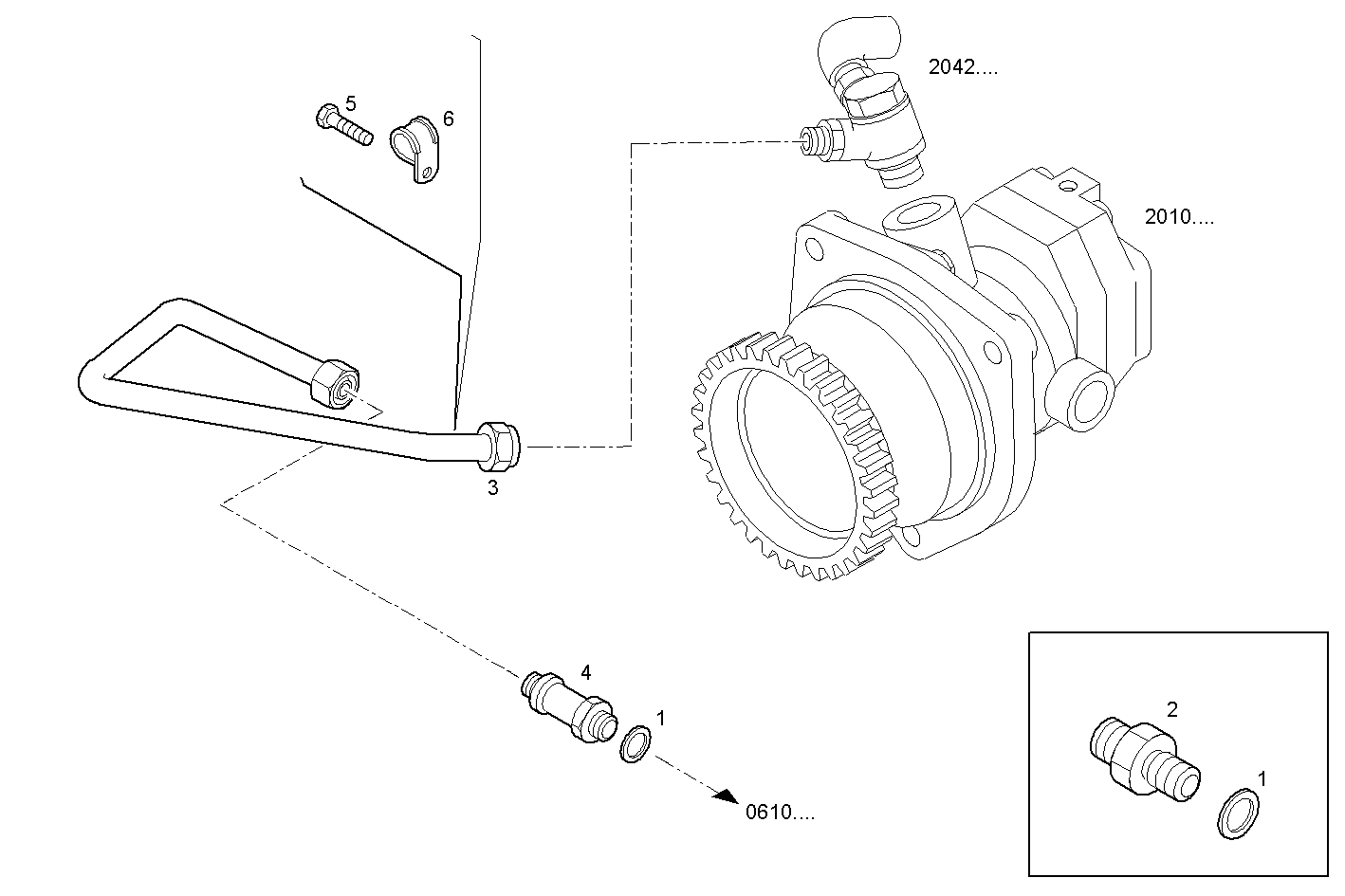

FUEL LINES - RETURN TO FUEL PUMP
CURSOR10TE1.X001 — CURSOR 10 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489019 | WASHER WASHER | 2 | |
| 2 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 3 | 504200577 | FUEL LINE FUEL LINE | 1 | |
| 4 | 500310076 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17316592 | PIPE CLIP PIPE CLIP | 1 |
