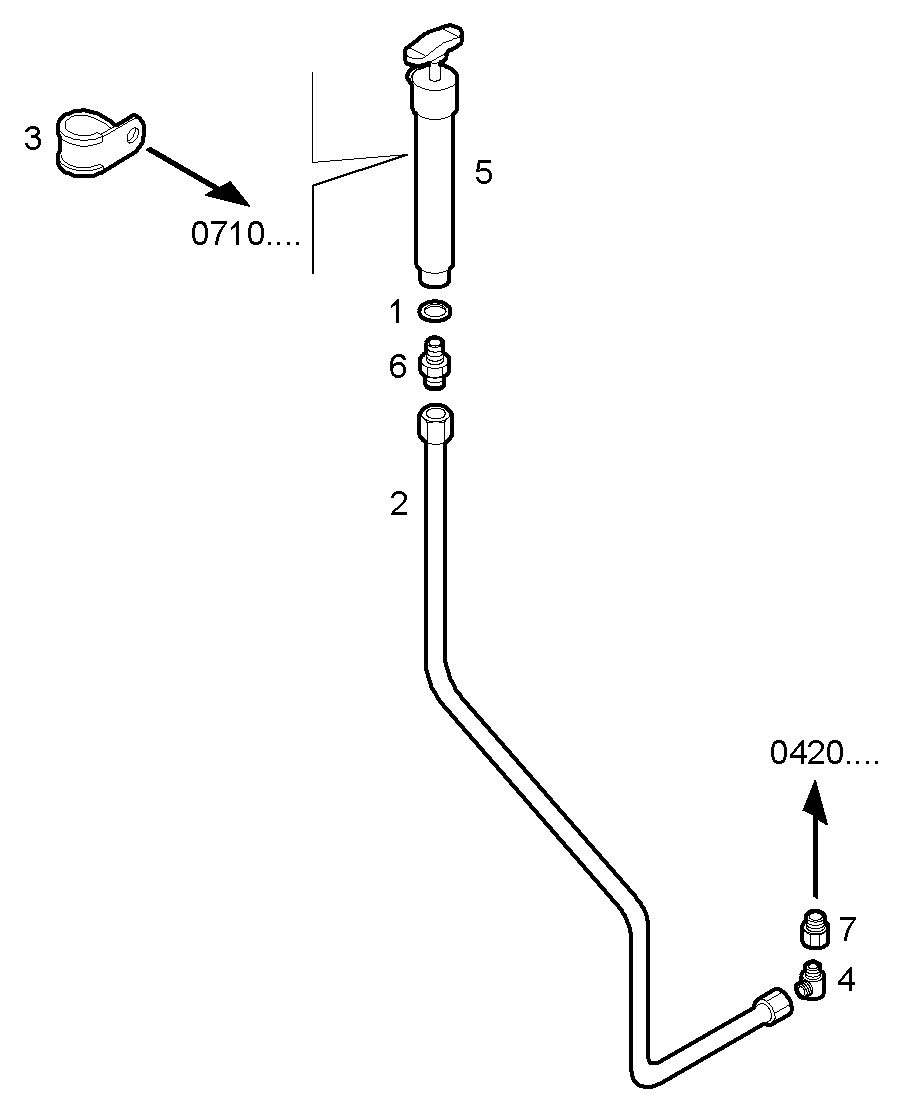

OIL OUTLET PUMP
CURSOR10TE1.X001 — CURSOR 10 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489019 | WASHER WASHER | 1 | |
| 2 | 8042803 | OIL LINE OIL LINE | 1 | |
| 3 | 8038555 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 4 | 8030711 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 6 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 7 | 4935200 | PIPE SOCKET PIPE SOCKET | 1 |
