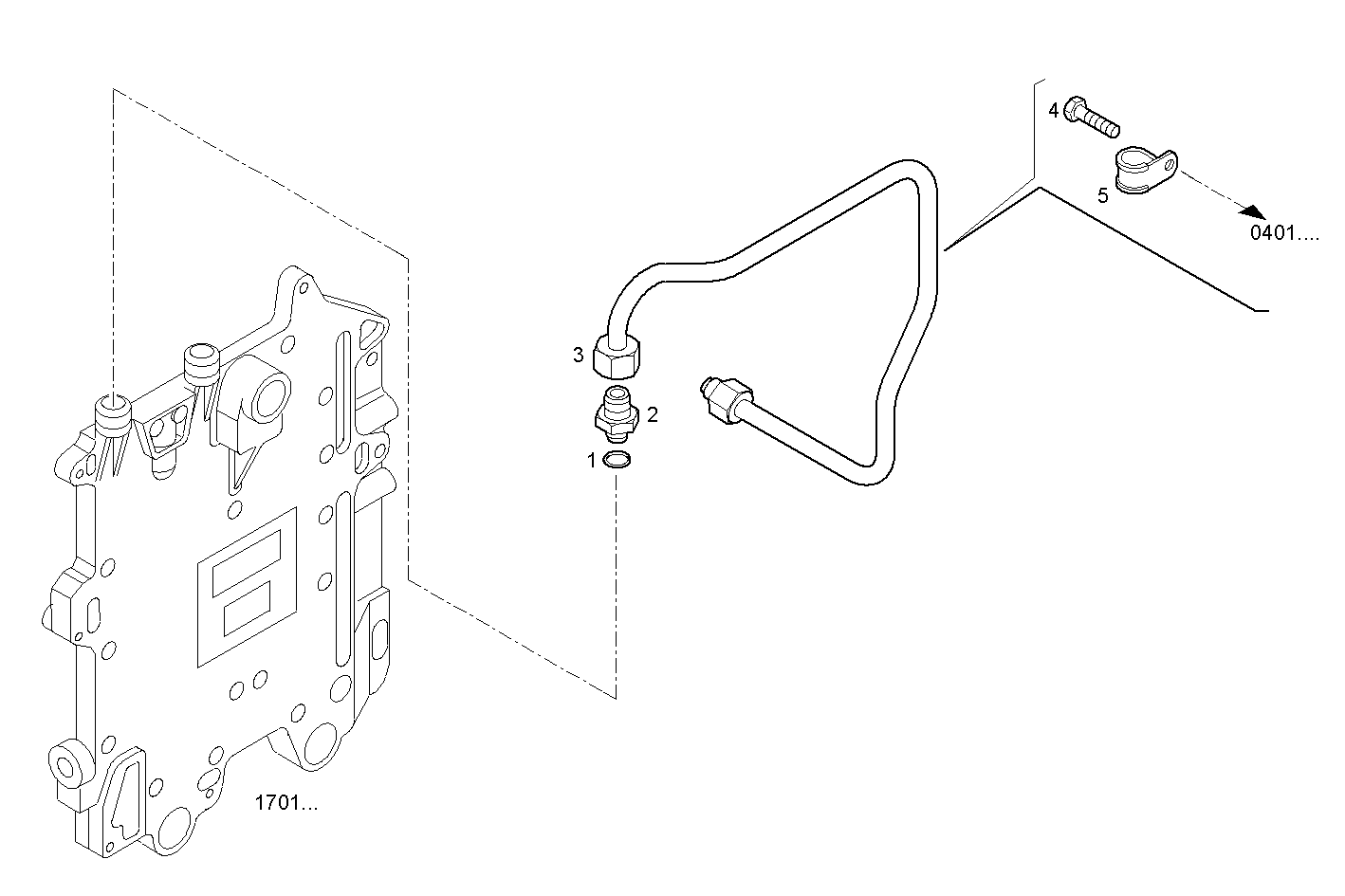

FUEL LINES - INLET TO E.C.U.
F3AE9687B*E001 — CURSOR 10 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489019 | WASHER WASHER | 1 | |
| 2 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 3 | 504146524 | FUEL LINE FUEL LINE | 1 | |
| 4 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17316592 | PIPE CLIP PIPE CLIP | 2 |
