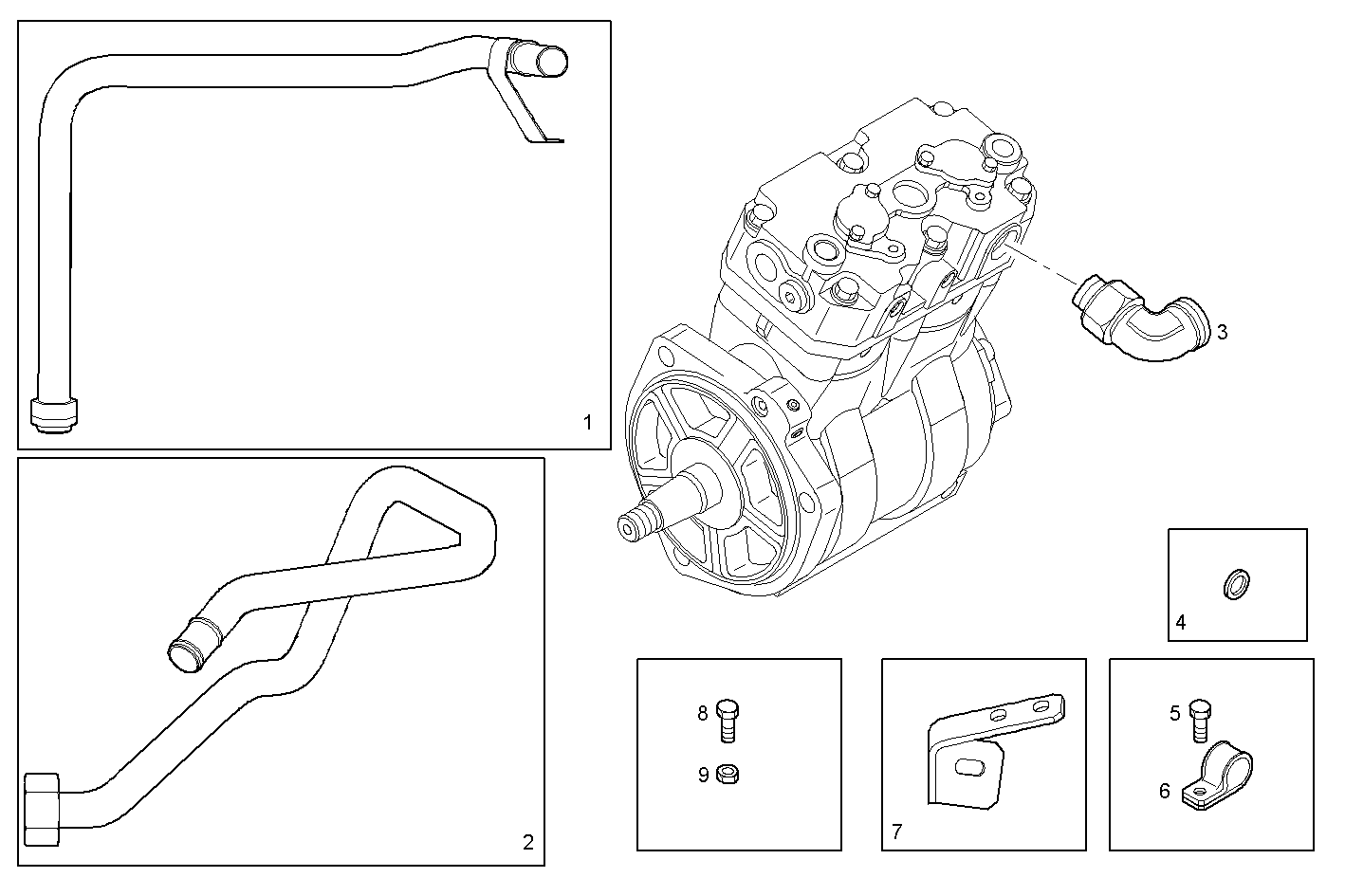

AIR COMPESSOR SUCTION
F3BE0681M*B722 — CURSOR 13 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500354438 | SUCTION LINE SUCTION LINE | 1 | |
| 2 | 504010338 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 3 | 99456380 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 4 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17317390 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 7 | 41218148 | SUPPORT SUPPORT | 1 | |
| 8 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 16750235 | HEXAGON NUT HEXAGON NUT | 3 |
