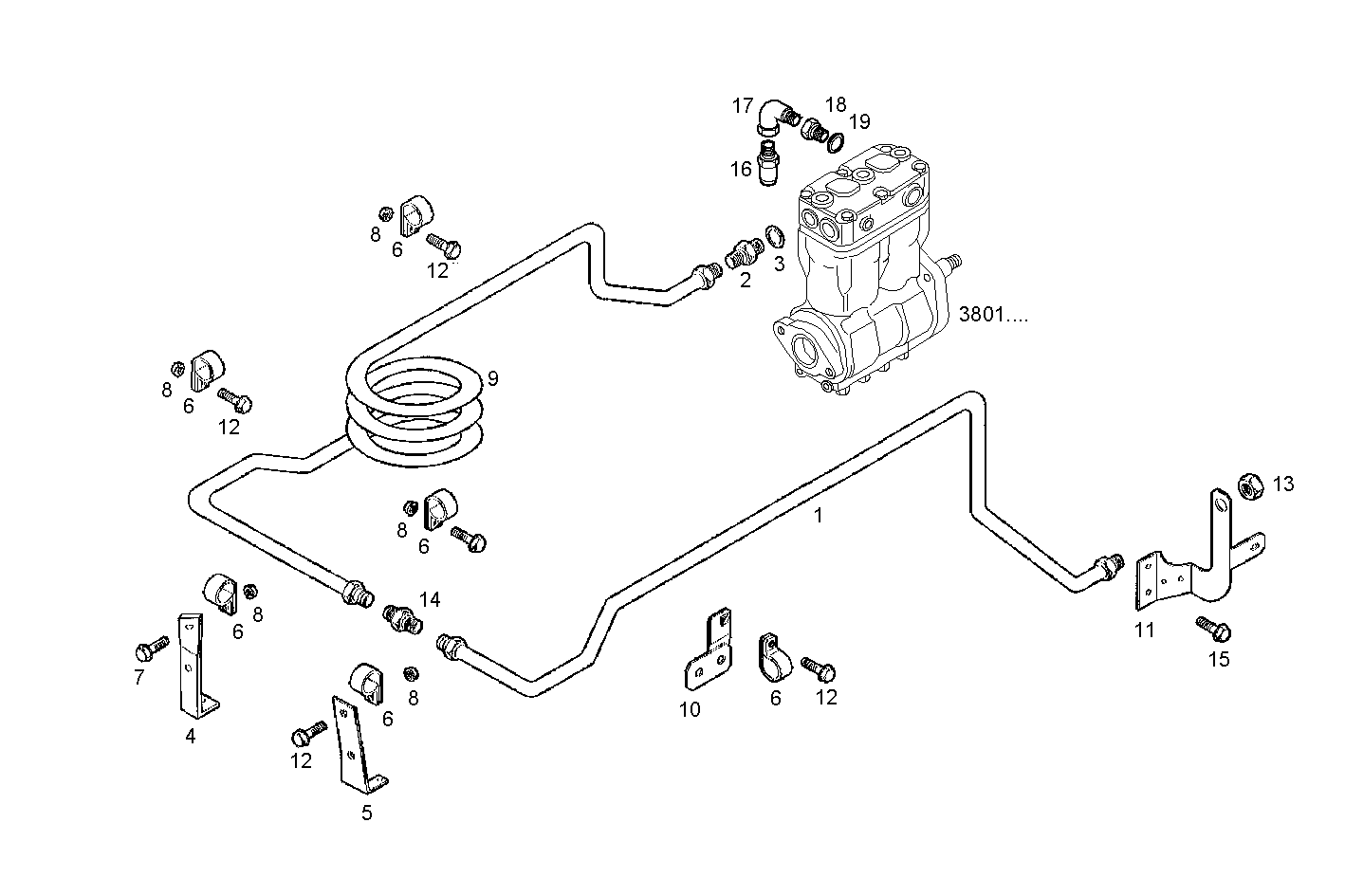

COMPRESSOR LINE SYSTEM
F3BE0681M*B722 — CURSOR 13 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41231261 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 61599713 | THREADED UNION THREADED UNION | 1 | |
| 3 | 16508560 | WASHER WASHER | 1 | |
| 4 | 41231269 | SUPPORT SUPPORT | 1 | |
| 5 | 504033965 | SUPPORT SUPPORT | 1 | |
| 6 | 41202595 | FASTENING BRACKET FASTENING BRACKET | 6 | |
| 7 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17044735 | NUT NUT | 5 | |
| 9 | 41232011 | LINE LINE | 1 | |
| 10 | 500361656 | SUPPORT SUPPORT | 1 | |
| 11 | 41231259 | SUPPORT SUPPORT | 1 | |
| 12 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 13 | 16509111 | NUT NUT | 1 | |
| 14 | 16502014 | THREADED UNION THREADED UNION | 1 | |
| 15 | 18138325 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 16 | 42087093 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 98427977 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 18 | 99476542 | THREADED UNION THREADED UNION | 1 | |
| 19 | 16508060 | SEAL GASKET SEAL GASKET | 1 |
