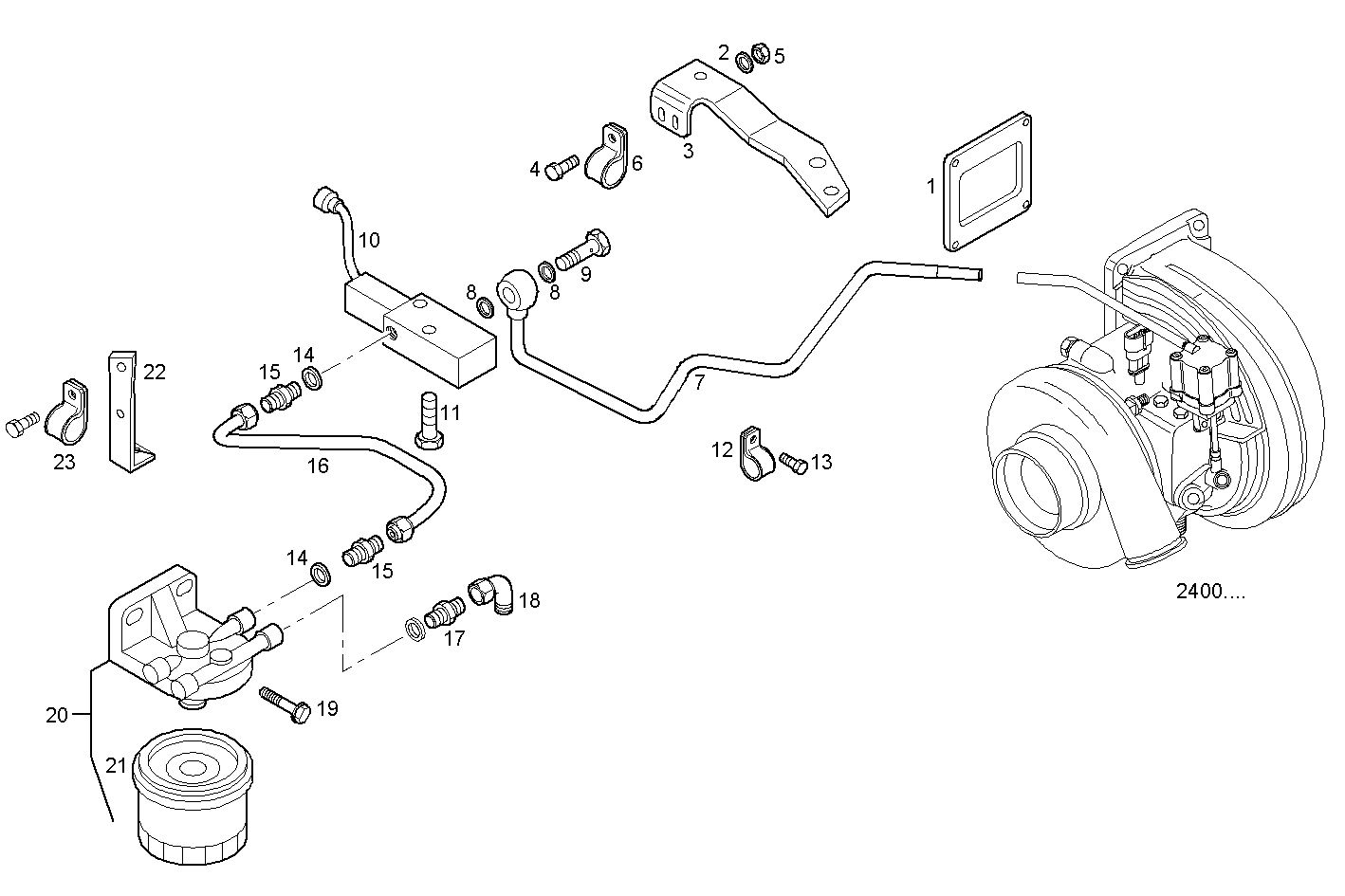

CONTROL VALVE
F3BE0681M*B722 — CURSOR 13 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98451118 | GASKET GASKET | 1 | |
| 2 | 17088774 | WASHER WASHER | 1 | |
| 3 | 504056221 | RETAINER RETAINER | 1 | |
| 4 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17152725 | NUT NUT | 1 | |
| 6 | 17315699 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 7 | 504036101 | WATER PIPE WATER PIPE | 1 | |
| 8 | 98474306 | WASHER WASHER | 2 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 10 | 504203275 | VALVE VALVE | 1 | |
| 11 | 16591925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17316392 | CLIP CLIP | 2 | |
| 13 | 16597924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 99489018 | SEAL GASKET SEAL GASKET | 2 | |
| 15 | 504081276 | THREADED UNION THREADED UNION | 2 | |
| 16 | 500344424 | PIPE PIPE | 1 | |
| 17 | 41285128 | THREADED UNION THREADED UNION | 1 | |
| 18 | 41029796 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 19 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 500344293 | FILTER AIR FILTER AIR | 1 | |
| 21 | 500339085 | FILTERING CARTRIDGE FILTERING CARTRIDGE | 1 | |
| 22 | 41231269 | SUPPORT SUPPORT | 1 | |
| 23 | 500391414 | FASTENING BRACKET FASTENING BRACKET | 1 |
