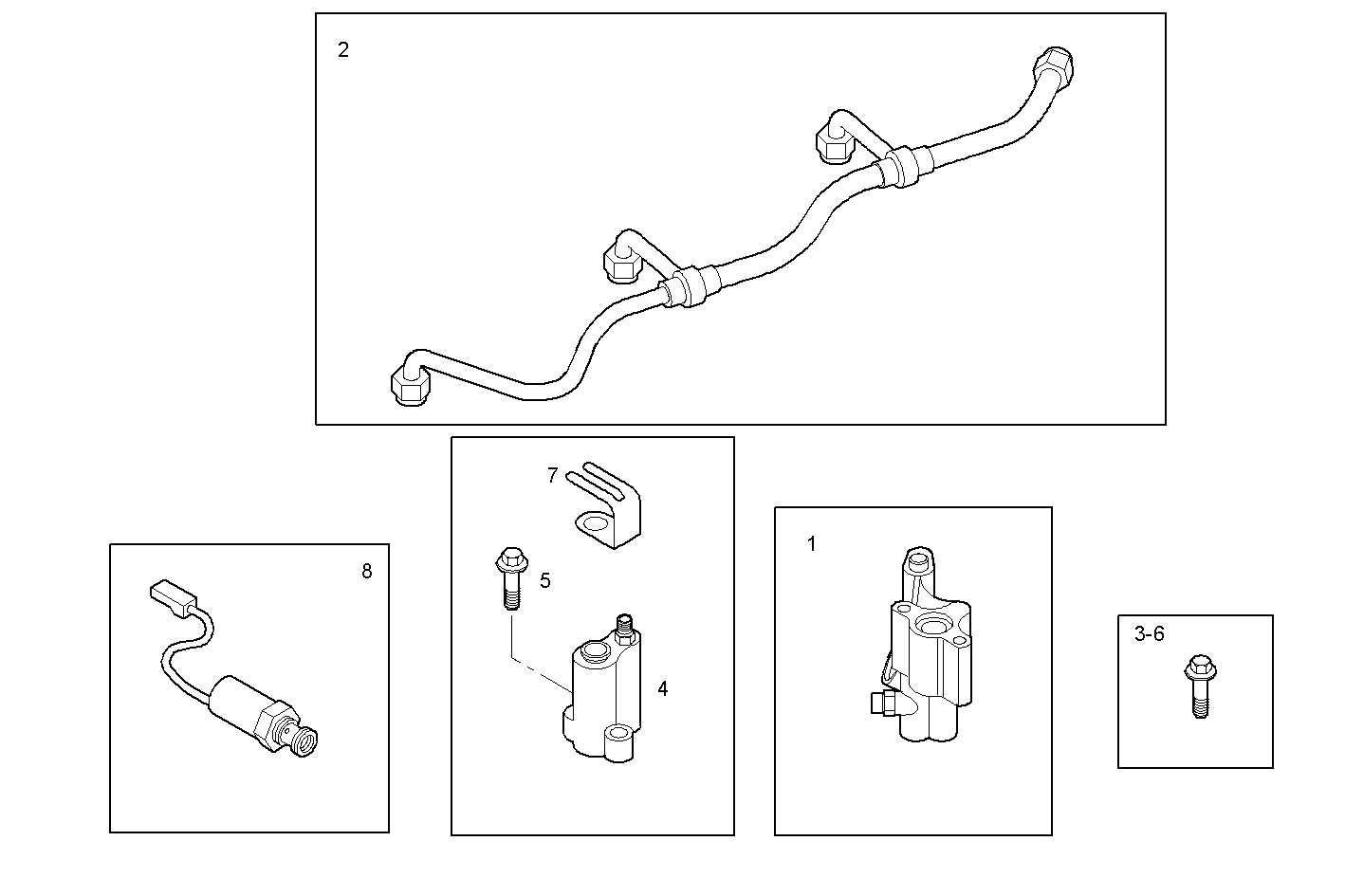

ENGINE EXHAUST BRAKE
F3BE0681M*B722 — CURSOR 13 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504222833 | ENGINE BRAKE VALVE ENGINE BRAKE VALVE | 1 | |
| 2 | 500336756 | OIL LINE OIL LINE | 2 | |
| 3 | 16691324 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 4 | 504222834 | ENGINE BRAKE VALVE ENGINE BRAKE VALVE | 5 | |
| 5 | 16707334 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 10 | |
| 6 | 16691724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 7 | 500376911 | RETAINING SPRING RETAINING SPRING | 6 | |
| 8 | 99478611 | ELECTROVALVE ELECTROVALVE | 1 |
