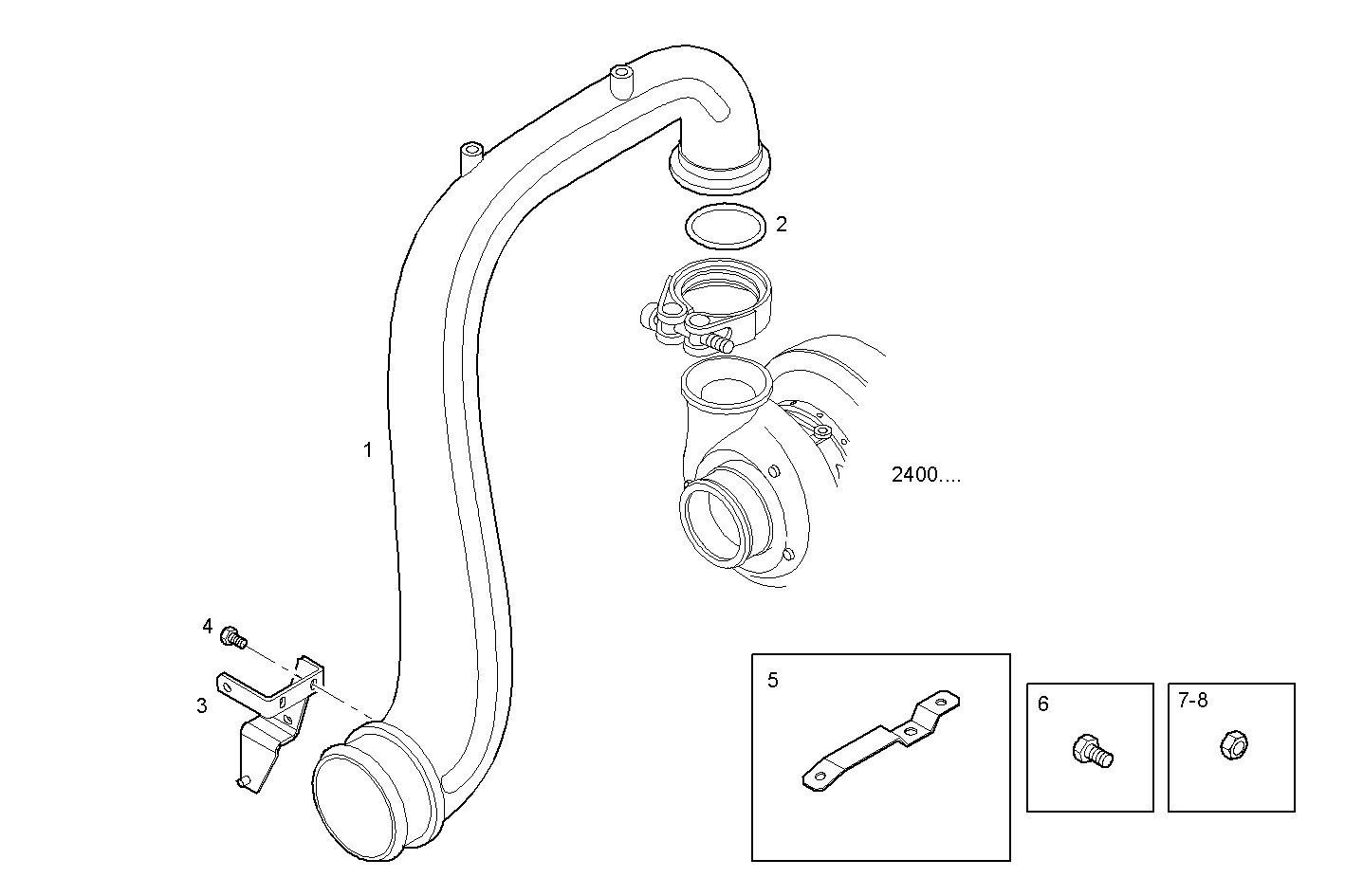

EXIT AIR PIPE
F3BE0681M*B722 — CURSOR 13 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500398426 | PIPE PIPE | 1 | |
| 2 | 17284681 | O-RING O-RING | 1 | |
| 3 | 41270498 | SUPPORT SUPPORT | 1 | |
| 4 | 16673535 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 504031291 | SUPPORT SUPPORT | 1 | |
| 6 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17044725 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 16750235 | HEXAGON NUT HEXAGON NUT | 2 |
