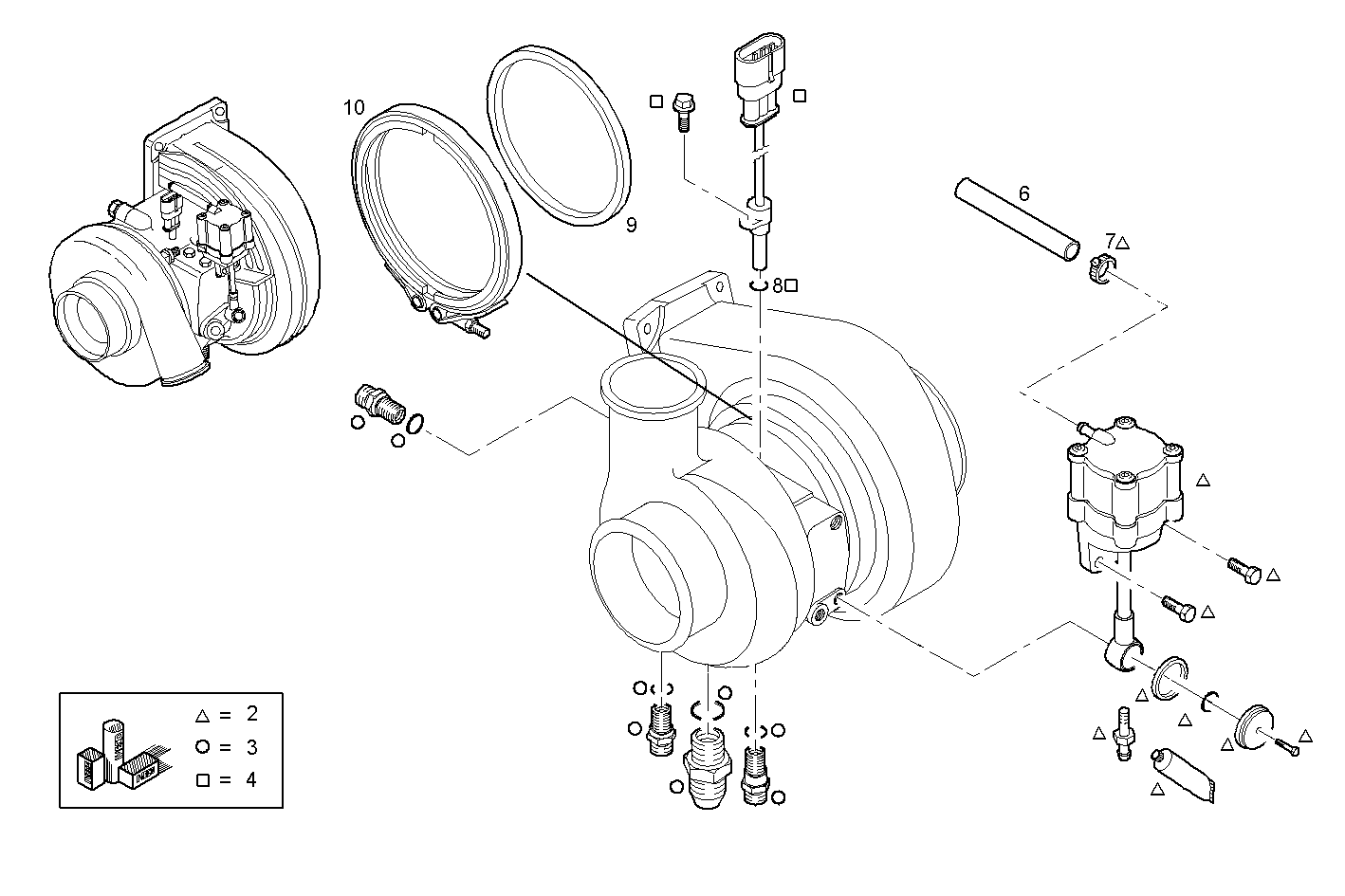

TURBOCHARGER
F3BE0681M*B722 — CURSOR 13 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 2 | 42554897 | KIT-VARIAB.GEOM.TURB KIT-VARIAB.GEOM.TURB | 1 | |
| 3 | 42539402 | KIT-VARIAB.GEOM.TURB KIT-VARIAB.GEOM.TURB | 1 | |
| 4 | 42539403 | KIT-VARIAB.GEOM.TURB KIT-VARIAB.GEOM.TURB | 1 | |
| 6 | 99475987 | HOSE HOSE | 1 | |
| 7 | 500332605 | CLIP CLIP | 1 | |
| 8 | 42535828 | O-RING O-RING | 1 | |
| 9 | 42546381 | WASHER WASHER | 1 | |
| 10 | 42546380 | CLIP CLIP | 1 |
