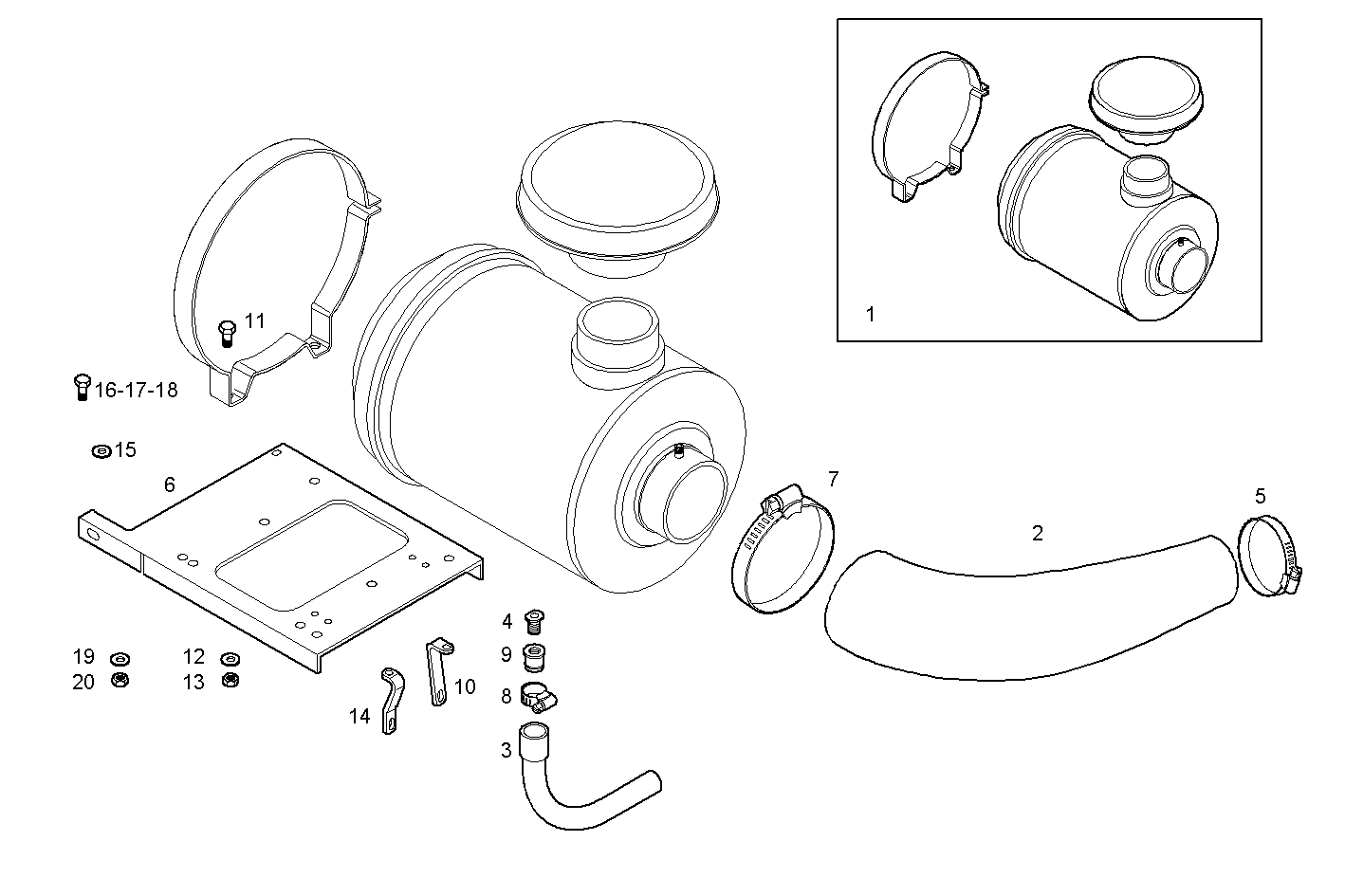

AIR CLEANER
C13ENTI20.00A100 — CURSOR 13 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037875 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8040929 | FILTER HOSE FILTER HOSE | 1 | |
| 3 | 8041545 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 8015315 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 17765892 | HOSE CLIP HOSE CLIP | 1 | |
| 6 | 8040926 | SUPPORT SUPPORT | 1 | |
| 7 | 17766393 | CLIP CLIP | 1 | |
| 8 | 17764791 | CLIP CLIP | 2 | |
| 9 | 17037925 | HEXAGON NUT HEXAGON NUT | 6 | |
| 9 | 8015133 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8040928 | RETAINER RETAINER | 2 | |
| 11 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17091074 | WASHER WASHER | 4 | |
| 13 | 17038425 | HEXAGON NUT HEXAGON NUT | 4 | |
| 14 | 8040927 | RETAINER RETAINER | 1 | |
| 15 | 17816214 | SPACER SPACER | 1 | |
| 16 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 17 | 16605724 | SCREW SCREW | 1 | |
| 18 | 16605424 | SCREW SCREW | 3 | |
| 20 | 17089474 | SPRING WASHER SPRING WASHER | 1 |
