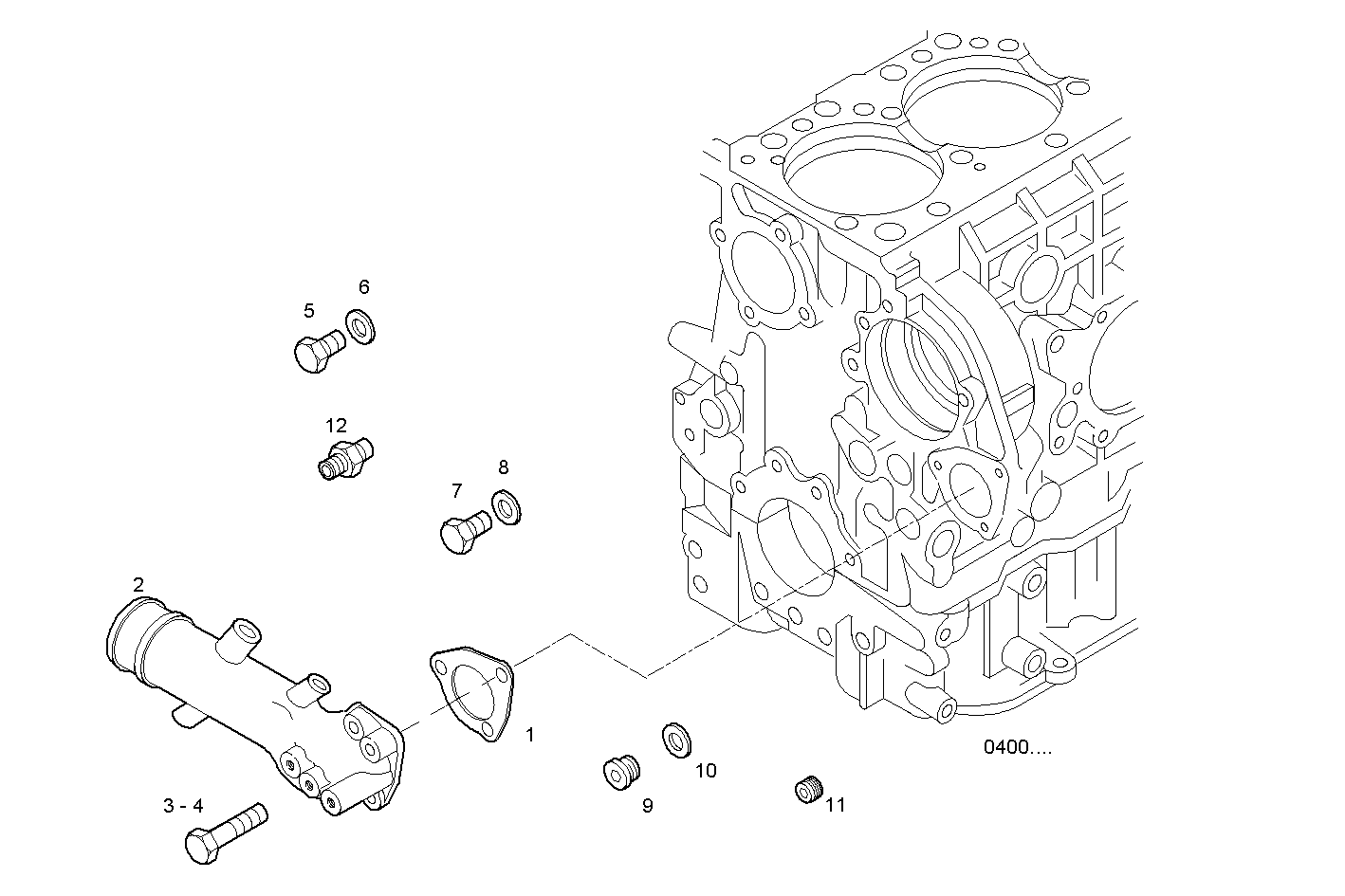

WATER LINES
C13ENTI20.00A100 — CURSOR 13 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99466940 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 99478887 | WATER PIPE WATER PIPE | 1 | |
| 3 | 16674934 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16674434 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 16992415 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 99489019 | WASHER WASHER | 2 | |
| 7 | 16992515 | THREADED PLUG THREADED PLUG | 2 | |
| 8 | 99489020 | SEAL GASKET SEAL GASKET | 2 | |
| 9 | 16993011 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 99434480 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 99430692 | THREADED PLUG THREADED PLUG | 2 | |
| 12 | 99464284 | PIPE SOCKET PIPE SOCKET | 1 |
