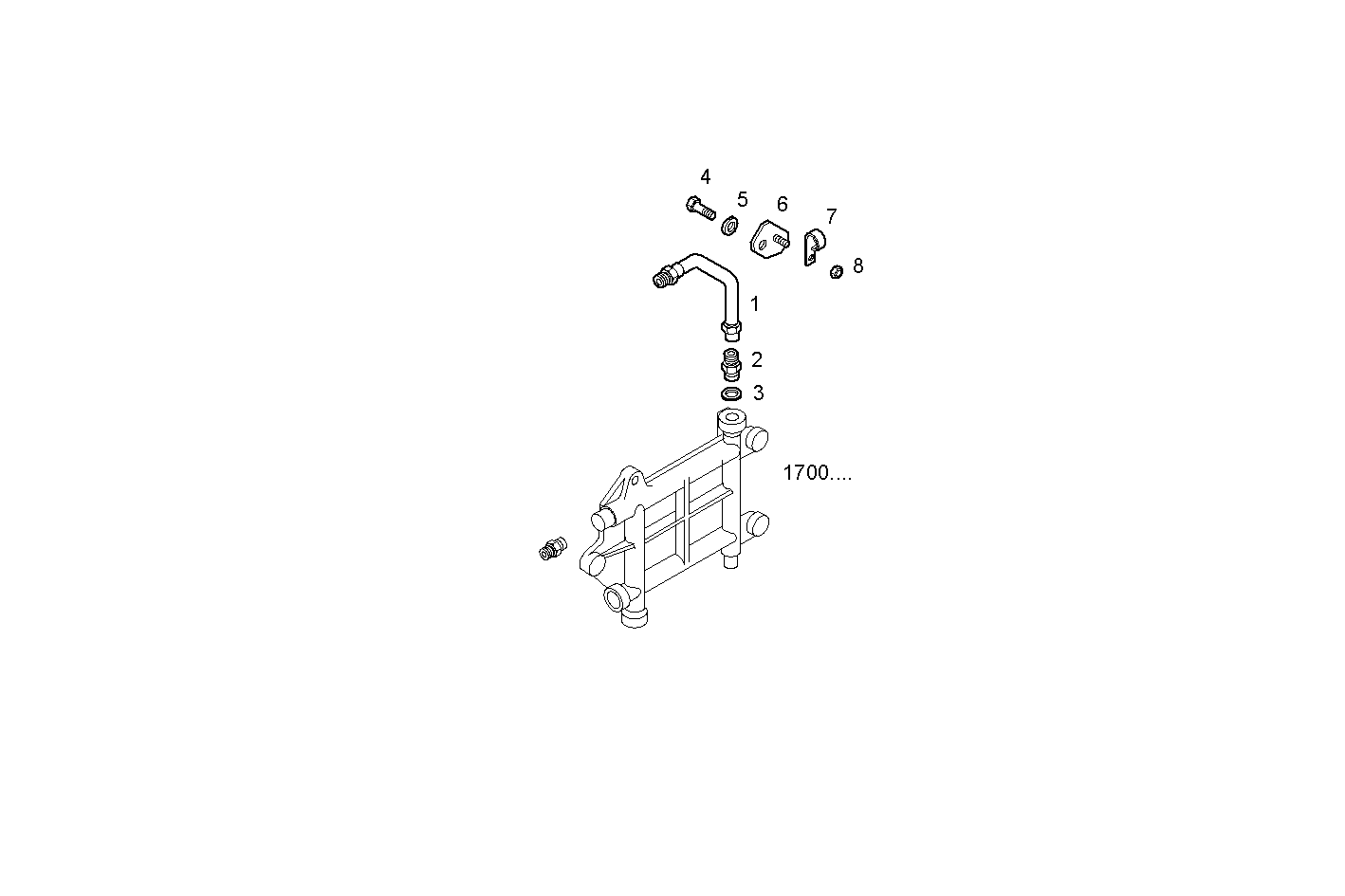

FUEL LINES - INLET TO E.C.U.
F3BE0684E*B101 — CURSOR 13 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504036098 | FUEL LINE FUEL LINE | 1 | |
| 2 | 16500314 | THREADED UNION THREADED UNION | 1 | |
| 3 | 99489019 | WASHER WASHER | 1 | |
| 4 | 1112655 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17798674 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 41213491 | RETAINER RETAINER | 1 | |
| 7 | 17316599 | PIPE CLIP PIPE CLIP | 1 | |
| 8 | 17044725 | HEXAGON NUT HEXAGON NUT | 1 |
