SENSORS

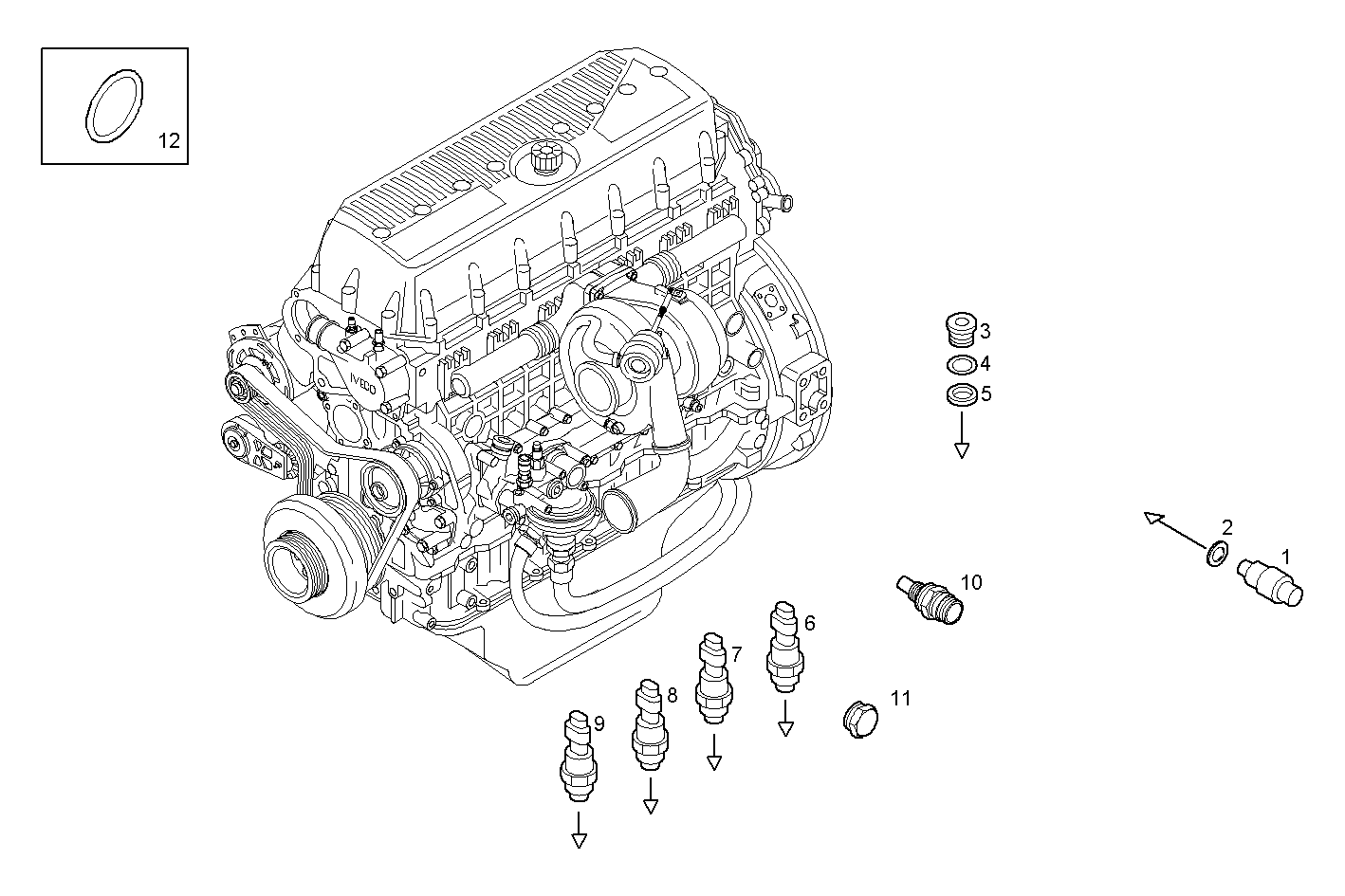

F3BE0684E*B101 — CURSOR 13 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500346371 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 2 | 99489018 | SEAL GASKET SEAL GASKET | 2 | |
| 3 | 500337200 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 500337199 | O-RING O-RING | 1 | |
| 5 | 17278181 | O-RING O-RING | 1 | |
| 6 | 98445111 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 7 | 98442879 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 8 | 500386057 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 9 | 504084761 | TRANSMITTER TRANSMITTER | 1 | |
| 10 | 500382599 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 11 | 504084571 | THREADED PLUG THREADED PLUG | 1 | |
| 12 | 17277881 | O-RING O-RING | 1 |
