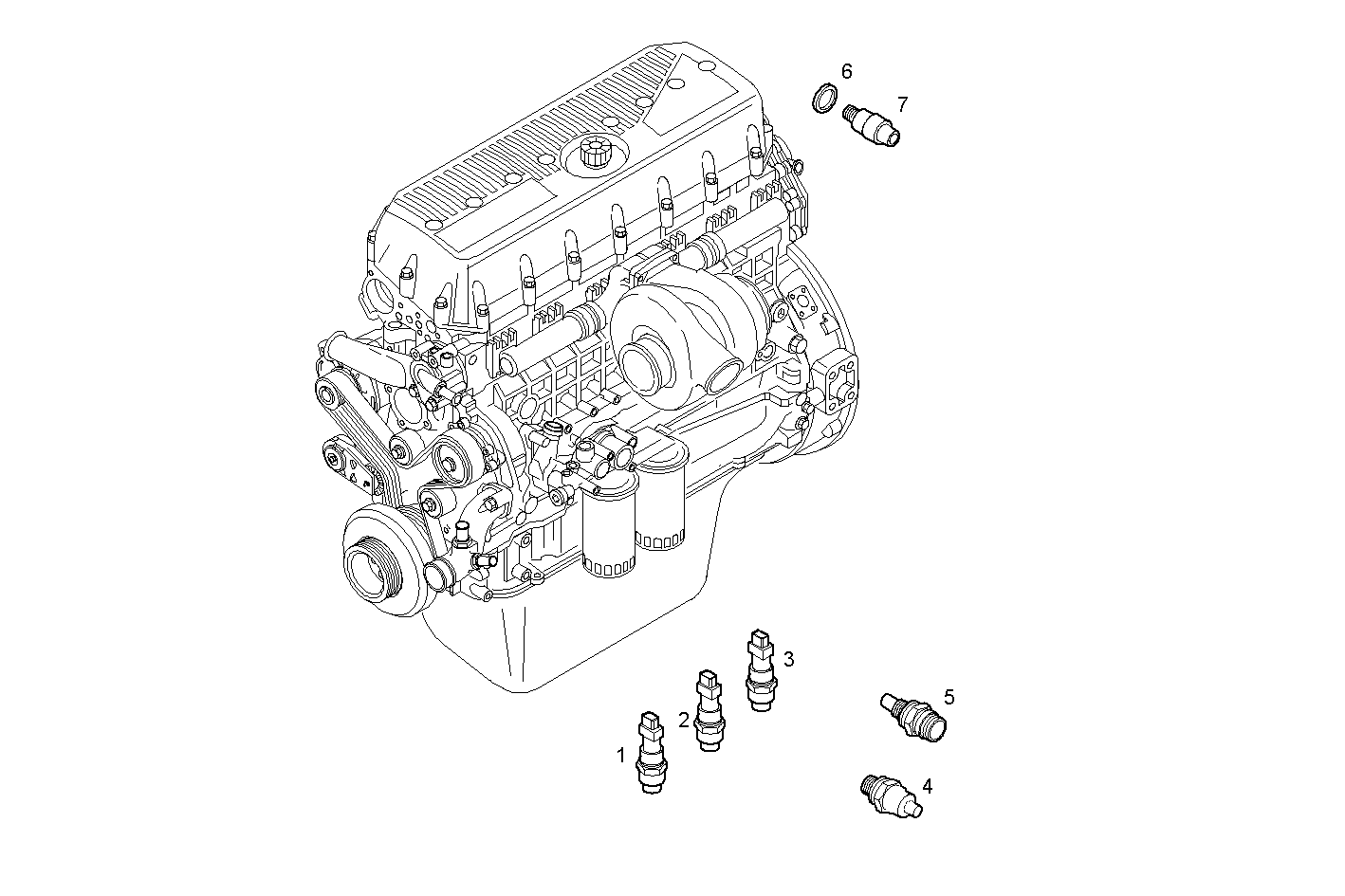

SENSORS
PUC13ENTD20.00A100 — CURSOR 13 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042846 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 500351609 | SENSOR SENSOR | 1 | |
| 3 | 98442879 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 4 | 8036275 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 500346074 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 7 | 500346371 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 8 | 98474309 | WASHER WASHER | 1 | |
| 9 | 4928113 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 98474308 | SEAL GASKET SEAL GASKET | 1 |
