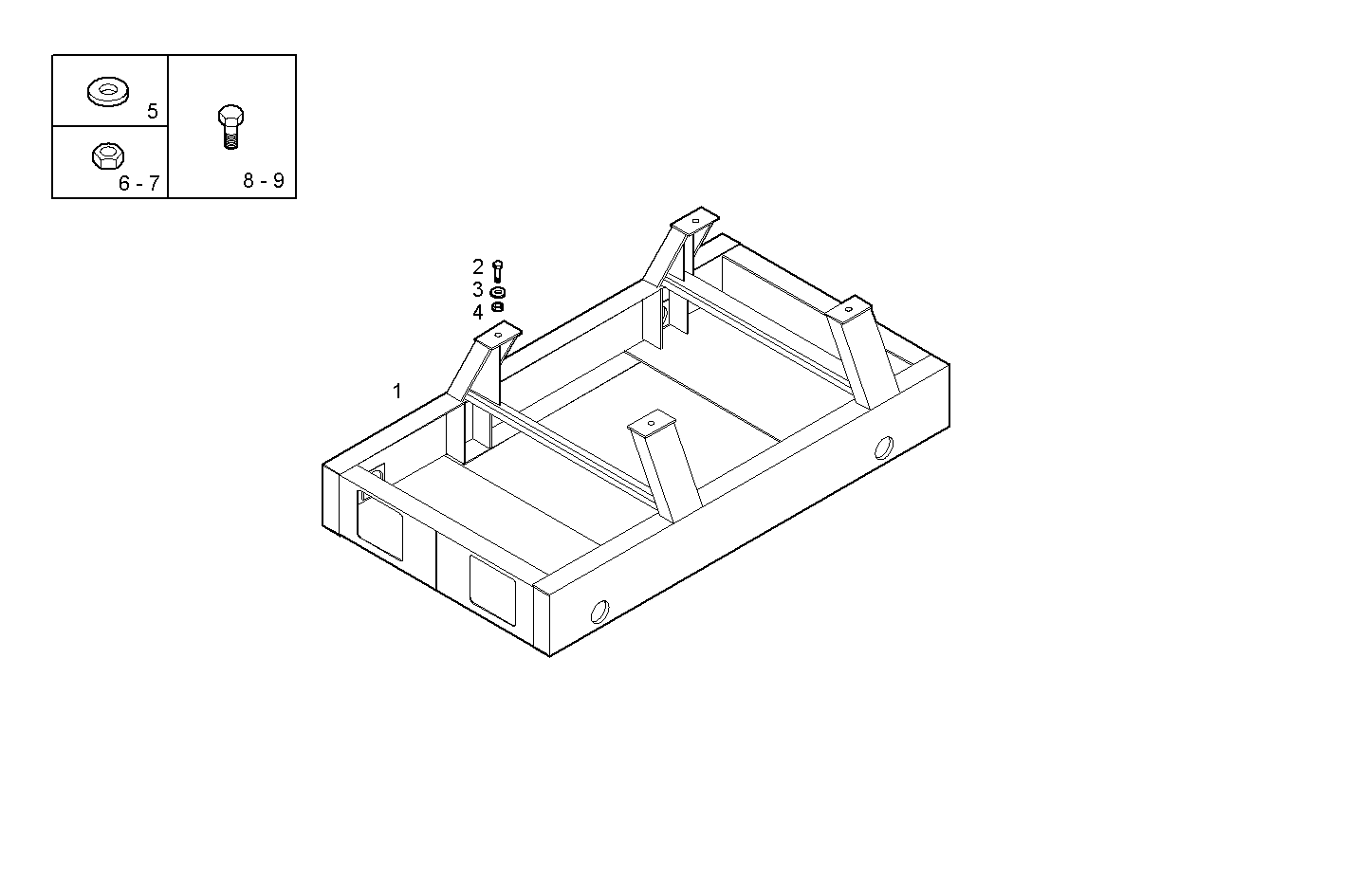

SUBBASE FOR ENGINE CLUTCH
PUC13ENTD20.00A100 — CURSOR 13 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040101 | SUBBSAE-SUPPORT FRAME SUBBSAE-SUPPORT FRAME | 1 | |
| 2 | 16617224 | SCREW SCREW | 4 | |
| 3 | 17092774 | WASHER WASHER | 4 | |
| 4 | 17039321 | NUT NUT | 4 | |
| 5 | 17093174 | WASHER WASHER | 4 | |
| 6 | 17039721 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 16620124 | SCREW SCREW | 2 | |
| 9 | 16619624 | SCREW SCREW | 2 |
