ACCESSORIES

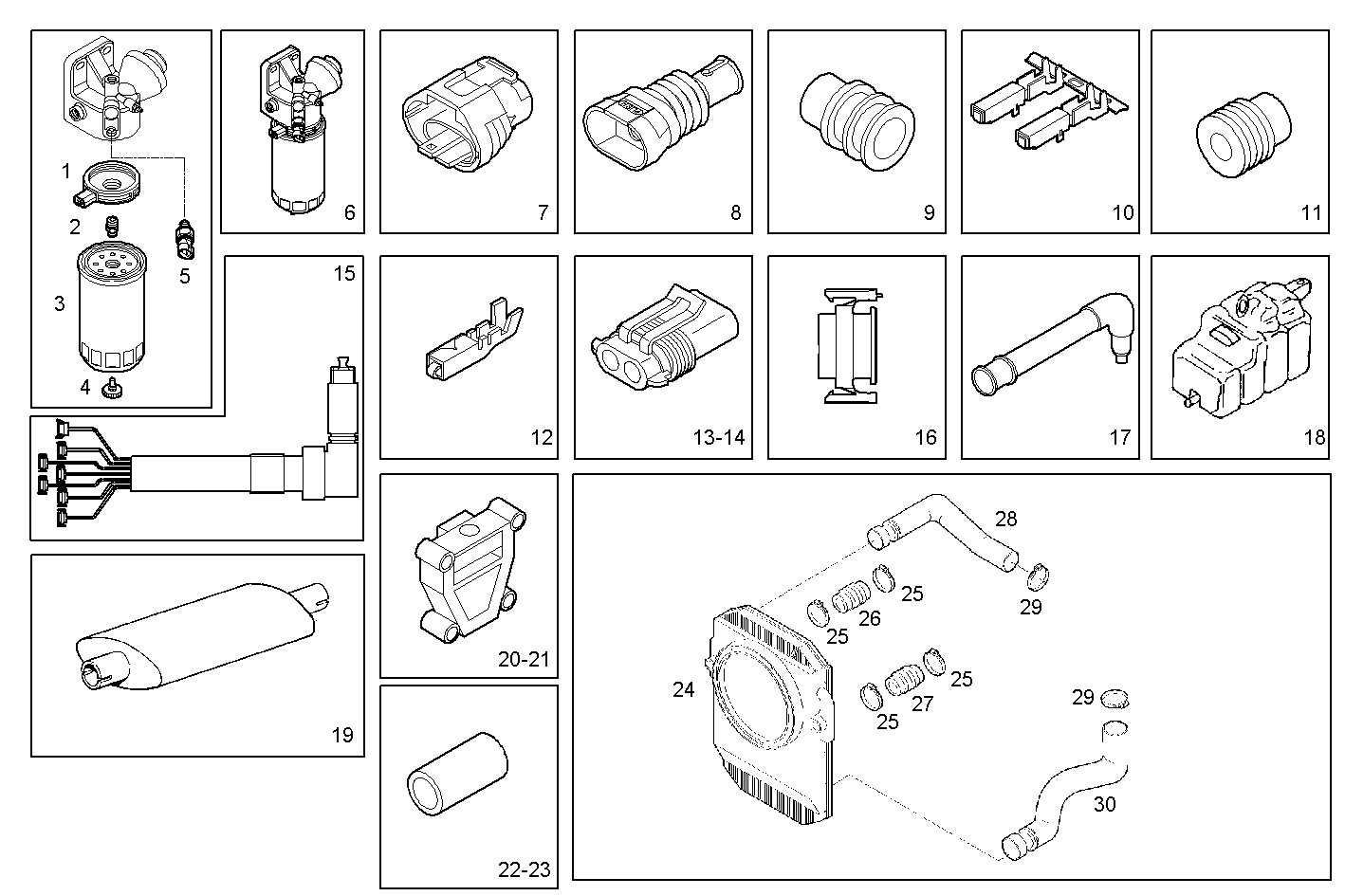

C13ENTX20.00A005 — CURSOR 13 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 42548584 | HEATER FUEL FILTE HEATER FUEL FILTE | 1 | |
| 2 | 42545832 | THREADED UNION THREADED UNION | 1 | |
| 3 | 2992662 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 4 | 42540203 | SENSOR SENSOR | 1 | |
| 5 | 504064817 | THERMOSWITCH THERMOSWITCH | 1 | |
| 6 | 504082414 | PREFILTER PREFILTER | 1 | |
| 7 | 99465498 | CONNECTION CONNECTION | 1 | |
| 8 | 99476793 | CAP CAP | 1 | |
| 9 | 99465962 | RUBBER BUSH RUBBER BUSH | 3 | |
| 10 | 99465966 | TERMINAL TERMINAL | 3 | |
| 11 | 12329982 | GASKET GASKET | 2 | |
| 12 | 12330144 | TERMINAL TERMINAL | 2 | |
| 13 | 8030571 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 14 | 12330587 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 15 | 8042255 | SET OF WIRING SET OF WIRING | 1 | |
| 16 | 8036219 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 17 | 41036658 | PIPE PIPE | 1 | |
| 18 | 8166285 | EXPANSION TANK EXPANSION TANK | 1 | |
| 19 | 42090557 | SILENCER SILENCER | 1 | |
| 20 | 500364187 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 21 | 500364191 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 22 | 42088621 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 23 | 41025819 | WATER PIPE WATER PIPE | 1 | |
| 24 | 504010144 | WATER RADIATOR WATER RADIATOR | 1 | |
| 25 | 17769391 | CLIP CLIP | 6 | |
| 26 | 41201190 | WATER HOSE WATER HOSE | 1 | |
| 27 | 99440309 | WATER HOSE WATER HOSE | 1 | |
| 28 | 41218108 | WATER PIPE WATER PIPE | 2 | |
| 29 | 17765391 | CLIP CLIP | 2 | |
| 30 | 504011594 | WATER PIPE WATER PIPE | 1 |
