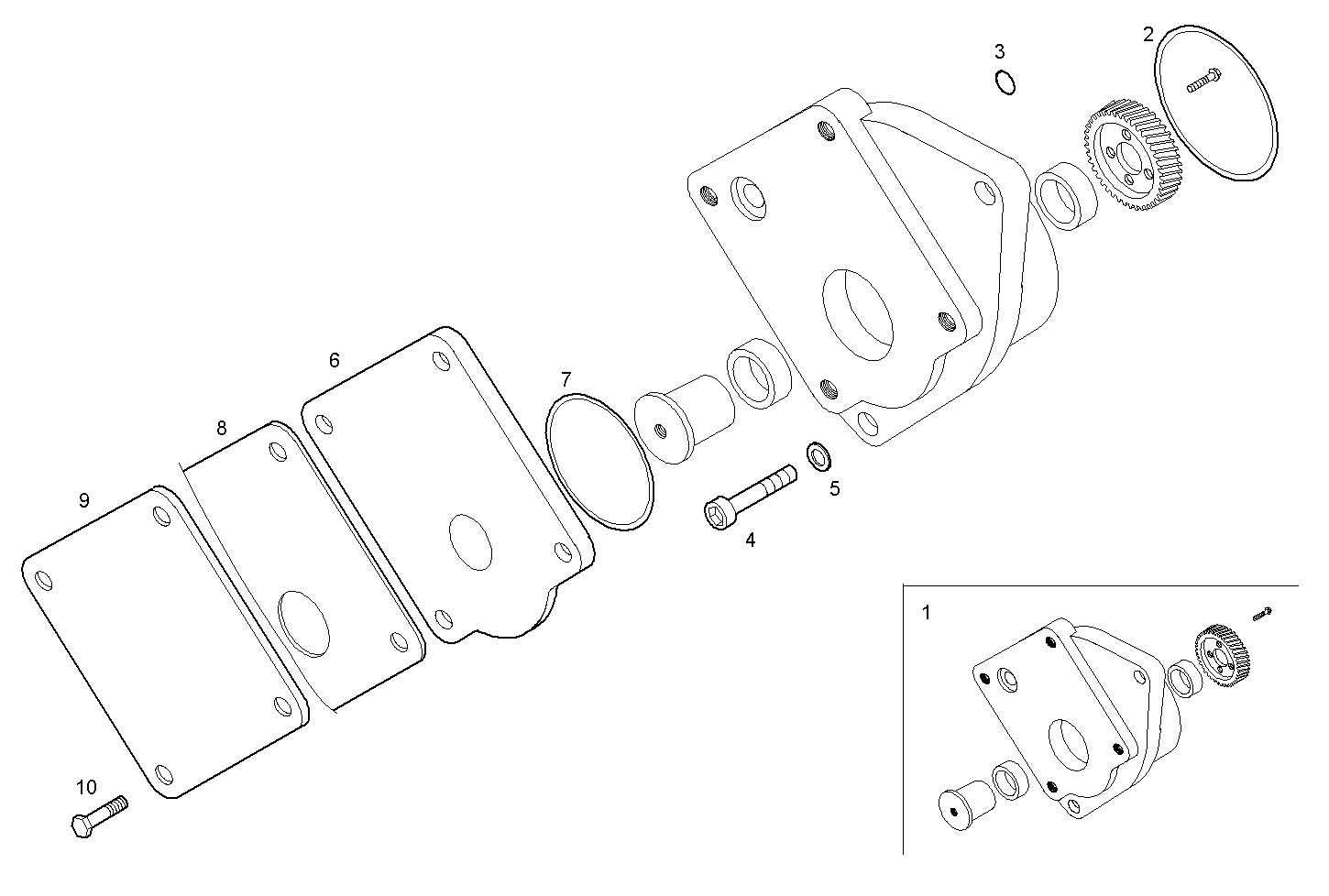

PTO ARRANGEMENT
C13ENTX20.00A005 — CURSOR 13 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504042471 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 2 | 17292281 | O-RING O-RING | 1 | |
| 3 | 17281381 | O-RING O-RING | 1 | |
| 4 | 16710834 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 5 | 17095224 | WASHER WASHER | 3 | |
| 6 | 504020638 | SPACING BAR SPACING BAR | 1 | |
| 7 | 504042516 | O-RING O-RING | 1 | |
| 8 | 8009914 | GASKET GASKET | 1 | |
| 9 | 504020736 | PTO COVER PTO COVER | 1 | |
| 10 | 16675834 | HEXAGON BOLT HEXAGON BOLT | 4 |
