SENSORS
C13ENTX20.00A005 — CURSOR 13 - TIER 3

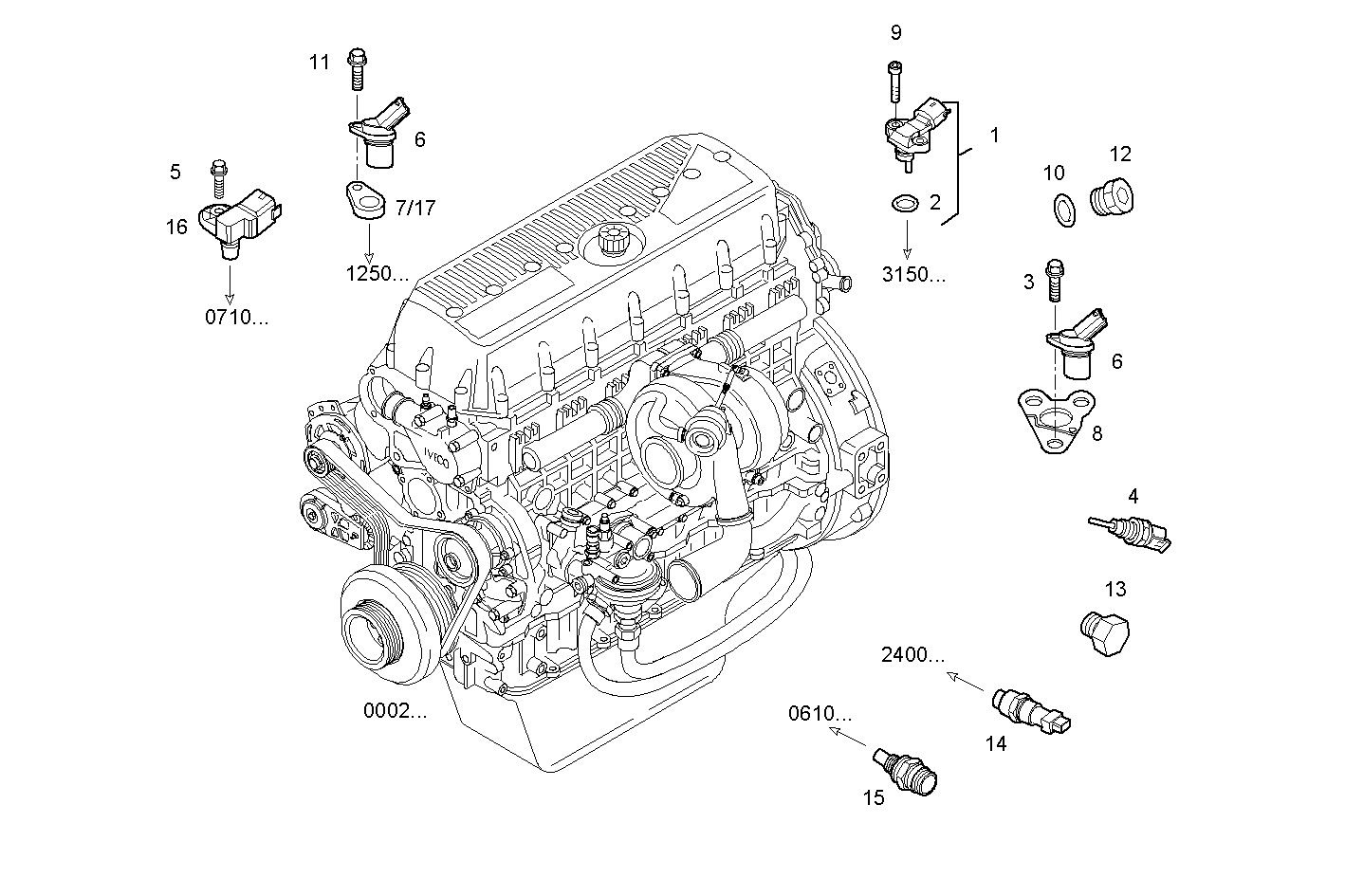

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4890193 | SENSOR SENSOR | 1 | |
| 2 | 4895477 | O-RING O-RING | 1 | |
| 3 | 16688925 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 4 | 504109620 | SENSOR SENSOR | 1 | |
| 5 | 16597225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 504096645 | SENSOR SENSOR | 2 | |
| 7 | 504113543 | SPACING BAR SPACING BAR | 1 | |
| 8 | 504113483 | SPACING BAR SPACING BAR | 1 | |
| 9 | 4899110 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 16689324 | SCREW SCREW | 1 | |
| 12 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 13 | 504167389 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 500377533 | SENSOR SENSOR | 1 | |
| 15 | 500382599 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 3 | |
| 16 | 504073323 | SENSOR SENSOR | 1 | |
| 17 | 504163664 | CONNECTING PLATE CONNECTING PLATE | 1 |
