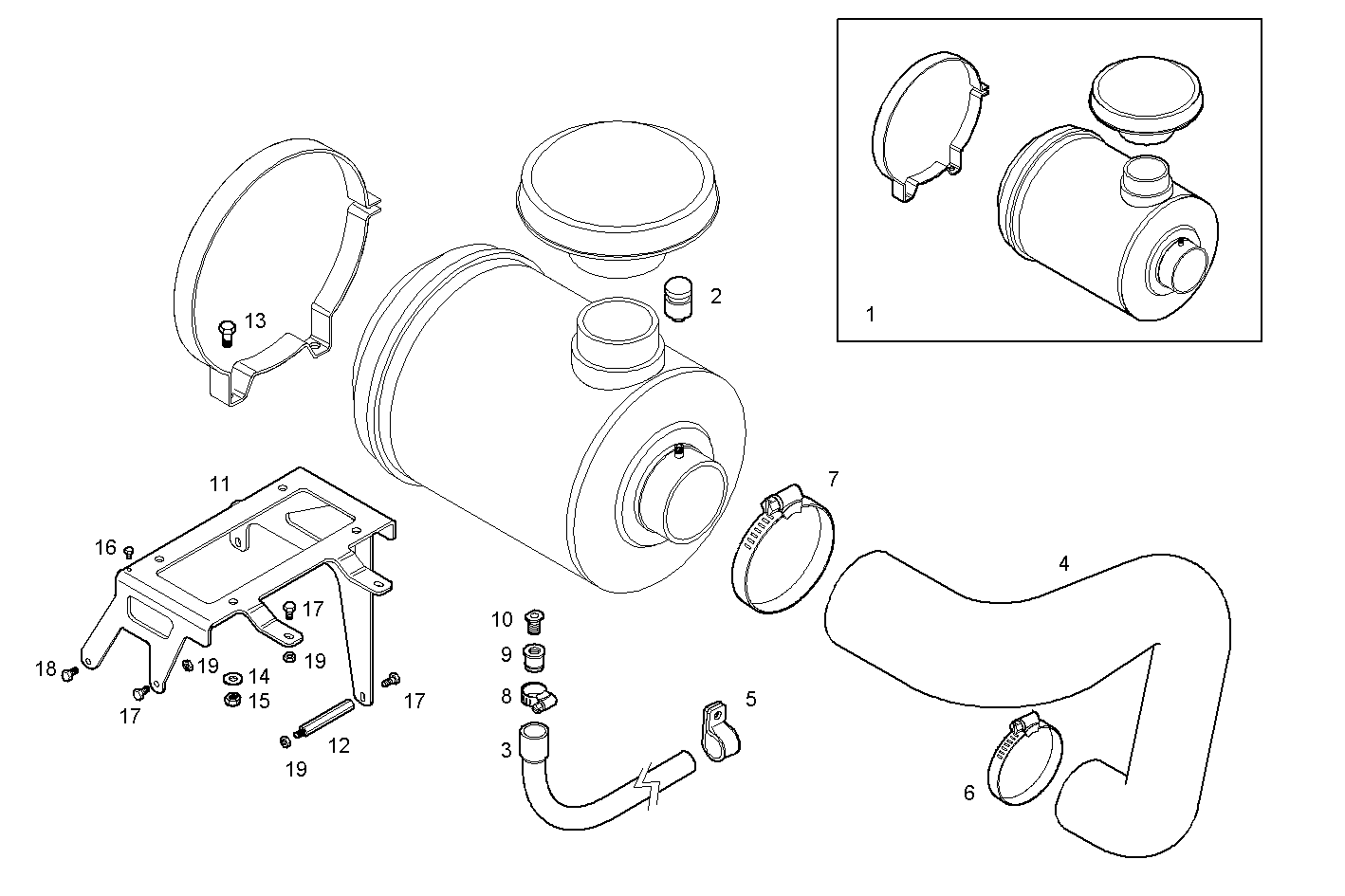

AIR CLEANER
C13ENTX20.00A800 — CURSOR 13 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037875 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 3 | 8044654 | FILTER HOSE FILTER HOSE | 1 | |
| 4 | 8042013 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 17311301 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 17765591 | CLIP CLIP | 1 | |
| 7 | 17766393 | CLIP CLIP | 1 | |
| 8 | 17764694 | CLIP CLIP | 2 | |
| 9 | 8015133 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8015315 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 8041909 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 12 | 8041916 | SPACING BAR SPACING BAR | 1 | |
| 13 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 17091074 | WASHER WASHER | 4 | |
| 15 | 17038425 | HEXAGON NUT HEXAGON NUT | 4 | |
| 16 | 16603425 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 16605424 | SCREW SCREW | 4 | |
| 18 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 17037921 | NUT NUT | 6 |
