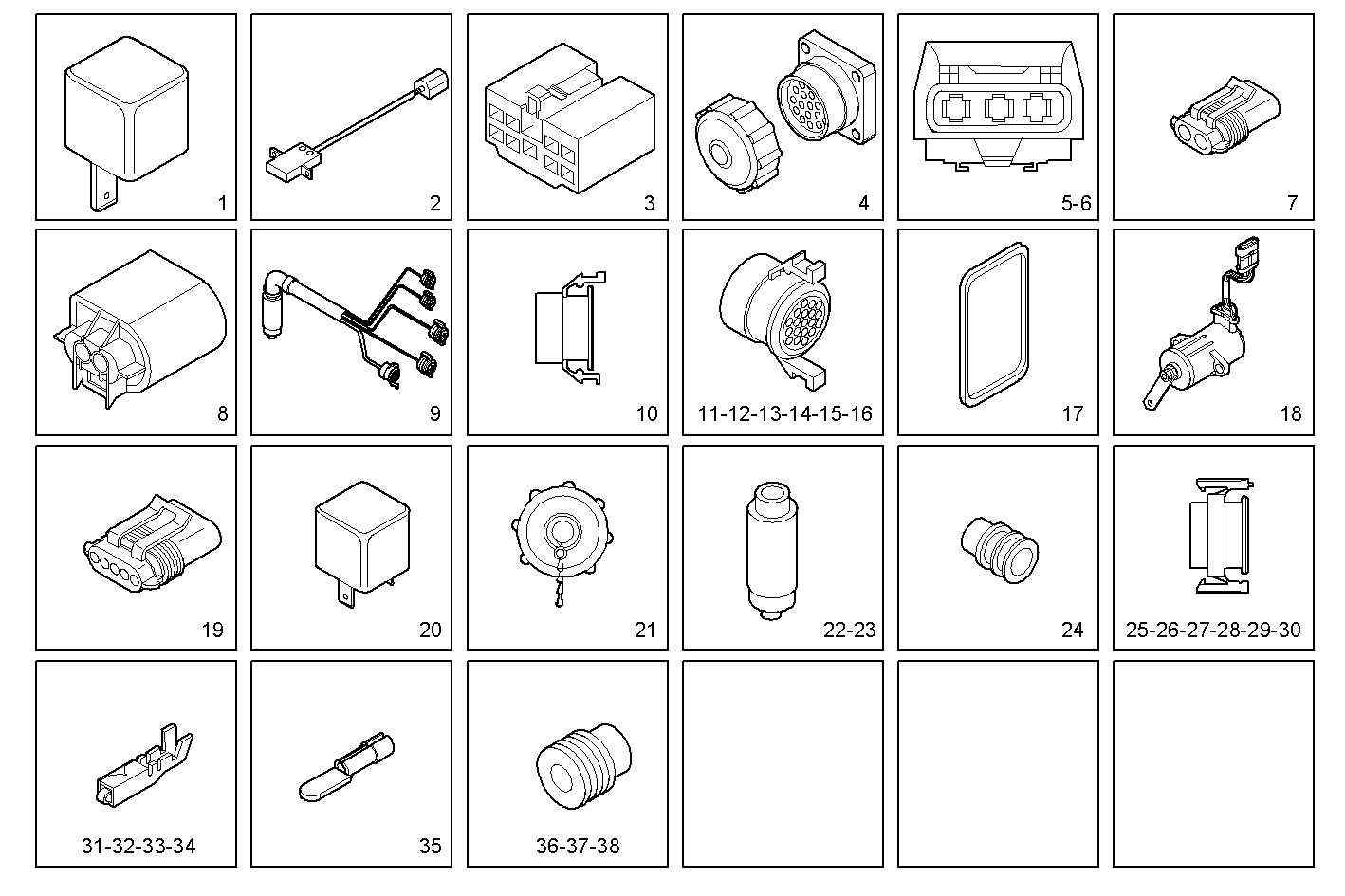

ACCESSORIES
C13ENTX20.00A802 — CURSOR 13 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504040825 | DIODE PLATE DIODE PLATE | 1 | |
| 2 | 99464594 | SWITCH SWITCH | 1 | |
| 3 | 8031431 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 4 | 8034787 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 5 | 99430234 | PLUG COUPLING PLUG COUPLING | 1 | |
| 6 | 8030575 | CONNECTION CONNECTION | 1 | |
| 7 | 8030574 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 8 | 8030896 | CONNECTION CONNECTION | 1 | |
| 9 | 8042255 | SET OF WIRING SET OF WIRING | 1 | |
| 10 | 8035244 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 11 | 8032282 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 12 | 8032281 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 13 | 8032279 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 14 | 8032280 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 15 | 4859428 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 16 | 4859429 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 17 | 4835259 | GASKET GASKET | 5 | |
| 18 | 500388702 | TRANSMITTER TRANSMITTER | 1 | |
| 19 | 8031313 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 20 | 500362250 | RELAY RELAY | 1 | |
| 21 | 8033302 | CAP CAP | 1 | |
| 22 | 12332087 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 23 | 12267380 | CONNECTION CONNECTION | 1 | |
| 24 | 12332885 | GASKET GASKET | 5 | |
| 25 | 4859433 | CONNECTION CONNECTION | 1 | |
| 26 | 4859431 | CONNECTION CONNECTION | 1 | |
| 27 | 12331387 | CONNECTION CONNECTION | 1 | |
| 28 | 4859418 | CONNECTION CONNECTION | 1 | |
| 29 | 4859419 | CONNECTION CONNECTION | 1 | |
| 30 | 4859430 | CONNECTION CONNECTION | 1 | |
| 31 | 98435372 | TERMINAL TERMINAL | 2 | |
| 32 | 12331654 | TERMINAL TERMINAL | 5 | |
| 33 | 12309290 | TERMINAL TERMINAL | 5 | |
| 34 | 99462549 | TERMINAL TERMINAL | 19 | |
| 35 | 4863438 | TERMINAL TERMINAL | 115 | |
| 36 | 4861937 | RUBBER BUSH RUBBER BUSH | 115 | |
| 37 | 4861936 | RUBBER BUSH RUBBER BUSH | 2 | |
| 38 | 98420215 | PLUG PLUG | 2 |
