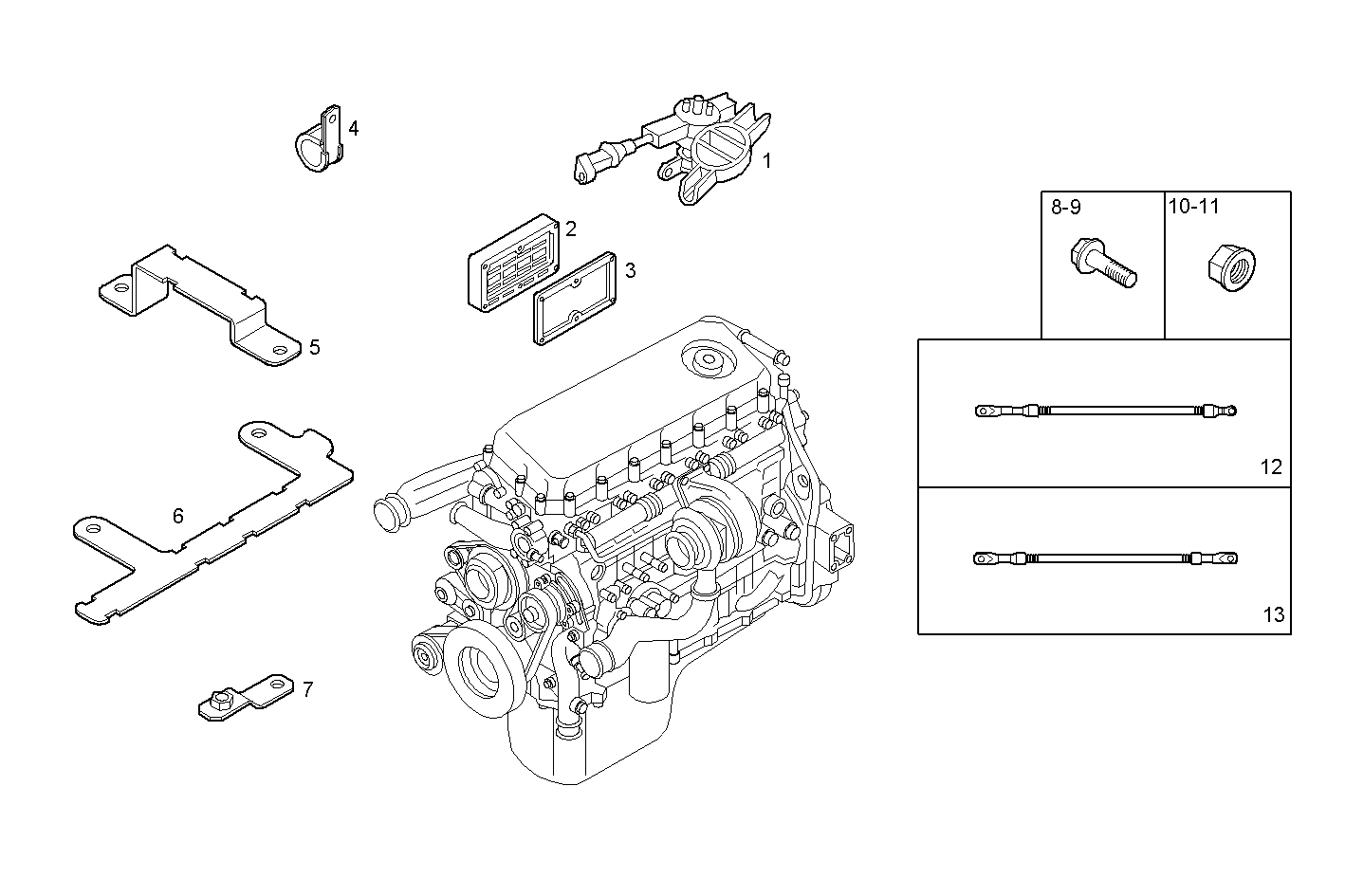

THERMO-STARTER
C13ENTX60.00 — CURSOR 13 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99449300 | RELAY RELAY | 1 | |
| 2 | 99437042 | RESISTOR RESISTOR | 1 | |
| 3 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 10450990 | PIPE CLIP PIPE CLIP | 1 | |
| 5 | 504143982 | SUPPORT SUPPORT | 1 | |
| 6 | 504143981 | SUPPORT SUPPORT | 1 | |
| 7 | 504143387 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 9 | 16585625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17044625 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 16750225 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 504119997 | WIRE/CABLE WIRE/CABLE | 2 | |
| 13 | 504206835 | WIRE/CABLE WIRE/CABLE | 1 |
