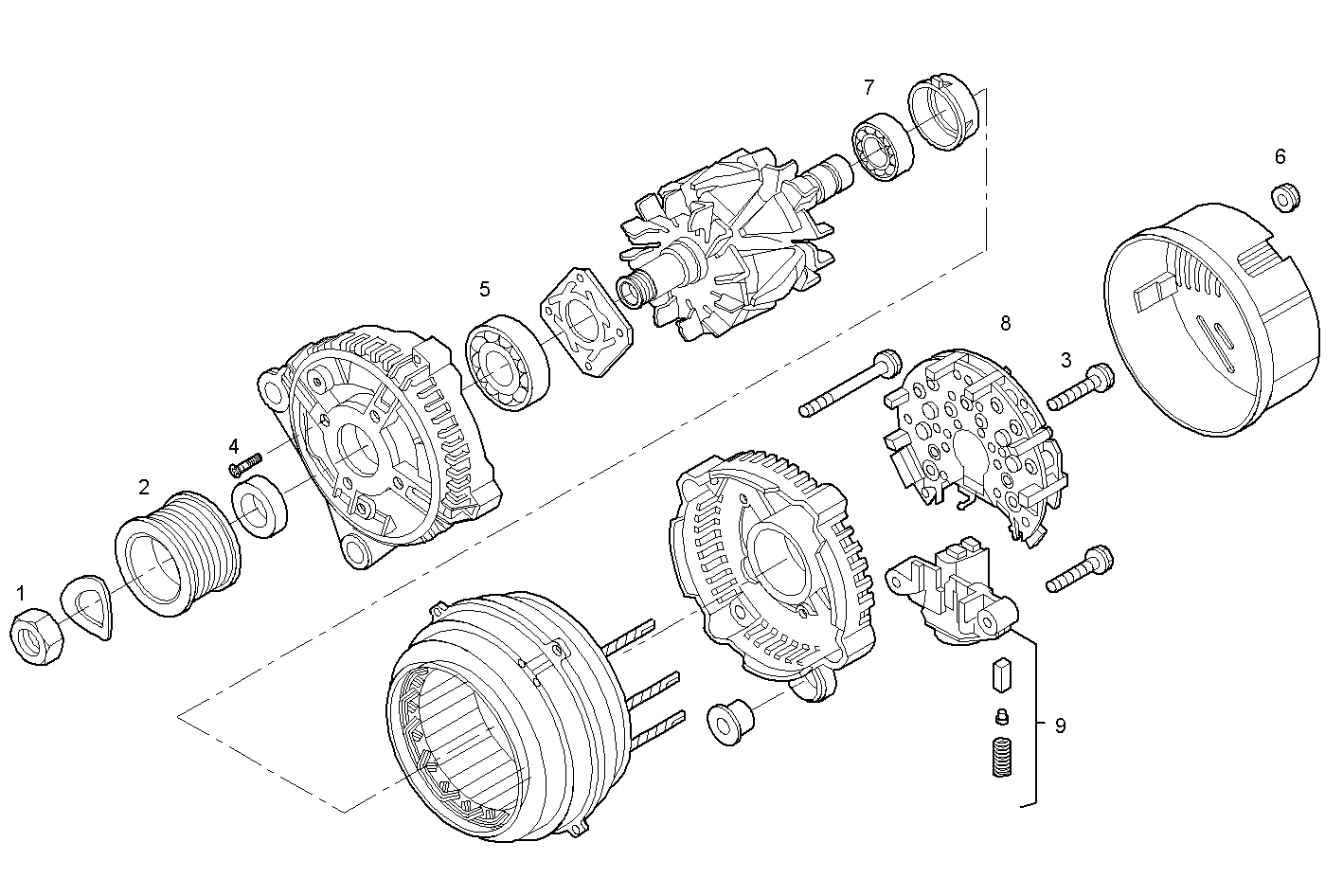

GENERATOR (COMPONENTS)
F3BE9687A*E001 — CURSOR 13 - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 42548115 | NUT NUT | 1 | |
| 2 | 42548125 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 3 | 42548117 | SCREW SCREW | 3 | |
| 4 | 42548118 | C'SUNK SCREW C'SUNK SCREW | 4 | |
| 5 | 42548119 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 6 | 42548123 | NUT NUT | 1 | |
| 7 | 42548120 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 8 | 42548121 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 9 | 42548122 | CARBON BRUSHES CARBON BRUSHES | 1 | |
| 10 | 42548124 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 |
