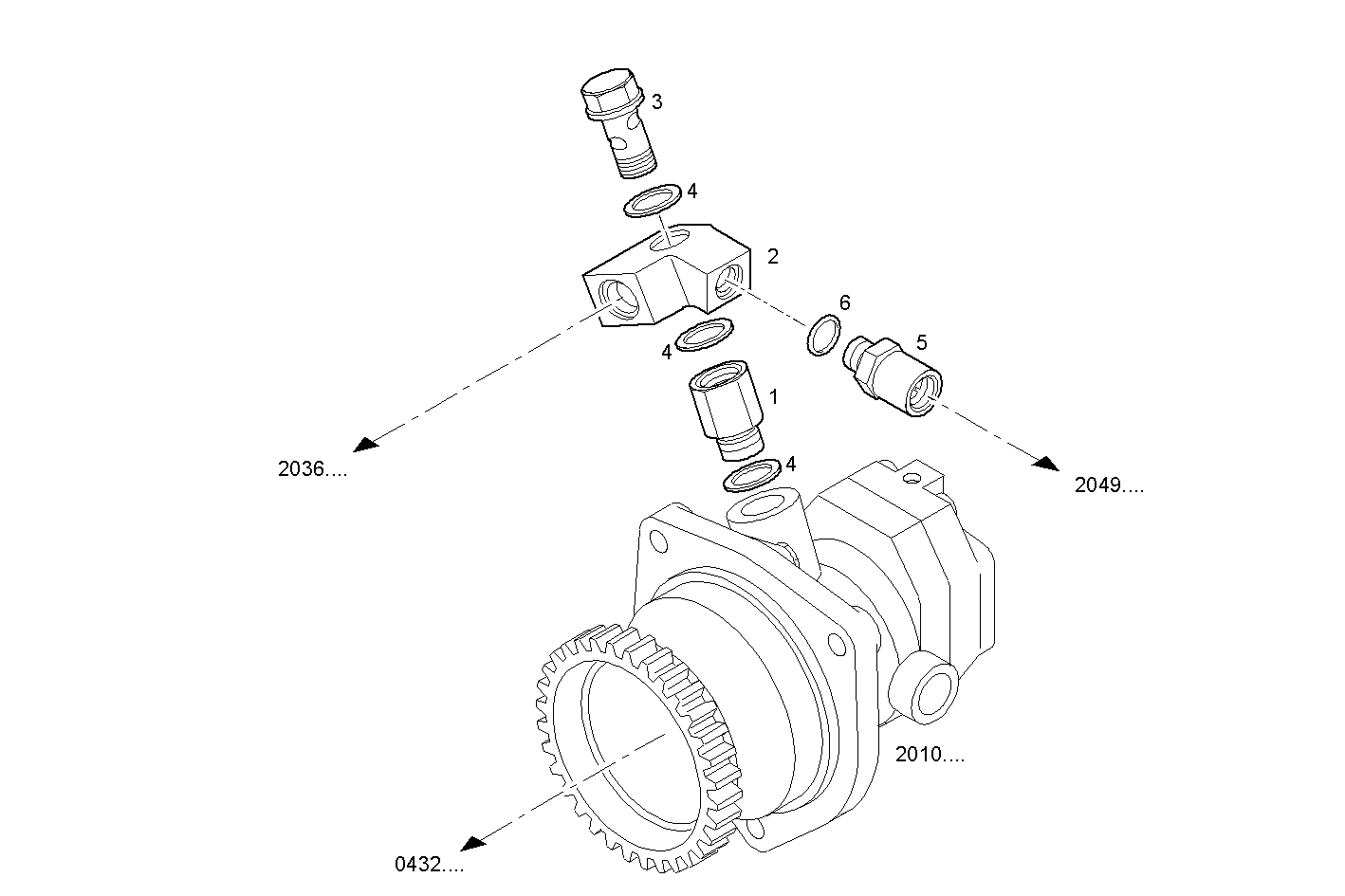

EXCESS PRESSURE RELIEF VALVE
C13ENAM19.00 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041722 | THREADED UNION THREADED UNION | 1 | |
| 2 | 500342081 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 504087373 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 98474309 | WASHER WASHER | 3 | |
| 5 | 500328251 | VALVE VALVE | 1 | |
| 6 | 99489018 | SEAL GASKET SEAL GASKET | 1 |
