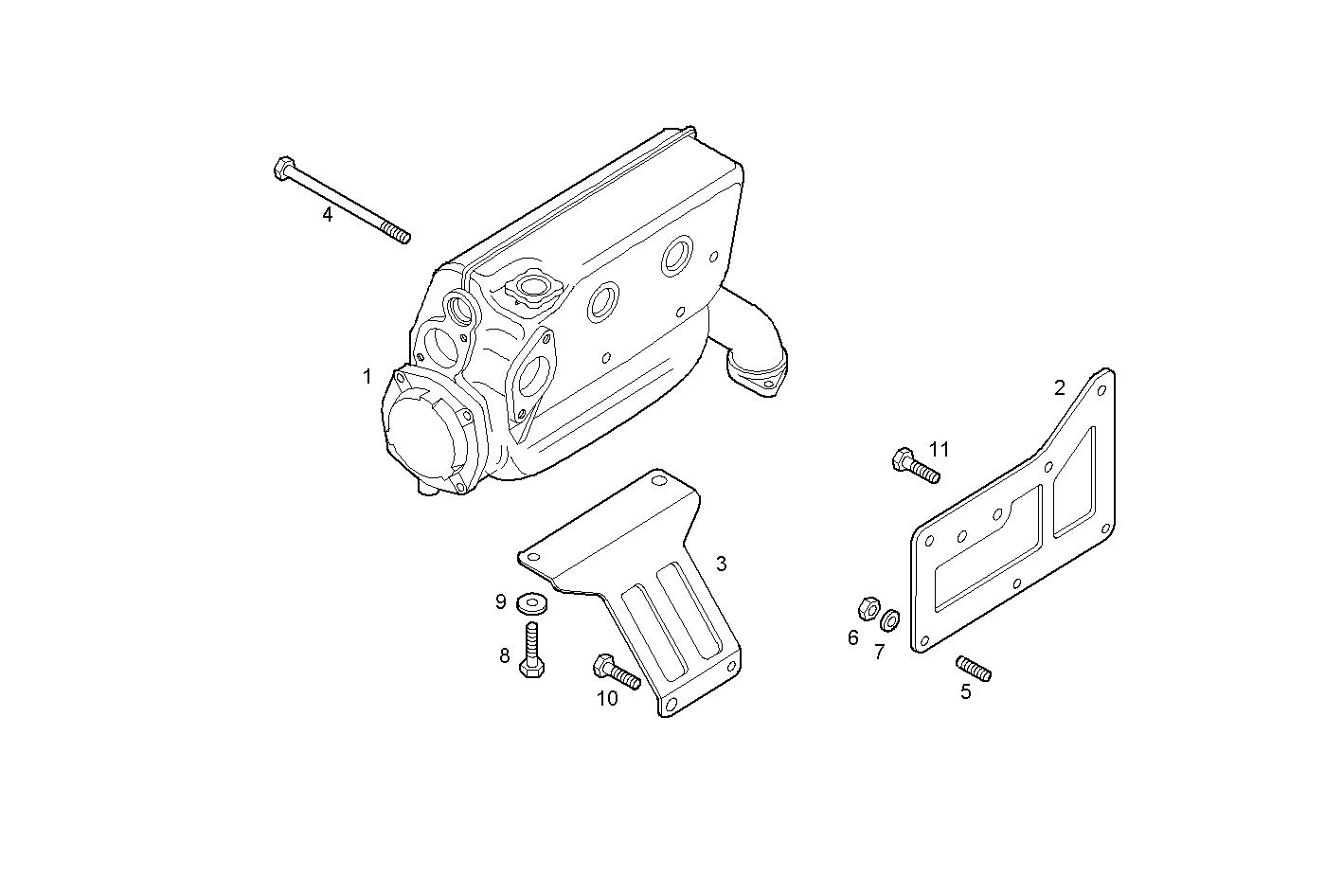

FRESH WATER - SEA WATER HEAT EXCHANGER
C13ENAM19.00 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036972 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8037511 | RETAINER RETAINER | 1 | |
| 3 | 8037514 | RETAINER RETAINER | 1 | |
| 4 | 8037478 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 8039231 | STUD STUD | 3 | |
| 6 | 17044721 | HEXAGON NUT HEXAGON NUT | 3 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 16592724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 16586025 | HEXAGON BOLT HEXAGON BOLT | 2 |
